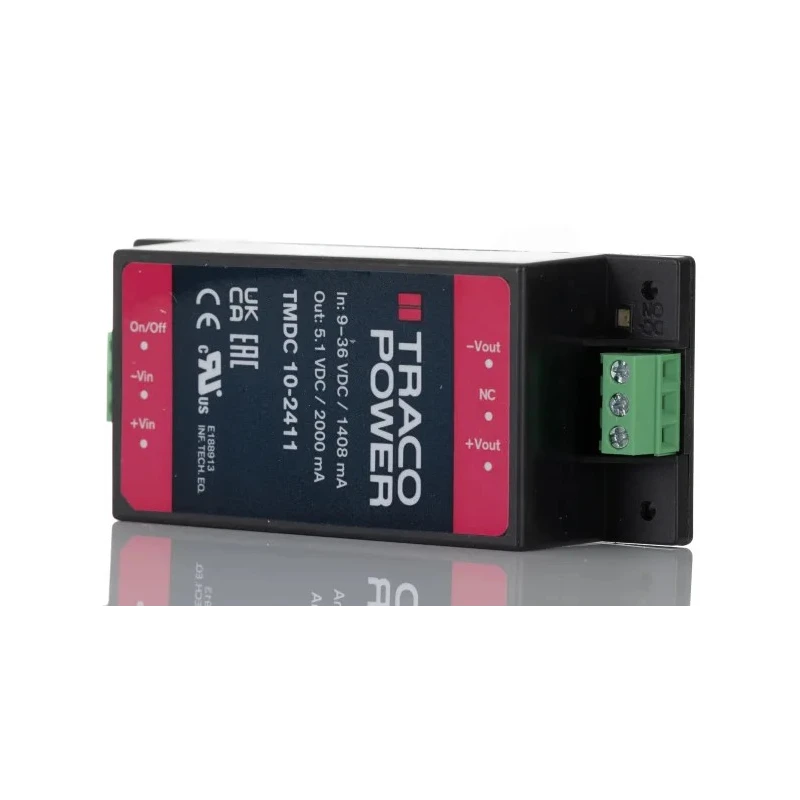

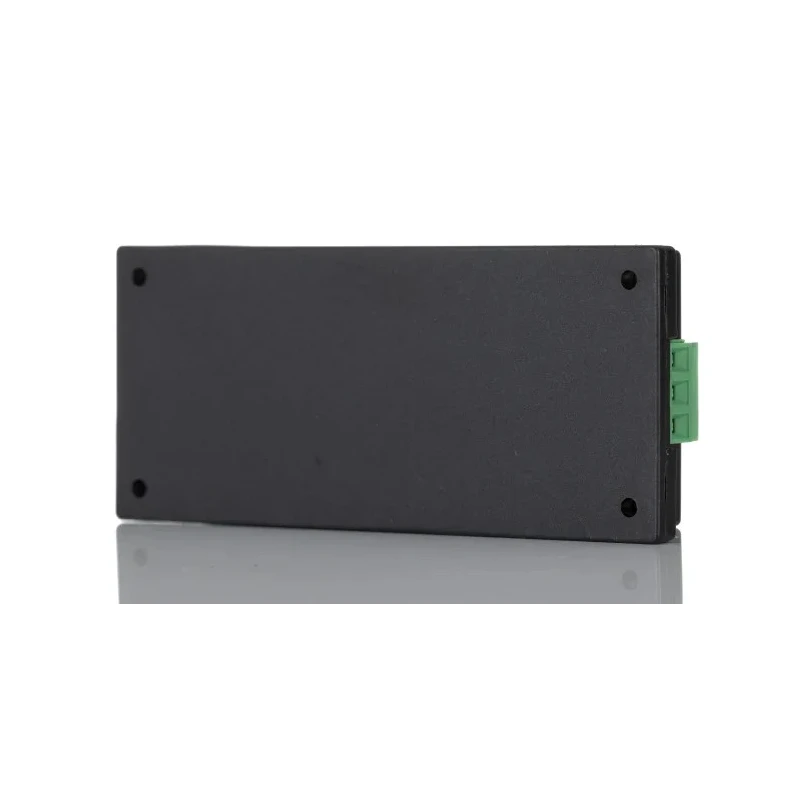

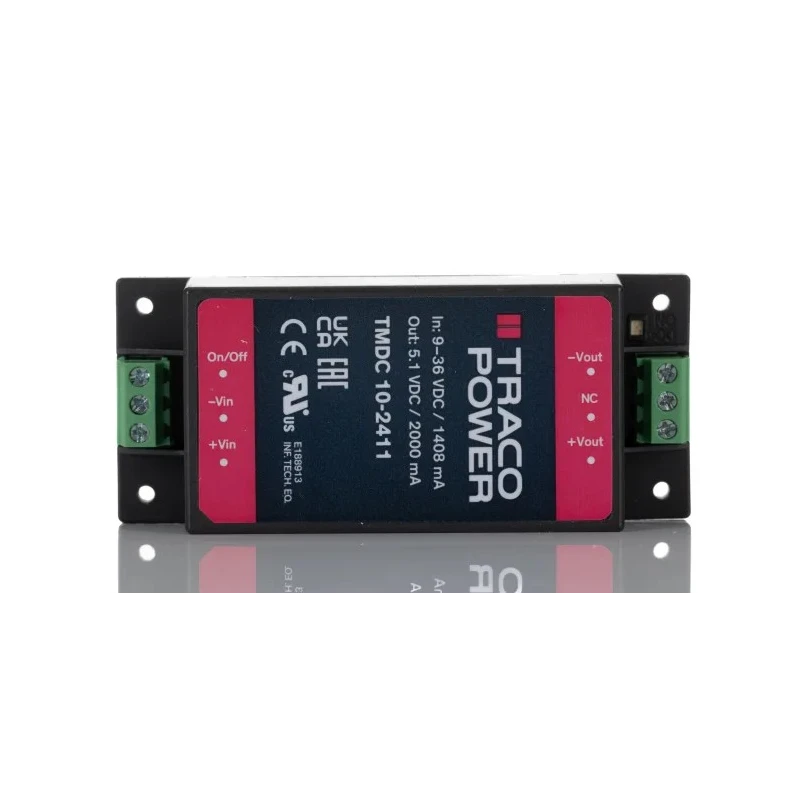

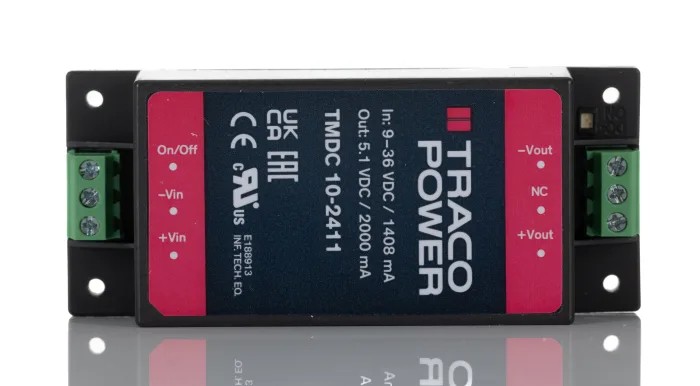

TRACOPOWER DC/DC Converter 5.1V Output, 9 - 36V Input, Chassis Mount, 10W, High EMC Protection TMDC 10-2411
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | TRACOPOWER |
| Efficiency | 84% |
| Length | 79mm |
| Model | TMDC 10-2411 |
| Depth | 22mm |
| Width | 34mm |
| Mount Type | Chassis Mount |
| Series | TMDC 10 |
| Maximum Operating Temperature | 80°C |
| Package Type | Encapsulated |
| Minimum Operating Temperature | -40°C |
| MTBF | 4100000h |
| Number of outputs | 1 |
| Maximum Output Power | 10W |
| Maximum Input Voltage | 36V dc |
| Output Voltage | 5.1 V |
| Minimum Input Voltage | 9V |
| Number of Pins | 6 |
| Output Voltage 1 | 5.1V dc |
| Output Current 1 | 2mA |
| Isolation Voltage | 3kV dc |
| Input Ratio | 1:6 |
| Input Ratio1 | 6 |
| Harsh industrial EMC capabilities | Integrated filters for emission & immunity |
| The wide 4 | 1 input range of this DC-DC converter means you can feed in voltages between 9 and 36V DC, giving you connection versatility |
Key Features
- Regulated 5.1V DC output with 2A max output current for reliable power delivery.
- Chassis mount encapsulated design ensures durability and environmental protection.
- High EMC immunity with integrated filters for emission and immunity compliance.
- 3kV DC isolation voltage for enhanced electrical safety and circuit protection.
- Remote On/Off and DC-OK LED features facilitate easy control and status monitoring.
- Overload, undervoltage, and short-circuit protection safeguards devices.
- Wide operating temperature range from -40°C to +80°C without derating.
- Efficiency of up to 84% for energy-saving operation.
Product Description
The TRACOPOWER TMDC 10-2411 DC/DC Converter provides efficient and reliable power conversion for a wide range of industrial applications. It accepts a broad input voltage range from 9V to 36V, making it compatible with various DC power sources and facilitating versatile use within control panels, automation systems, and industrial computing.
Delivering a regulated 5.1V DC output at up to 2A, this converter is engineered for stable performance and robust protection of electronics. Its fully encapsulated chassis mount structure ensures that it can withstand demanding environments, offering protection against dust, dirt, and moisture. The device also features pre-drilled mounting holes for straightforward surface mounting.
To further support reliability and industrial suitability, the TMDC 10-2411 integrates advanced EMC filters, providing immunity against both conducted and radiated interference. These filters ensure compatibility with sensitive electronics and comply with harsh industrial EMC requirements.
Electrical safety is ensured through a 3kV DC isolation voltage, remote On/Off capabilities for automated control, and a DC-OK LED for instant power status indication. Built-in protection features include automatic overload, undervoltage, and short-circuit protection, safeguarding connected equipment from electrical faults.
With an operating temperature range from -40°C up to +80°C, the converter is suitable for installations across challenging environments, while maintaining stable performance without the need for output derating. The 84% efficiency rating helps to optimize energy consumption, particularly in continuous-use systems.
The TMDC 10-2411 is ideal for applications such as process monitoring, motion control, safety devices, industrial automation, and communication systems, where EMC immunity, wide input voltage compatibility, and reliable output regulation are critical requirements.
Browse the full range of DC-DC Converters on EnvMart or explore TRACOPOWER solutions for industrial power conversion needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model accepts a broad input voltage range from 9V to 36V DC, allowing compatibility with various DC power sources.
The TMDC 10-2411 provides a maximum output power of 10W, delivering a regulated output of 5.1V DC at up to 2A.
This unit has dimensions of 79mm in length, 34mm in width, and 22mm in depth, making it suitable for chassis mounting.
The TMDC 10-2411 features a chassis mount design with pre-drilled mounting holes for straightforward installation.
It has an efficiency rating of up to 84%, optimizing energy consumption during operation.
The operating temperature range for the TMDC 10-2411 is from -40°C to +80°C, allowing stable performance in challenging environments.
Yes, this model includes overload, undervoltage, and short-circuit protection to safeguard connected devices from electrical faults.
The isolation voltage for this converter is 3kV DC, enhancing electrical safety and circuit protection.
It features integrated filters for emission and immunity, providing high EMC immunity suitable for harsh industrial environments.
This model has one output, delivering a regulated output voltage of 5.1V DC.
The mean time between failures (MTBF) for this unit is rated at 4,100,000 hours, indicating its reliability in operation.
It is ideal for applications such as process monitoring, motion control, safety devices, industrial automation, and communication systems.
