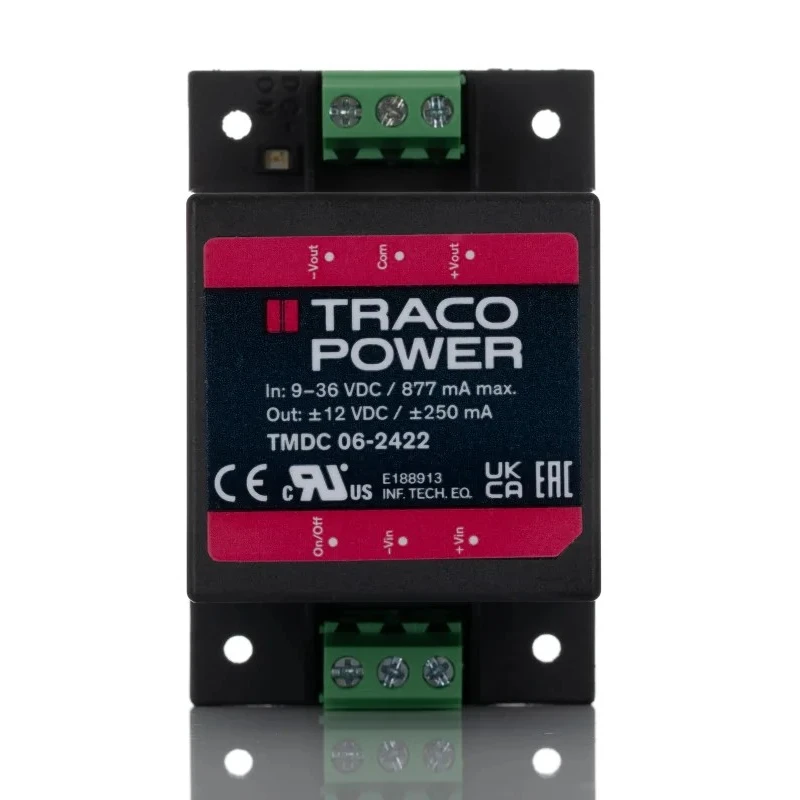

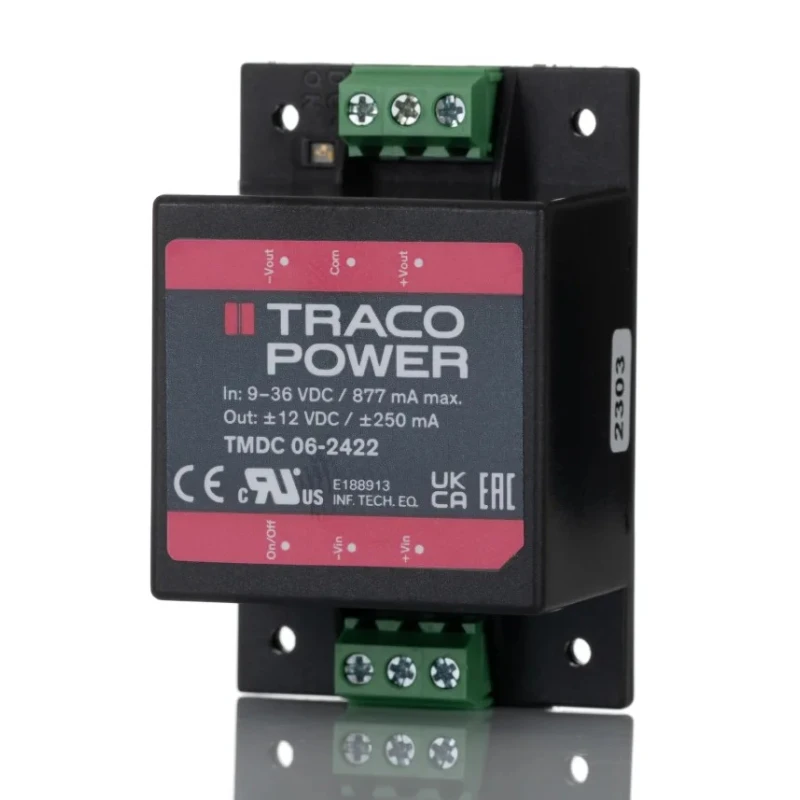

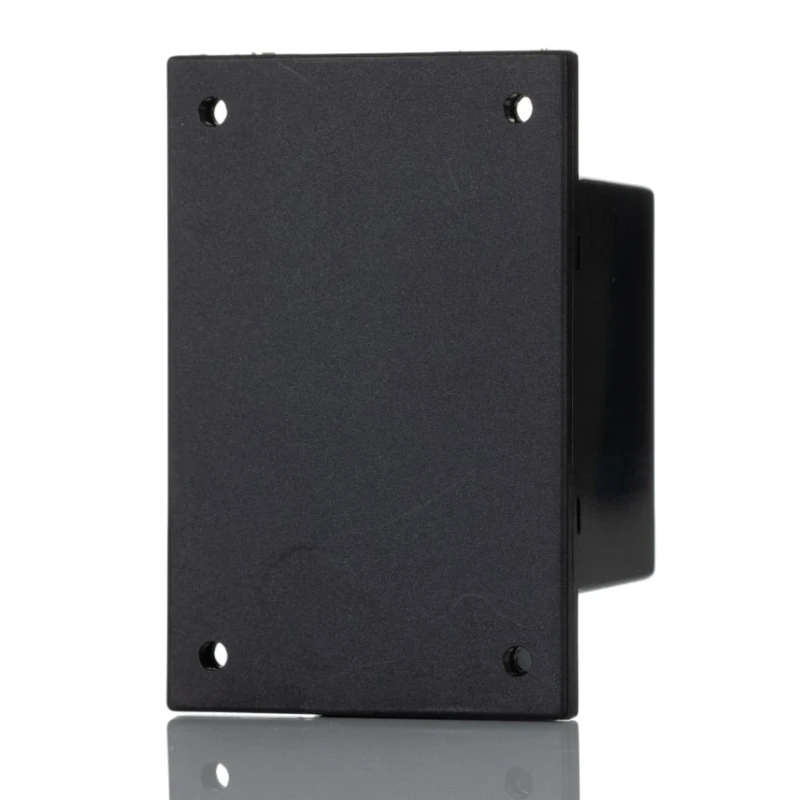

TRACOPOWER DC/DC Converter 12V/36V Input, Dual Output, Chassis Mount, 6W, TMDC 06-2422

The TRACOPOWER TMDC 06-2422 DC/DC Converter is engineered for demanding industrial, automation, and electronics manufacturing environments. Featuring a dual-output configuration, this module supplies both 12V DC and -12V DC outputs, allowing for flexible voltage distribution across multiple circuits or loads.

Its wide input voltage range of 9V to 36V empowers the converter to adapt to diverse power sources, from battery systems to regulated industrial supplies. With a maximum output current of 250 mA per channel and a total output power of 6W, the TMDC 06-2422 is well-suited to powering device subsystems, sensors, and microcontrollers in complex electronic assemblies.

The encapsulated package and chassis mount form factor streamline mechanical integration and provide enhanced durability, while an isolation voltage of 3 kV DC ensures protection from surges and transient faults. The converter’s remote on/off capability supports control logic and efficiency in multi-unit installations. An integrated EMI filter minimizes electrical noise, safeguarding sensitive equipment and signal integrity.

Operational reliability is assured through a high MTBF rating of 4,170,000 hours. The robust design supports use across extreme temperatures, from -40°C to 80°C, making the TMDC 06-2422 suitable for field deployment, automated testing setups, or advanced production lines.

Typical industrial use cases include device chargers, industrial automation, instrumentation, and any system requiring precise and isolated DC supply. The dual outputs allow simultaneous powering of complementary subsystems, streamlining design and reducing wiring complexity. Safety is enhanced with short-circuit, overload, and undervoltage protections, and a load status LED indicator simplifies monitoring and diagnostics.

Dual-output (12V/-12V DC) for flexible circuit powering. Wide input voltage (9V - 36V DC) adapts to numerous supply sources. 6W total power, 250mA channel current for steady subsystem operation. Chassis mount, encapsulated design simplifies mechanical integration.

Highly reliable with MTBF 4,170,000 hours and high isolation voltage. Temperature range suits harsh industrial settings and outdoor use. EMI filter reduces system electrical noise, supporting signal-sensitive devices. Remote on/off feature and LED status for efficient management.

Industrial automation, device chargers, and advanced electronics manufacturing applications. Explore more DC-DC Converters and industrial power supplies from TRACOPOWER and browse related electronic components to optimise your systems on EnvMart.
