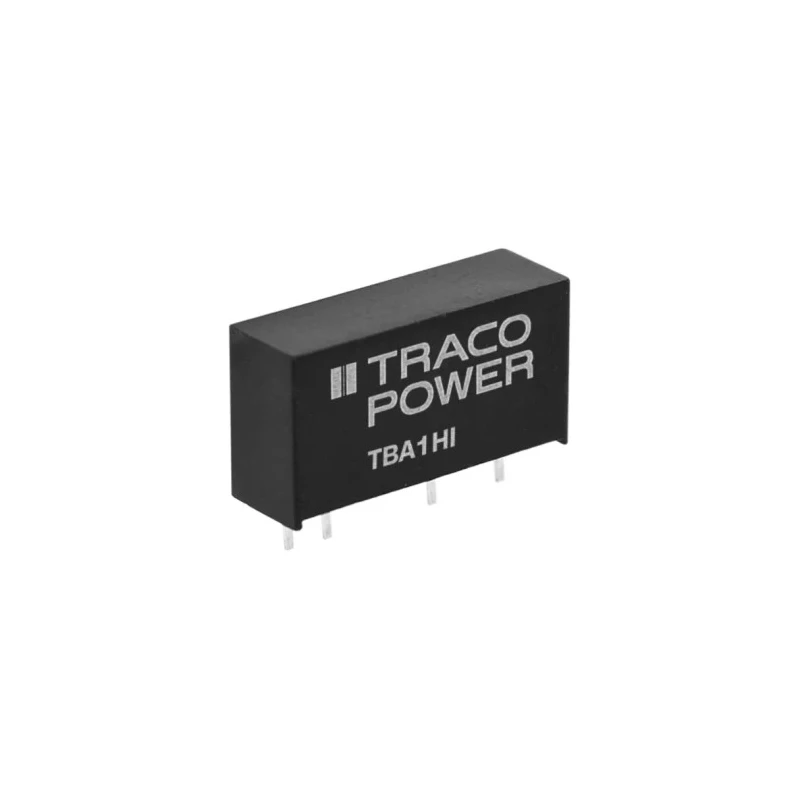

TRACOPOWER DC/DC Converter 15V ±15V Dual Output, PCB Mount, , 26.4V dc Max Input, 21.6V dc Min Input, 1W, 33mA TBA 1-2423HI

TRACOPOWER TBA 1-2423HI is a compact DC/DC converter designed for demanding electronic applications requiring reliable dual-output power and high isolation. Featuring PCB mounting in a SIP-7 package, it accepts DC input voltages between 21.6V and 26.4V, converting this to two isolated outputs of ±15V dc at up to 33mA. This unit delivers a maximum output power of 1W, making it well-suited to low-power bipolar supply requirements in complex electronic circuits.

The converter provides a high isolation voltage of 3kV dc, ensuring safe separation between input and output for sensitive devices such as instrumentation, IGBT drivers, transistors and diodes. Its industry-standard SIP-7 package measures 19.5mm length, 6mm width and 10mm height, optimizing board space and integration in PCB layouts.

Short-circuit protection is included to minimize potential damage from electrical faults, while robust efficiency of 82% ensures minimal energy loss and high-performance operation. The wide operating temperature range of -40°C to 85°C makes this converter suitable for harsh industrial environments and mission-critical applications requiring stability at temperature extremes.

With a lightweight profile around 2.3 grams, the TBA 1-2423HI is ideal for portable electronic systems, control panels, telecommunications equipment, instrumentation devices and electronics manufacturing workflows, where space, reliability and power efficiency are paramount.

Applicable use cases include industrial control systems, telecommunication networks, laboratory instrumentation and sophisticated electronics manufacturing where dual-output DC supplies are required. The SIP-7 mounting allows straightforward installation onto standard PCBs, benefiting OEMs and engineers in scalable design projects.

Accepts a DC input range from 21.6V to 26.4V for flexibility with various power sources. Dual outputs provide +15V and -15V dc at up to 33mA for bipolar supply needs. High isolation voltage ensures protection for sensitive circuits.

Continuous short-circuit protection maintains long-term reliability. Efficiency of 82% for energy-conscious electronic designs. Wide operating temperature supports use in harsh environments. SIP-7 package offers compactness for PCB integration.
