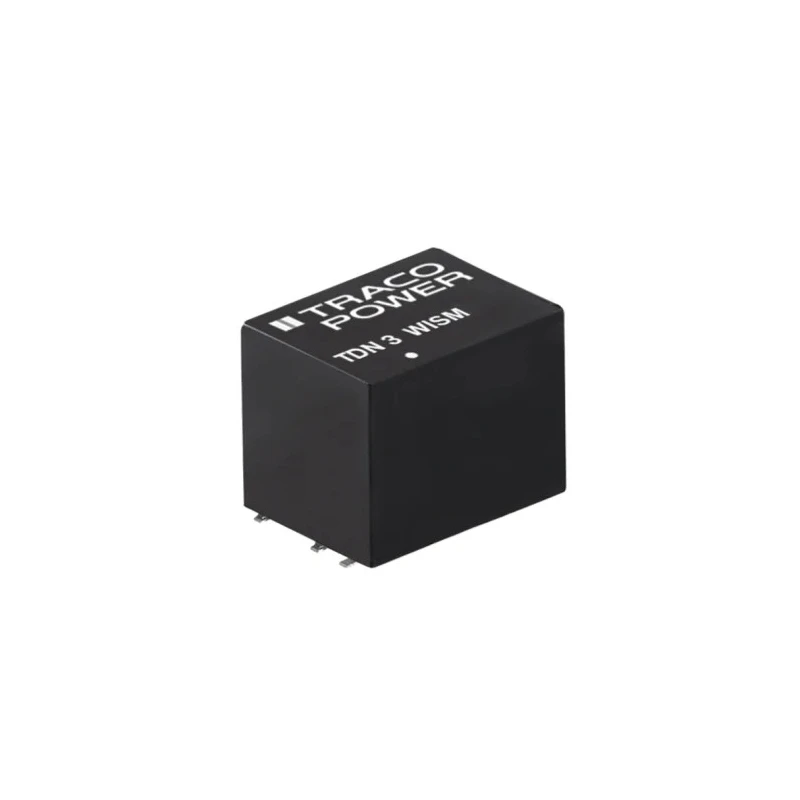

TRACOPOWER DC/DC Converter 24V 125mA 36V Input 9V Input 3W Surface Mount -40°C to 70°C TDN 3-2415WISM
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TDN 3WISM DC/DC Converter, 24V/ 125 mA |
| Brand | TRACOPOWER |
| Efficiency | 82% |
| Length | 13.2mm |
| Model | TDN 3-2415WISM |
| Depth | 9.9mm |
| Width | 9.1mm |
| Mount Type | Surface |
| Series | TDN 3WISM |
| Maximum Operating Temperature | 70°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| MTBF | 5630000h |
| Number of outputs | 1 |
| Maximum Output Power | 3W |
| Maximum Input Voltage | 36V |
| Minimum Input Voltage | 9V |
| Number of Pins | 7 |
| Output Voltage 1 | 24V |
| Output Current 1 | 125mA |
| Isolation Voltage | 1.6kV |
| Input Ratio | 1:6 |
| Input Ratio1 | 6 |
Key Features
- Compact surface mount construction saves PCB space.
- Wide 9V to 36V input voltage range for flexible integration.
- Delivers regulated 24V DC output up to 125mA (3W max).
- High 1.6kV isolation for reliable and safe operation.
- Operates in a wide ambient temperature range from -40°C to 70°C.
- Offers high efficiency up to 82% for energy-sensitive applications.
- Short circuit protection ensures system durability.
- Remote On/Off control is supported for automated setups.
Product Description
The TRACOPOWER TDN 3-2415WISM is an ultra compact, high-performance DC/DC converter designed for demanding industrial, laboratory, and commercial electronics applications. Featuring a PCB-mountable surface mount package (13.2 x 9.1 x 10.2 mm), it offers a fully regulated 24V DC output at 125mA with up to 3W maximum continuous output power.
This converter accepts a wide input voltage range of 9V to 36V, allowing flexibility in supply systems and supporting 1:4 input ratio operation. The 1.6kV input-output isolation voltage ensures safety and protection in critical circuits, while short-circuit protection and remote On/Off capability provide further safeguards in automated environments.
With an efficiency rating of up to 82%, the TDN 3-2415WISM minimizes energy waste. It is engineered for reliable performance in challenging conditions, supporting an operational temperature range from -40°C to +70°C with no derating. Its high MTBF of over 5.6 million hours underscores its long service life and suitability for mission-critical systems.
The robust SMD design makes this module ideal for compact power conversion in embedded systems, process control, measurement, automation, communications, and industrial instrumentation. The 7-pin surface mount form ensures efficient integration into modern, high-density PCBs.
Key features include a regulated output, I/O isolation, extensive safety mechanisms, and suitability for high-reliability industrial power supplies. Applications span the electronics, automation, communications, measurement, and control industries, where high isolation and stability are essential.
This product is manufactured in Taiwan and comes from the established TDN 3WISM series, known for reliable, compact DC-DC power conversion. Browse more TRACOPOWER converters and industrial power supply products in the Electronics & Electricals > Converters > DC Converter category on EnvMart for additional solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is 9V to 36V, allowing for flexible integration into various supply systems.
This unit delivers a maximum output power of 3W with a regulated output voltage of 24V DC at 125mA.
It has an efficiency rating of up to 82%, which helps minimize energy waste in applications.
The dimensions of this model are 13.2mm in length, 9.1mm in width, and 9.9mm in depth.
The isolation voltage for this converter is 1.6kV, ensuring safety and protection in critical circuits.
It operates effectively in a wide ambient temperature range from -40°C to 70°C without derating.
This model has one output, providing a regulated 24V DC output.
It features a surface mount design, making it suitable for compact PCB applications.
It includes short-circuit protection and supports remote On/Off control for enhanced safety in automated setups.
The MTBF for this unit is over 5.6 million hours, indicating a long service life for reliable applications.
This converter is suitable for use in industrial, laboratory, and commercial electronics applications, particularly where high isolation and stability are essential.
This product is manufactured in Taiwan, ensuring adherence to quality standards in its production.
