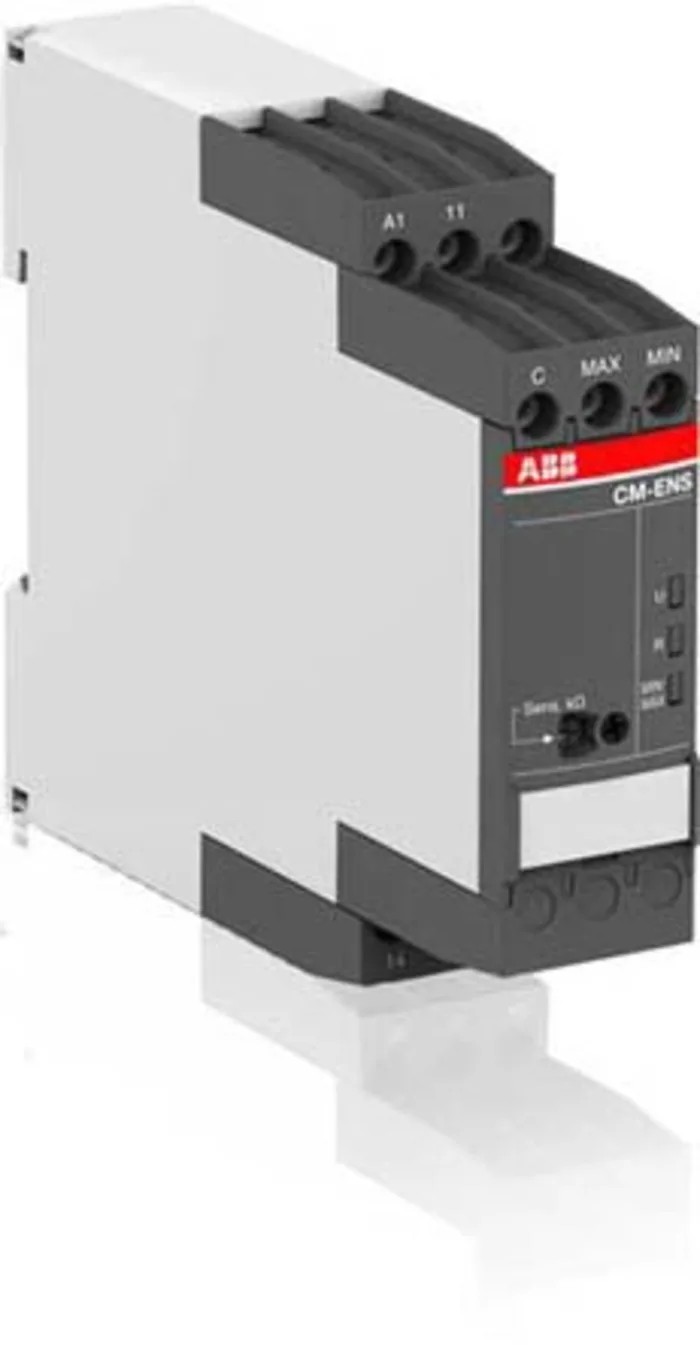

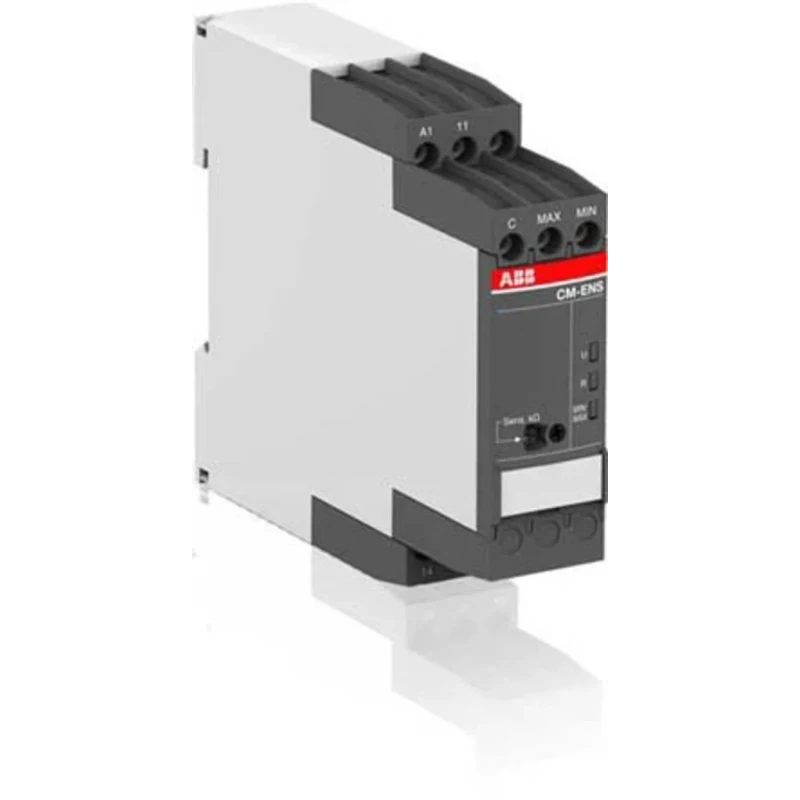

ABB Liquid Level Relay DIN Rail Mount 1-Input 240V AC/DC SPDT CM-ENS Series 1SVR730850R0100 CM-ENS.11S

Free Delivery in India | Lowest Global Shipping Charges

ABB Liquid Level Relay DIN Rail Mount 1-Input 240V AC/DC SPDT CM-ENS Series 1SVR730850R0100 CM-ENS.11S



Category Level Controllers Brand ABB Condition New

Specifications

Country of Origin	Germany
Voltage	Input 240V ac/dc-Rated SPDT Relay RS Stock No
Brand	ABB
Model	1SVR730850R0100 CM-ENS.11S
SENSITIVITY	100kΩ
IP Rating	IP20, IP50
Mount Type	DIN Rail
Overall Length	113.4mm
Current Rating	11mA
Number of inputs	1
Output type	SPDT Relay
Series	CM-ENS
Overall Width	22.5mm
Input Type	Voltage
Maximum Operating Temperature	60°C
Minimum Operating Temperature	-25°C
Number of outputs	1
Terminal type	Screw
Maximum Supply Voltage	240V ac/dc
Overall Depth	113.4mm

Key Features

Designed for DIN rail mounting, enabling quick and tool-free installation.
Supports a wide supply voltage range up to 240V AC or DC for flexible usage.
Single SPDT relay output with adjustable sensitivity between 5 and 100kΩ for versatile operation.
Compact housing with just 22.5mm width optimizes panel space in control cabinets.
Features three front-panel LEDs to indicate operational status and simplify troubleshooting.
Flame-retardant and dust-resistant enclosure with IP20/IP50 rating ensures safety and durability.
Wide operating temperature range from -25°C to 60°C allows use in demanding environments.
Suitable for dry running and overflow protection applications in process and utility industries.

Product Description

The ABB 1SVR730850R0100 CM-ENS.11S is a high-quality liquid level relay engineered for monitoring and controlling the levels of conductive liquids in various industrial and utility applications. This relay gives accurate protection from both overfill and dry running scenarios, safeguarding pumps and liquid management systems and helping to minimize manual intervention and maintenance.

This model is designed for DIN rail mounting, ensuring easy integration into modern equipment and control cabinets. With a compact 22.5mm width, the relay conserves valuable panel space while maintaining robust performance characteristics. Its flame-retardant housing and IP20 (terminal) and IP50 (enclosure) ratings provide added safety and resilience against dust and fire hazards.

The 1SVR730850R0100 CM-ENS.11S relay operates with a wide voltage supply of up to 240V AC or DC, offering installation flexibility across regions and machine designs. A key feature is its adjustable measurement sensitivity, ranging from 5 to 100kΩ, making it suitable for a broad range of conductive liquids and tank configurations. The single-pole double-throw (SPDT) output relay contact supports efficient interface to alarms and process controls.

For easy status monitoring, the unit is equipped with three front-panel LEDs, promptly displaying relay activity, supply, and liquid status. The device has a screw terminal connection for reliable wiring and supports current ratings up to 11mA. It operates efficiently in ambient temperatures from -25°C to 60°C, ensuring reliable service in industrial environments such as breweries, utility systems, wastewater plants, process tanks, and pharmaceutical installations.

The unit meets global safety and EMC conformity standards, including CAN/CSA C22.2 No.14, IEC/EN 60255-27, IEC/EN 60947-5-1, IEC/EN 61000-6-2, IEC/EN 61000-6-3, and UL 508. It ensures peace of mind for installation in certified facilities. Typical use cases for this relay include: liquid level control in process tanks, pump protection against dry running, monitoring both minimum and maximum levels, and involvement in mixing and leak-detection systems.

Applications span water and wastewater management, heater treaters, breweries, the pharmaceutical sector, and any industry requiring safe and efficient monitoring of conductive liquids. Its operational reliability and compact design make it a powerful choice for new installations and retrofits alike.

Explore more ABB Level Controllers and relay solutions in the EnvMart category for advanced automation and process control requirements.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The maximum supply voltage for the ABB 1SVR730850R0100 CM-ENS.11S liquid level relay is 240V AC or DC.

This model features an adjustable sensitivity range from 5 to 100kΩ, allowing it to be used with various conductive liquids.

The overall dimensions of the relay are 113.4mm in length, 22.5mm in width, and 113.4mm in depth.

It provides a single-pole double-throw (SPDT) relay output, which is suitable for interfacing with alarms and process controls.

The operating temperature range for this unit is from -25°C to 60°C, making it suitable for demanding environments.

The current rating for the ABB 1SVR730850R0100 CM-ENS.11S relay is 11mA.

The enclosure has an IP rating of IP20 for the terminals and IP50 for the overall unit, providing protection against dust and water.

This relay is designed for DIN rail mounting, allowing for quick and tool-free installation.

It uses screw terminal connections for reliable wiring.

Typical applications include liquid level control in process tanks, pump protection against dry running, and monitoring both minimum and maximum levels.
