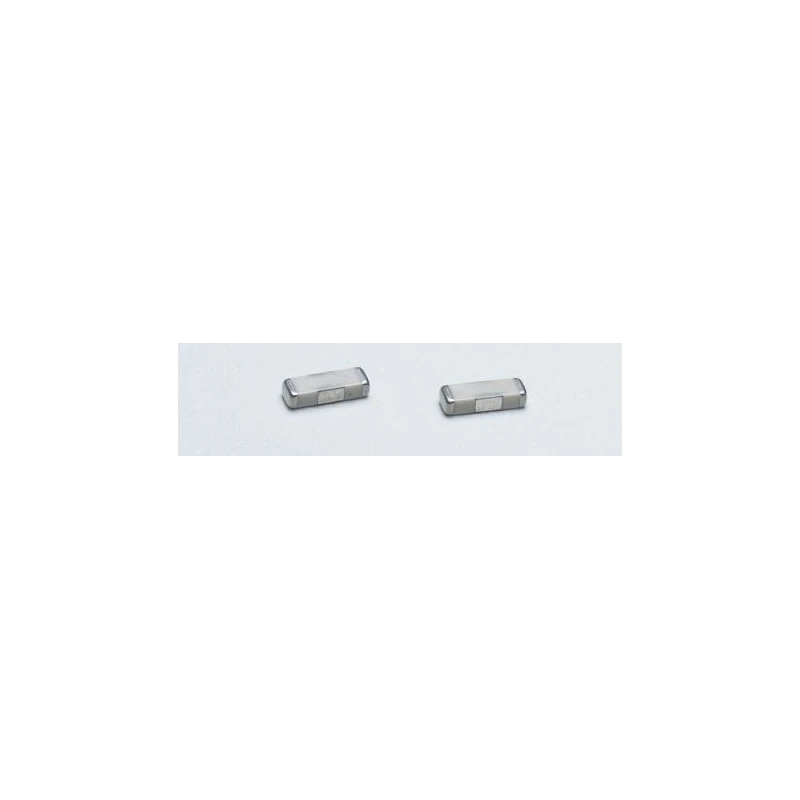

Murata Signal Filter 22nF 16V DC Surface Mount 0603 SMD Three-Terminal EMI Removal NFM18CC

The Murata NFM18CC223R1C3D Signal Filter is a surface mount filter capacitor engineered for removal of electromagnetic interference in sensitive signal pathways. With a capacitance of 22nF and a voltage rating of 16V DC, this device is well-suited for use in modern electronic circuit boards requiring compact, reliable EMI suppression solutions.

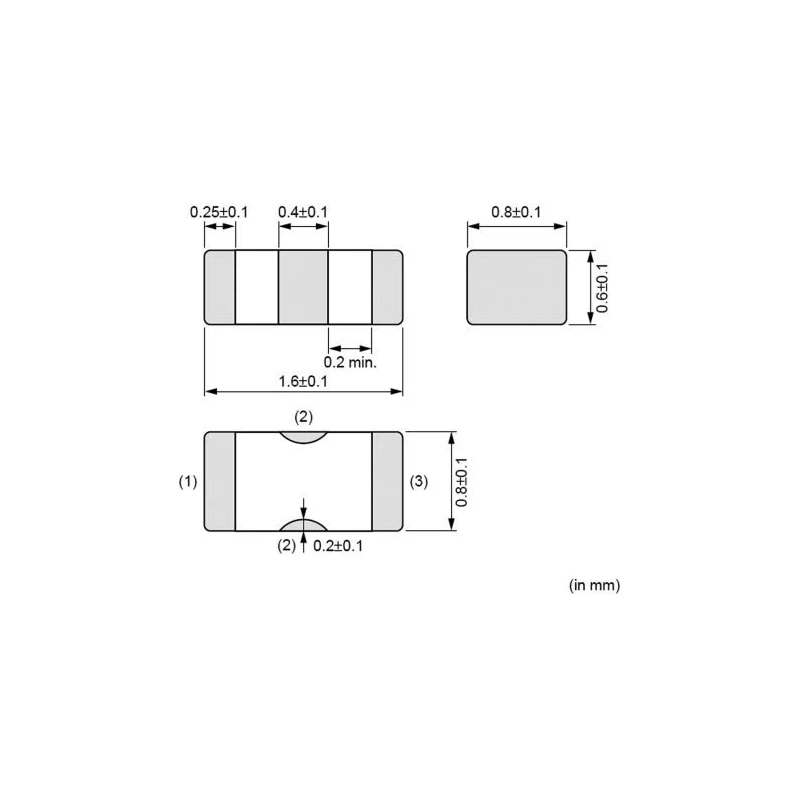

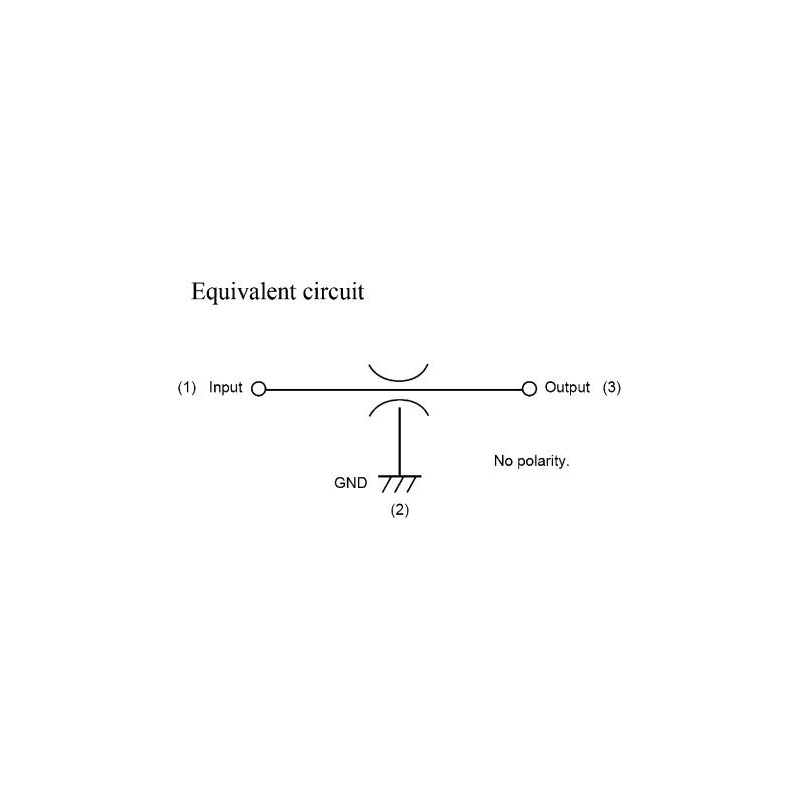

This filter belongs to the NFM18CC series, using a three-terminal configuration to absorb and eliminate noise up to GHz frequencies, providing stability and performance for high-speed signals. Its SMD 0603 enclosure allows for seamless PCB integration, benefiting designs where space and efficiency are critical.

The device features a resistance of 1000mΩ, a wide operational temperature range from -55°C to 125°C and a capacitance tolerance of ±20%, ensuring consistent electrical performance even under challenging conditions.

Mount type is surface, making installation straightforward for standard automated assembly lines. Its construction is optimized for signal, line, and feedthrough PCB mount applications, notably in industrial control, measurement, medical equipment, consumer electronics, and telecommunications systems where filtering unwanted noise is crucial.

This Murata filter is manufactured in Japan, offering proven reliability for demanding commercial and industrial environments.

Choose Murata signal filters for precise noise suppression in industrial, laboratory, communications and measurement applications. Explore more Capacitors and filter solutions from Murata and other leading brands on EnvMart.
