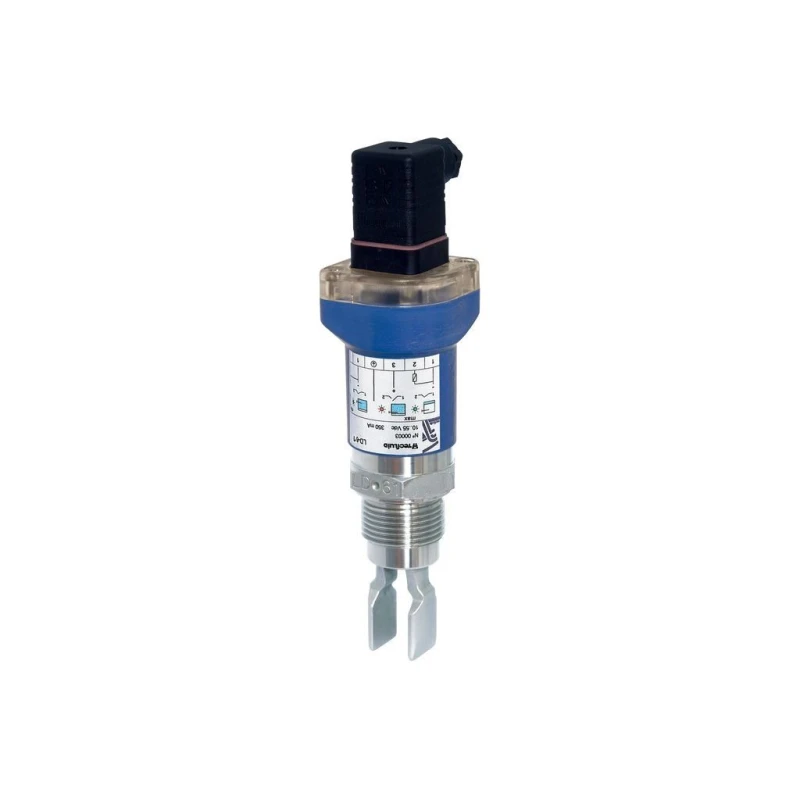

Vibrating Fork for Pump
Specifications
| Size | Free flowing powders and granules (size max. 10mm). |
|---|---|
| Switching time | 1 s approx |
| Hysteresis | 2 mm with H2O |
| Liquid density | higher than 0.6 kg/l |
| Liquid viscosity | up to 10000 cSt |
| Detection length | up to 2 m |
Key Features
- Compact size.
- Universal industrial power supply. 15 to 80 VDC & 15 to 260 VAC).
- Low power consumption.
- No calibration required.
- Various customized process connections. Starting from 1? threaded size.
Product Description
The LD series level switches are based on the variation of thenatural resonant frequency of a vibrating fork when it comesinto contact with a liquid or a solid.This variation is detected by the internal electronics and is usedto determine the state of the output. Robust and compact Suitable for liquids (model LD61) and solids (modelLD60) No moving parts, low maintenance Corrosion resistant materials Not affected by temperature or pressure changes Suitable for liquids with viscosity up to 10000 cSt Liquid density higher than 0.6 kg/l Solids: depending on application Detection length: up to 2 m Switching time: 1 s approx. Vibrating Fork Level switch for liquids and levelDetection length: 70 6000 mmThread fittings G 1 o 1 NPT EN 1.4404 (AISI 316L)NAMUR Exi version
- Settable switching delay as a standard feature.

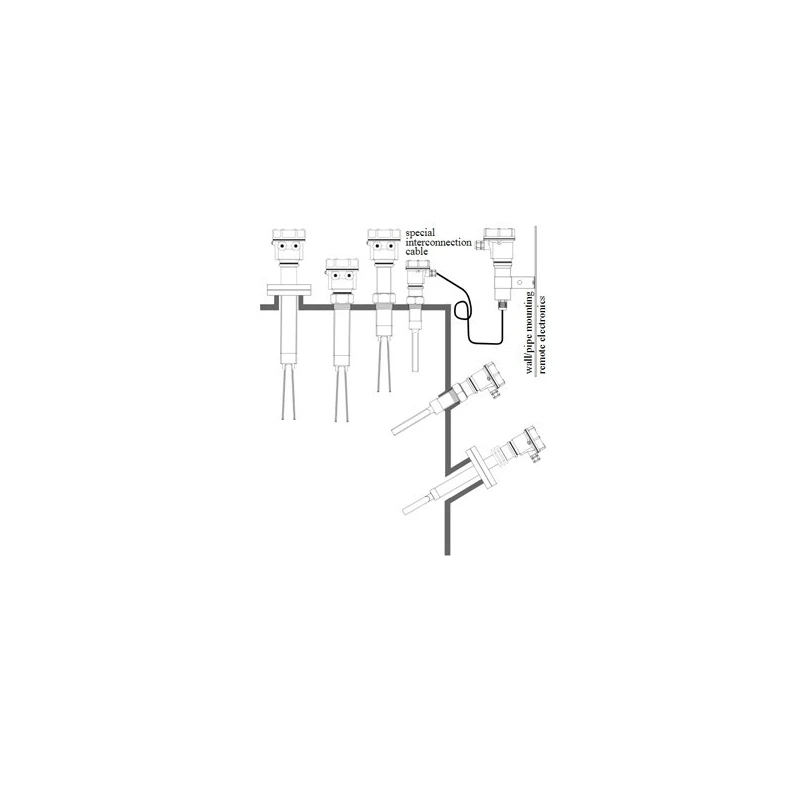

- Remote electronics version available on request.
- Exd version available-suitable for Gas Group IIC, T6 as per IEC 60079-1-2007 & IEC 600529-2001.
