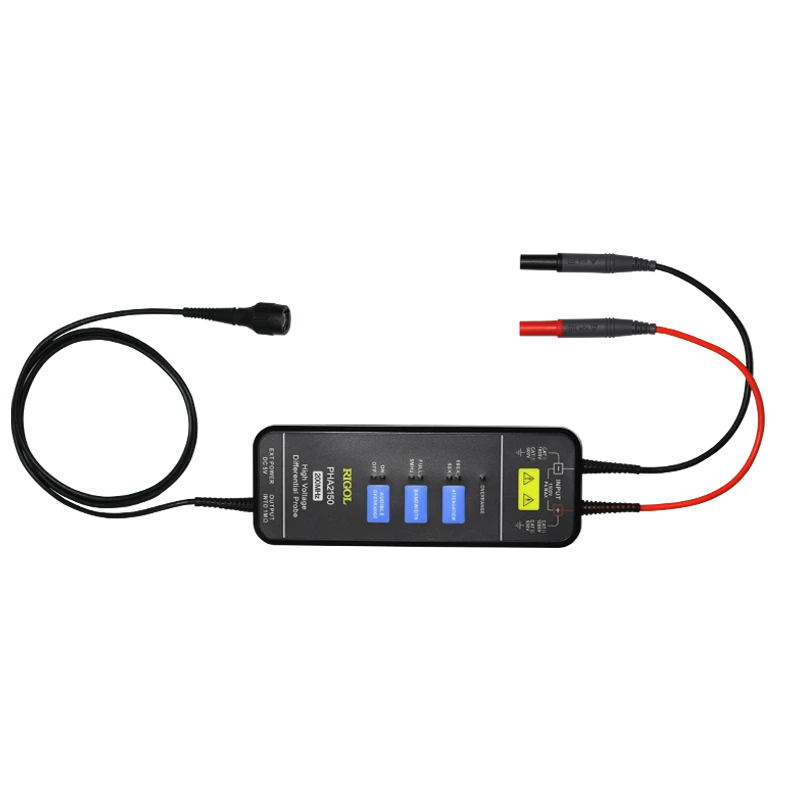

Rigol PHA1150 High-Voltage Differential Active Probe 1500 V DC to 100 MHz | EnvMart

Free Delivery in India | Lowest Global Shipping Charges

RIGOL High-Voltage Differential PHA1150 Active Probe For MSO/DS7000

Name: RIGOL High-Voltage Differential PHA1150 Active Probe For MSO/DS7000
Brand: Rigol
SKU: 73408
Price: 844.33 USD
Availability: InStock



Category Test Probes Brand Rigol

Specifications

Country of Origin	India
Brand	Rigol
Model	PHA1150
Bandwidth	DC to 100 MHz
Probe type	Differential Active Probe
Safety Rating	High-voltage measurement (1500 V differential)
Typical Applications	Switching waveform analysis, power electronics, precision signal measurement
Product Condition	New
MPN	PHA1150
Oscilloscope Compatibility	DS70000, DS8000-R, MSO8000, MSO8000A, MSO5000, DHO900, DHO800, DH4000, DHO1000, DS1000Z, DS1000Z-E
Maximum Differential Voltage	1500 V
Input Design	Active Differential

Key Features

Rigol PHA1150 High-Voltage Differential Active Probe is designed for advanced power electronics testing and waveform analysis, supporting up to 1500 V differential voltage with DC to 100 MHz bandwidth.

Enables safe and accurate measurement of high-voltage differential signals.
Operates across a wide frequency spectrum from DC up to 100 MHz for versatile testing.
Ideal for high-speed switching waveform analysis in power electronics applications.
Compatible with multiple Rigol oscilloscope series including DS70000, DS8000-R, and MSO8000 Series.
Active differential input design reduces common-mode noise and ensures precision results.
Rated for a maximum differential voltage of 1500 V, suitable for demanding laboratory and industrial tasks.
Delivers high-frequency response for precise transient capture and signal integrity analysis.
Facilitates advanced diagnostics, troubleshooting, and performance validation of power systems.

Product Description

The Rigol PHA1150 High-Voltage Differential Active Probe is an advanced accessory tailored for modern power electronics testing and high-speed signal analysis. Engineered to support a maximum differential voltage rating of 1500 V and a frequency bandwidth extending from DC to 100 MHz, it is ideally suited for waveform analysis, inverter and converter testing, and characterization of switching regulators or high-voltage circuits.

Enables safe probing of high-voltage signals in laboratory and industrial environments.
Active differential design suppresses common-mode interference, providing reliable and repeatable measurements.
Covers a broad spectrum, ensuring compatibility with fast transients and slow-moving analog signals alike.
Integrates seamlessly with a range of Rigol oscilloscopes, including DS70000, DS8000-R, MSO8000, MSO5000, DHO900, DHO800, DH4000, DHO1000, DS1000Z, and DS1000Z-E series.
Robust build for consistent performance during extended industrial, laboratory, and R&D usage.
Well suited for use in industrial product development, academic research, and quality control applications.
Enhances troubleshooting and design validation capabilities for power, automotive, and electronic system engineers.

Compatible Oscilloscopes: DS70000, DS8000-R, MSO8000/MSO8000A, MSO5000, DHO900, DHO800, DH4000, DHO1000, DS1000Z, and DS1000Z-E Series.
