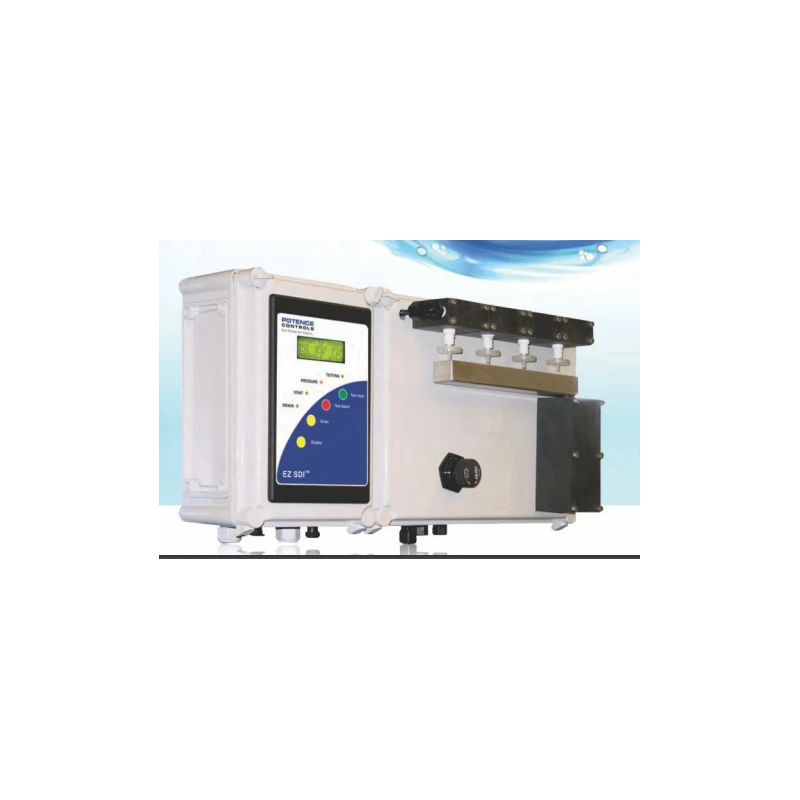

SDI Monitor PC-SDI

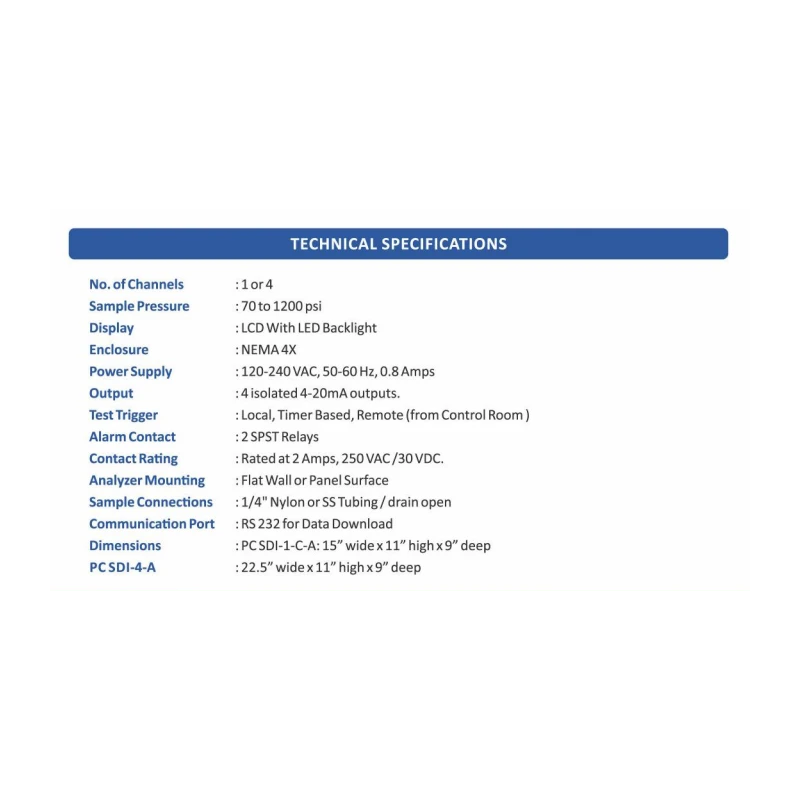

Specifications
| Display | LCD With LED Backlight |
|---|---|
| Power Supply | 120-240 VAC 50-60 Hz| 0 8 Amps |
| No. Of Channels | 1 to 4 |
| Sample Pressure | 70 to 1200 psi |
| Test Trigger | Local Timer Based| Remote (from Control Room) |
Key Features
- Large Desalination Projects v Well water 1 Filtered Water v Clari?ed Ef?uent Samples v R0 feed Water v Sea Water
- The manual SDI testing method is tedious and time-consuming. It involves setting and maintaining a variety of parameters such as Pressure, Flow, Level, Time, Temp. Difference etc. in strict accordance with standards set by the ASTM.
Product Description
Monitoring the fouling tendency of R0 feed water has long been a challenge. Usually fouling is not noticed until the R0membranes need cleaning, resulting in expensive downtime or worse yet membrane replacement.Numerous methods have been used to measure the fouling tendency of feed waters, including turbidity, particle counting,and manual silt density index (SDI) testing. It is difficult to correlate turbidity and particle counting to membrane foulingsince they do not directly measure the fouling or "plugging" nature of the particles in suspension. Since the manual SDI testmeasures this PLUGGING TENDENCY, it has proven useful in indicating fouling tendencies.No of Channels 1 to 470 to 1200psi120-240VAC, 50-60Hz,0.8Amps4 Isolated 4-20mA Outputs1/4" Nylon or SS Tubing/drain Open

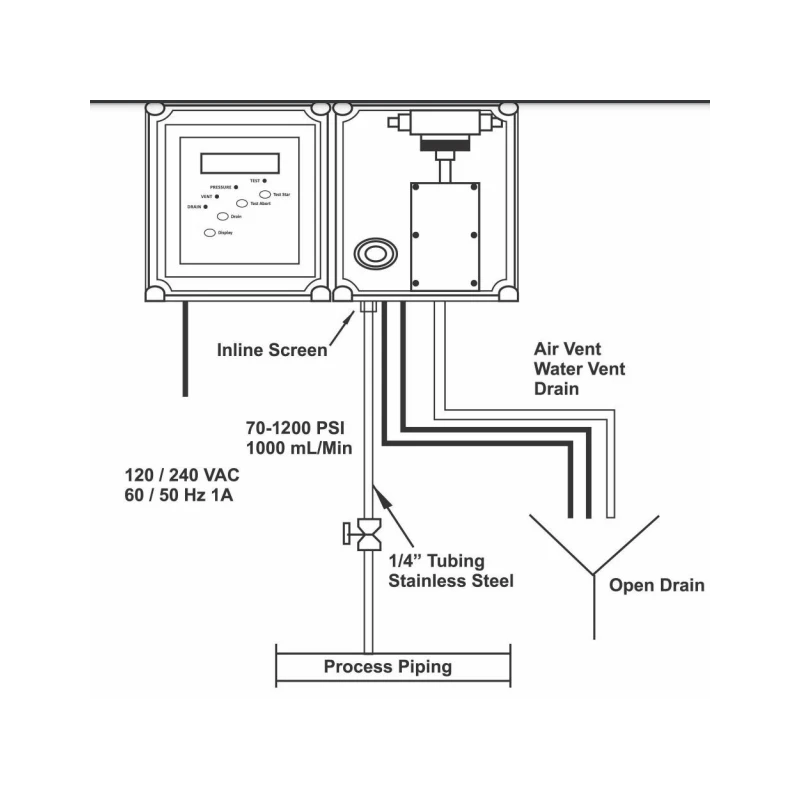

- It is microprocessor controlled and fully automatic. The monitor is housed in a NEMA 4X enclosure and is designed for permanent installation in industrial environments
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The sample pressure range for this monitor is 70 to 1200 psi.
This model supports 1 to 4 channels for monitoring.
It features an LCD display with LED backlight for clear visibility.
The power supply requirement is 120-240 VAC, 50-60 Hz, with a current of 0.8 Amps.
The test trigger can be activated either locally via a timer or remotely from a control room.
It has 4 isolated 4-20mA outputs for data transmission.
It is designed for permanent installation in industrial environments and is housed in a NEMA 4X enclosure.
Yes, it is specifically designed to monitor the fouling tendency of R0 feed water.
Typical applications include monitoring desalination projects and assessing water quality in various settings.
Yes, the SDI Monitor PC-SDI is microprocessor controlled and fully automatic.
The monitor can utilize either 1/4" nylon or stainless steel tubing for connections.
