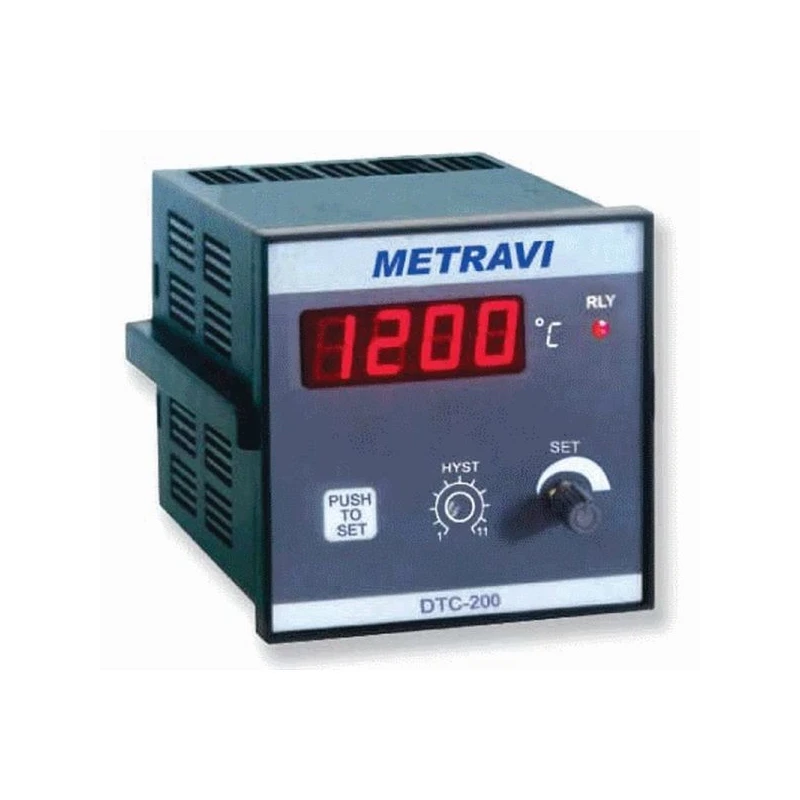

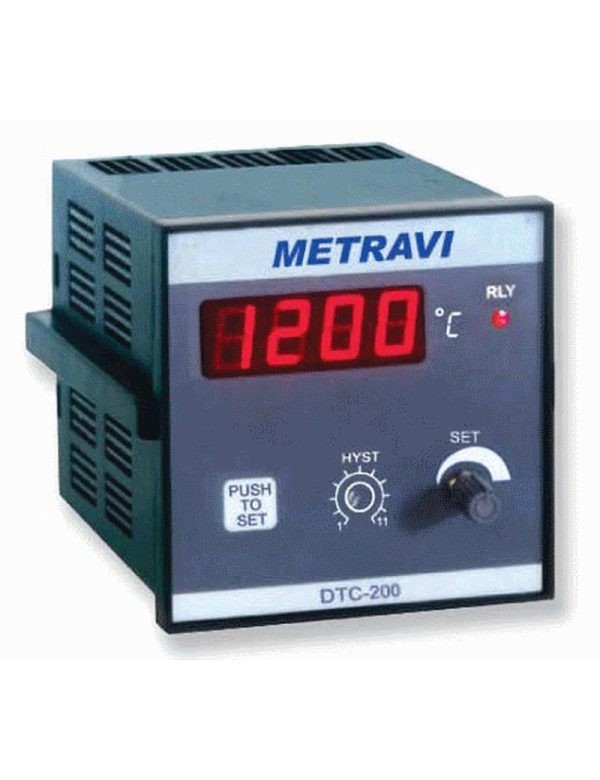

Metravi Single Channel Temperature Controller DTC 200
Specifications
| Country of Origin | India |
|---|---|
| Package Contents | Metravi DTC 200 Single Channel Temperature Controller |
| Accuracy | J |
| Display | 3½-digit 7-segment red LED(0.5" height) |
| Brand | Metravi |
| Operating Temperature | 0–50°C(RH Less than 80%) |
| Model | DTC 200 |
| Supply | 230VAC±10%50Hz |
| Set Point | Individual trimpot for each set point |
| Control Output | 6A or 20A 1C/O relay(230VAC) |
| Sensor Input | J |
| Cold Junction Compensation | Automatic for thermocouples |
| Control Action | ON/OFF or Time Proportional |
| Sensor Open Indication | '1' displayed at MSD |
| Dimensions(H×W×D) | 96×96×120mm /72×72×110mm |
| Panel Cutout(H×W) | 92×92mm /68×68mm |
| Hyst Pot | 1–10°C for each set point(ON–OFF mode) |
| Tune Pot | ±5°C for each set point(Time proportional mode) |
Key Features
- Flush Mounting type
- Sizes 96 x 96 mm sq ‘OR’ 72 x 72 mm sq
- Display
- 3-1/2 Digits Seven Segment Red
- LED display
- Cold Junction Compensation Automatic forThermocouple
- Open Sensor Indication
- Sensor Input J, K, R, S, T/C, PT-100 RTD, V & 4 – 20mA
- Accuracy J,K 1%; R,S 0.5%; PT-100 RTD0.2%, mV, V,mA 0.1%
- Hysterisis Pot 1 to 10°C for each point for ON – OFF Model
- Control Action ON/OFF or Time Proportional
- Control output (options available)
- a. 6A or 20A, 1C/O Relay, 230V.
- b. 12V DC pulse output for SSR for each set point
- Single Set Point
- Auxiliary Power Supply 230V Single Phase AC 50Hz
Product Description
Metravi DTC 200 Single Channel Temperature Controller is built for precise temperature regulation in industrial processes, ovens, furnaces and environmental chambers. It accepts thermocouple or RTD inputs and implements a PID algorithm to maintain stable set-points with minimal overshoot and steady state drift. Featuring digital display, set-point adjustment, alarm output and relay control, the DTC 200 ensures repeatable thermal performance. Its compact panel design, easily integrated wiring and robust build make it ideal for manufacturing controls, process automation and laboratory thermal systems requiring reliable, accurate temperature management.
Available on EnvMart, these Temperature Controllers are designed for precise monitoring and regulation of temperature in various applications. Metravi Temperature Controllers provide accuracy, reliability, and ease of operation, making them ideal for industrial, laboratory, and process control environments.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The accuracy for thermocouple inputs J and K is 1%, for R and S it is 0.5%, for PT-100 RTD it is 0.2%, and for mV, V, and mA it is 0.1%.
It accepts thermocouple inputs (J, K, R, S, T) and PT-100 RTD inputs, as well as V and 4-20mA signals.
It features a 3½-digit 7-segment red LED display with a height of 0.5 inches.
The control output options are either a 6A or 20A 1C/O relay for 230VAC, or a 12V DC pulse output for solid state relays for each set point.
The operating temperature range is from 0 to 50°C with a relative humidity of less than 80%.
The panel cutout dimensions required are 92×92 mm for the 96×96 mm model and 68×68 mm for the 72×72 mm model.
Cold junction compensation is automatic for thermocouples in the DTC 200.
The hysteresis setting range for the ON-OFF control action is from 1 to 10°C for each set point.
The auxiliary power supply requirement is 230VAC ±10% at 50Hz.
The dimensions are 96×96×120 mm for the 96 mm model and 72×72×110 mm for the 72 mm model.
It supports both ON/OFF and Time Proportional control actions.
The package includes the Metravi DTC 200 Single Channel Temperature Controller.
