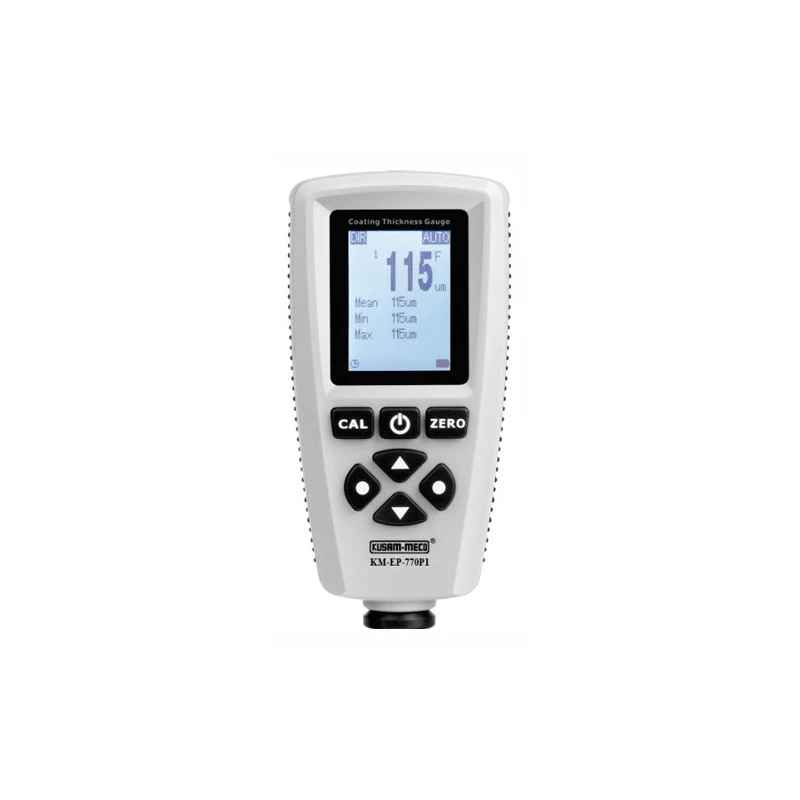

Kusam Meco 0 To 2000μm Digital Coating Thickness Gauge KM-EP-770
Specifications
| Country of Origin | India |
|---|---|
| Package Contents | Kusam Meco KM-EP-770 Digital Coating Thickness Gauge / User Manual / Battery / Carrying Case |
| Resolution | 0.1μm/1μm/0.01mm |
| Accuracy | ±(2.5%+1μm)/±(2.5%+0.039mil) |
| Measuring range | 0–2000μm(0–78.7mils) |
| Brand | Kusam Meco |
| Dimension | 110×53×24mm |
| Power | 2×1.5V AAA |
| Alarm | High/Low Limit |
| Humidity | 20–90%RH |
| Function | Digital Coating Thickness Gauge |
| Calibration | 1–4 Point Calibration/Zero Point |
| Probe | Probe F/Probe N |
| Model | KM-EP-770 |
| Temperature | 0–50°C |
| Weight | 80g |
| Measuring Principle | Magnetic Induction/Eddy Currents |
| Units | Mm/Μm/Mil |
| Storage Temp | -10–60°C |
| Computer Interface | USB |
| Data Group | 4 Groups(Max 320 Readings) |
| Statistics | Mean/Max/Min/Standard Deviation |
| Compliance | CE ROHS FCC ISO2178 ISO2360 |
| Curvature Convex | 5mm |
| Curvature Concave | 25mm |
| Min Area | Φ20mm |
| Min Thickness | 0.2mm/0.05mm |
| Max Measuring Rate | 2 Readings Per Second |
Key Features
- 128×128 LCD display with menu-based operation
- Supports single and continuous measurement modes
- Zero and multi-point calibration up to 4 points per group
- Displays statistics: mean, min, max, and standard deviation
- USB data transmission, low battery, and error indication
Product Description
The Kusam Meco KM219 Digital Coating Thickness Gauge is a compact, non-destructive instrument for measuring non-magnetic coatings such as paint, enamel, or chrome on steel and insulating layers on non-ferrous metals. It offers fast, accurate readings, user-friendly controls, and a clear LCD display for professional applications in automotive, manufacturing, and quality control.
Available on EnvMart, these Coating Thickness Gauges measure non-destructive coating thickness on metal surfaces. Kusam Meco Devices provide accuracy for paint, enamel, and anodizing applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Kusam Meco KM-EP-770 Digital Coating Thickness Gauge has a measuring range of 0–2000μm (0–78.7 mils).
The resolution of the KM-EP-770 gauge is 0.1μm, 1μm, or 0.01mm depending on the measurement mode used.
The accuracy of the Kusam Meco KM-EP-770 is ±(2.5%+1μm) or ±(2.5%+0.039 mil).
The KM-EP-770 can measure non-magnetic coatings such as paint, enamel, or chrome on steel, and insulating layers on non-ferrous metals.
The Kusam Meco KM-EP-770 operates on 2×1.5V AAA batteries.
The dimensions of the KM-EP-770 are 110×53×24mm, and it weighs 80g.
The KM-EP-770 uses Magnetic Induction and Eddy Currents as its measurement principles.
The maximum measuring rate of the Kusam Meco KM-EP-770 is 2 readings per second.
The KM-EP-770 offers 1–4 point calibration and zero point calibration options.
The KM-EP-770 displays statistics including mean, maximum, minimum, and standard deviation.
The Kusam Meco KM-EP-770 complies with CE, ROHS, FCC, ISO2178, and ISO2360 standards.
The package of the KM-EP-770 includes the Digital Coating Thickness Gauge, a user manual, a battery, and a carrying case.
