Kusam Meco Hd-81.5 Kv High Voltage Detector 290
Specifications
| Country of Origin | India |
|---|---|
| Package Contents | Kusam Meco KM 290HD High Voltage Detectors / Instruction Manual / Carrying Case. |
| Display | Flashing Red Light/Sound Alarm 50dB |
| Frequency | 50/60Hz |
| Brand | Kusam Meco |
| Power Supply | 2×LR44(1.5V)ButtonCells |
| Dimension | Retracted1370mm/Extended2450mm |
| Storage Temperature | -20°C–60°C |
| Function | High Voltage Detector |
| Model | 290 |
| Temperature | -10°C–50°C |
| Weight | Approx .590g |
| Construction | Waterproof Head |
| Insulation resistance | 2000MΩMin |
| Withstand Voltage | 100KV/300mm/5Minutes |
| Measuring Voltage Range | 6KV–81.5KV |
| Operating Start Voltage | 2.7KV |
| Leakage Current | 100μA |
| DCVoltageDetection | 81.5KV |
Key Features
- Compact telescopic voltage detector with waterproof design
- Provides intermittent RED LED and audible alarms
- Reliable in bright and noisy locations
- Sealed head prevents dust or moisture issues
- Ideal for high-tension circuit detection
Product Description

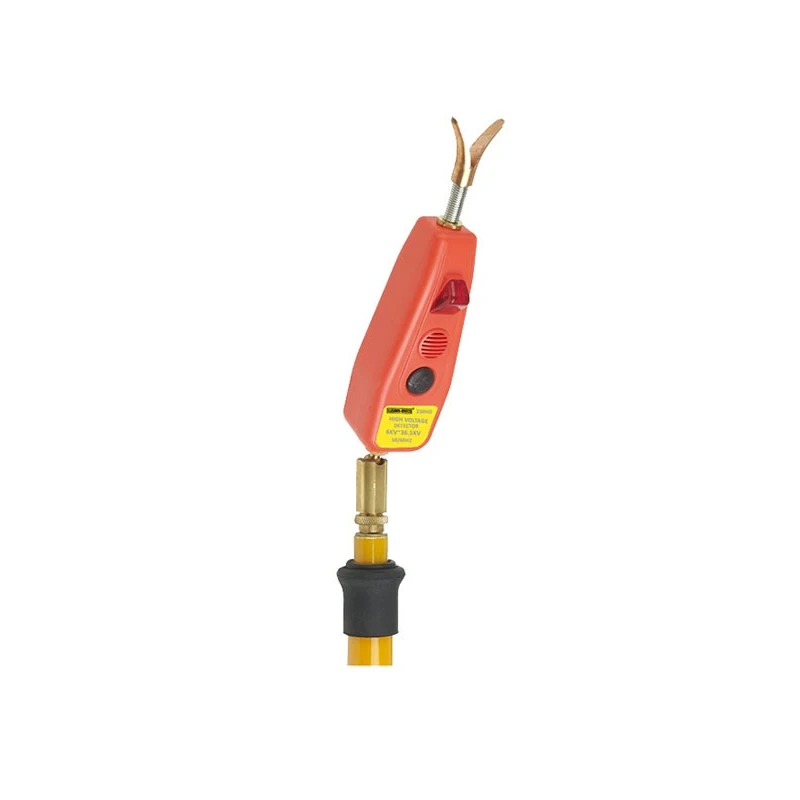

The Kusam Meco KM290 High Voltage Detector is designed for safe detection of high and extra-high voltages in AC lines up to 81.5 kV. It uses a telescopic insulated rod for checking live circuits at a safe distance, ensuring operator safety. Compact and light-weight, it is easy to handle and transport, making it ideal for routine maintenance and electrical testing tasks in industrial and utility settings.
Available on EnvMart, these High Voltage Detectors safely check live AC circuits up to 81.5 kV. Kusam Meco Instruments provide compact, telescopic, and user-friendly testing solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Kusam Meco HD-81.5 KV High Voltage Detector can measure voltages ranging from 6 kV to 81.5 kV.
The detector is powered by 2×LR44 (1.5V) button cells.
The operating temperature range for the detector is between -10°C and 50°C.
When retracted, the detector measures 1370 mm, and when extended, it measures 2450 mm.
The detector features a flashing red light and a sound alarm with a volume of 50 dB.
The detector has a waterproof head to prevent dust or moisture issues.
The insulation resistance of the detector is a minimum of 2000 MΩ.
The storage temperature range for the detector is -20°C to 60°C.
The package includes the Kusam Meco KM 290HD High Voltage Detector, an instruction manual, and a carrying case.
The detector has a withstand voltage capability of 100 kV for 5 minutes at a distance of 300 mm.
The detector operates at a frequency of 50/60 Hz.
The leakage current for the detector is specified at 100 μA.
