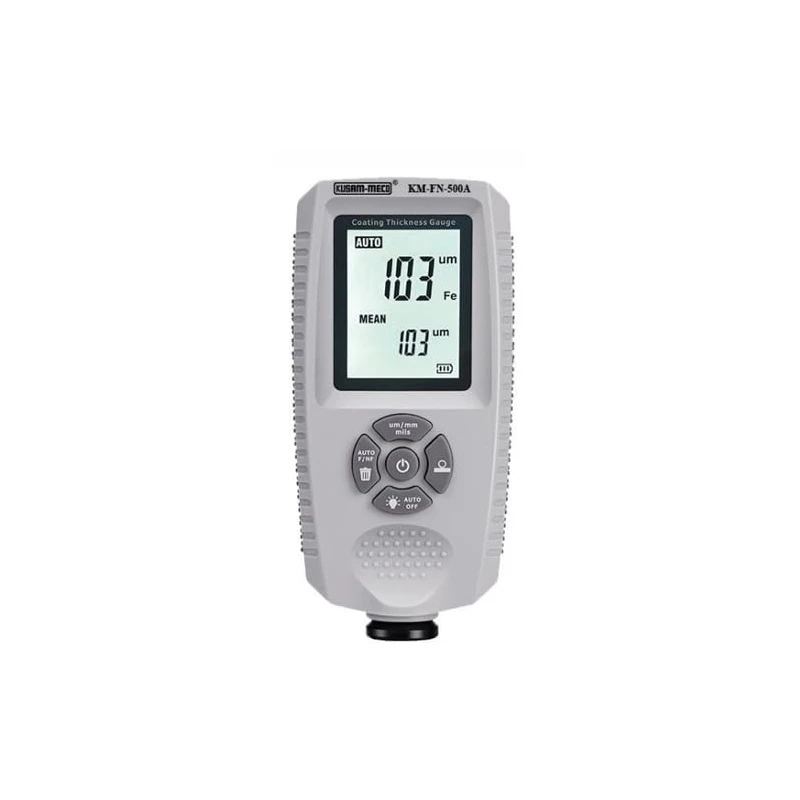

Kusam Meco Digital Coating Thickness Gauge KMFN 500a
Specifications
| Country of Origin | India |
|---|---|
| Package Contents | Kusam Meco KM FN 500A Digital Coating Thickness Gauge / User Manual / Battery / Carrying Case |
| Resolution | 0–99.9mm(0.1 Mm) / 100–999mm(1 Mm) / Greater Than 1000mm(0.01 Mm) |
| Measuring range | 0–1500 mm |
| Brand | Kusam Meco |
| Power Supply | Two 1.5 V AAA Batteries |
| Dimensions | 110×53×24 mm |
| Storage Temperature | -10–60 °C (14–140 °F) |
| Function | Coating Thickness Gauge |
| Calibration | Zero Point Calibration |
| Model | KMFN |
| Temperature | 0–50 °C (32–122 °F) Humidity 20–90 % RH |
| Weight | Approx 84 G |
| Backlight | Yes |
| Units | Mm Μm Mils |
| Standard Compliance | CE ROHS FCC |
| Statistics | No. Of Readings Mean Minimum Maximum |
| Minimum Curvature Radius Convex | 5 mm |
| Minimum Measuring Area | Diameter 20 mm |
| Minimum Thickness Of Substrate | Probe F 0.2mm/ Probe N 0.05 mm |
| Probe F Principle | Magnetic Induction |
| Probe N Principle | Eddy Currents |
| Accuracy Type A | ±(3%+1 Mm) Type B |
| Concave | 25 mm |
| Maximum Measuring Rate | Two Readings Per Second |
Key Features
- Dual ferrous / non-ferrous coating-thickness measurement (0 – 1500 µm)
- High-accuracy, non-destructive readings with auto-substrate detect
- Backlit LCD and single/continuous modes for flexible operation
- Multi-point calibration with data-storage and statistics
- Portable design for on-site industrial use
Product Description
Kusam Meco KMFN 500a Coating Thickness Gauge is used for measuring non-magnetic coatings like paint, chrome, or enamel on steel and insulating coatings on non-ferrous metals. It ensures accurate, non-destructive inspection. Compact, lightweight, and easy to handle, it’s ideal for automotive, construction, and industrial coating checks.
Available on EnvMart, these Coating Thickness Gauges measure paint or plating layers accurately. Kusam Meco Devices deliver reliable readings for metal finishing and surface testing.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Kusam Meco KMFN 500a can measure coating thickness in the range of 0 to 1500 µm.
The KMFN 500a is designed to measure non-magnetic coatings such as paint, chrome, or enamel on steel, as well as insulating coatings on non-ferrous metals.
The resolution of the KMFN 500a varies: it is 0.1 µm for measurements up to 99.9 µm, 1 µm for measurements from 100 to 999 µm, and 0.01 µm for measurements greater than 1000 µm.
The Kusam Meco KMFN 500a operates on two 1.5 V AAA batteries.
The dimensions of the KMFN 500a are 110×53×24 mm, and it weighs approximately 84 grams.
The operating temperature range for the KMFN 500a is 0 to 50 °C (32 to 122 °F) with a humidity range of 20 to 90 % RH.
Yes, the Kusam Meco KMFN 500a features a backlit LCD for improved visibility during measurements.
The KMFN 500a utilizes zero point calibration for accurate measurements.
The maximum measuring rate of the KMFN 500a is two readings per second.
The package includes the Kusam Meco KM FN 500A Digital Coating Thickness Gauge, a user manual, a battery, and a carrying case.
The Kusam Meco KMFN 500a complies with CE, ROHS, and FCC standards.
The minimum measuring area for the KMFN 500a is a diameter of 20 mm.
