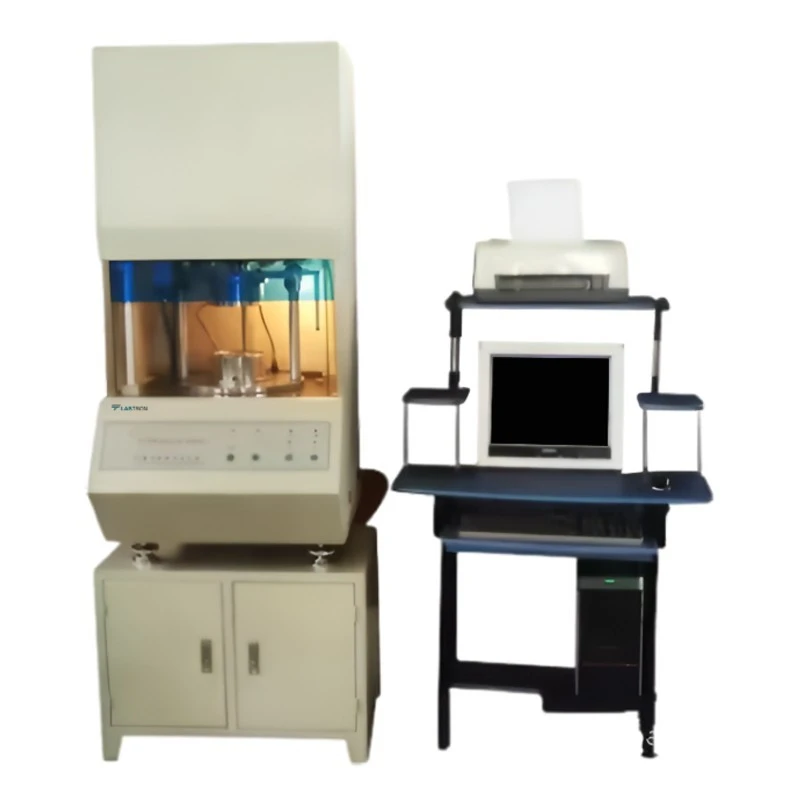

Labtron TNRR-A10 No Rotor Rheometer
Specifications
| Country of Origin | UK |
|---|---|
| Display | Windows 7 + software |
| Brand | Labtron |
| Power Supply | Single phase / 220 V ± 10% / 50 Hz |
| Model | TNRR-A10 |
| Weight | 250 KG |
| Product Dimension | 1310 x 560 x 620 mm |
| Ambient Temperature (ºC) | 0 to 35°C |
| Type of Product | Rheometer |
| Torque Range | 0 to 5 NM / 0 to 10 NM / 0 to 20 NM |
| Torque Resolution | 0.001 NM |
| Temperature Display Resolution | 0.1°C |
| Temperature Control Accuracy | ± 0.3°C |
| Rotor Speed | 100 times/min |
| Temperature Tester | Room temperature to 200°C |
| Die Cavity Frequency | 1.7 Hz |
| Sway Angle | ± 0.5° / ± 1° / ± 3° |
| Air Compression | 0.5 MPa to 0.65 MPa |
| Test Result | Printed date / time / temperature / vulcanization curve / temperature curve ML / MH / ts1 / ts2 / t10 / t50 / Vc1 / Vc2 |
Key Features
- PID controlled microprocessor technology
- LCD Display
- Use of highly imported precision sensors
- Statistics, analysis, storage and comparison functions
- Can print automatic processing, calculations results
- Non curing viscometer monolithic rotor controlled
- User-friendly design appearance, easy to operate
- Supplied with data acquisition system
- Finds the vulcanization time for gelatin
Product Description
The TNRR-A10 is a No Rotor Rheometer where the rubber sample is enclosed in a mold cavity, maintained at the test temperature. The mold cavity comes in two parts, with the lower part (swing oscillations) determining strain as the reaction torque of the mold cavity (force). The PID-controlled microprocessor technology controls and detects changes in temperature. The LCD screen displays the real vulcanization curve and temperature curve, adjusts the test data, and stores test results.
Applications:
The No Rotor Rheometer is used to test vulcanization characteristics of rubber material across the rubber industry for quality control and research.
