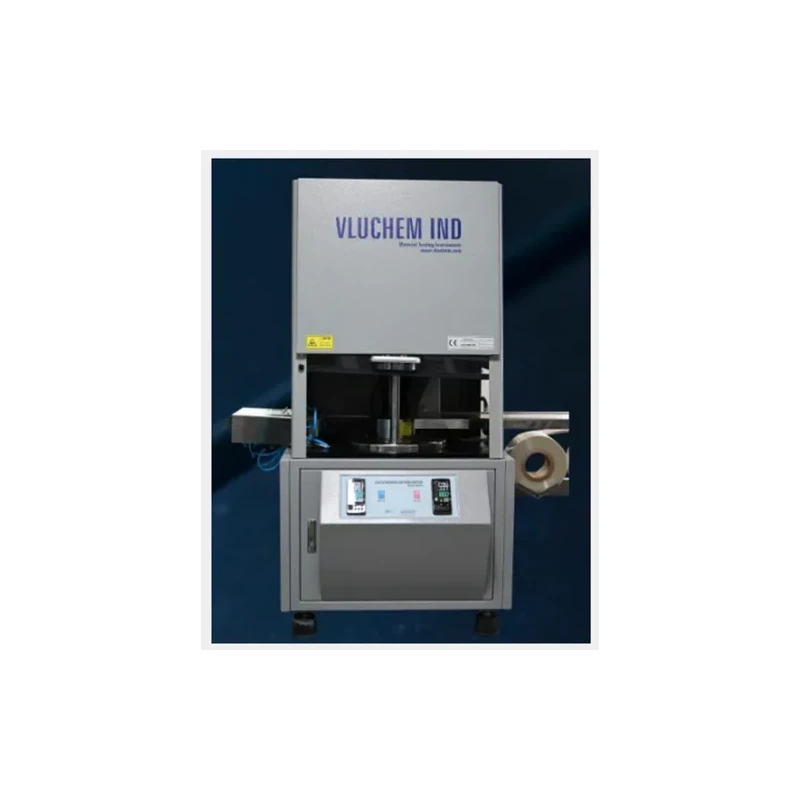

Auto Moving Die Rheometer AMR-10
Specifications
| Dimension | W1200 X D685 X H1200 mm |
|---|---|
| Temperature range | Microprocessor controlled RT ~ 220C |
| Calibration | Calibration jig |
| Model | AMR-10 |
| Weight | 130 kgs |
| Motor | Induction Motor |
| Electrical | 200~230V| 3A| single phase| 50Hz/60Hz |
| Temperature Control | Available by hardware & software |
| Torque Range | 0~ 200 dNm |
| Pneumatics | Min 4.5 bar/60 Psi |
| International Standard | ASTM D 5289 ISO 6502 KS M ISO 6502 |
| Die configuration | Biconical| closed die system| sealed |
| Oscillation frequency | 1.67Hz |
| Oscillation angle | 0.5[Option]1| 3| 5 Mechanically adjustable |
| Protection for operator Temp. shield screen moving | Before test chamber closing |
| Test chamber moving | By Pneumatic |
| Motor Platen operation | Available by hardware & software |
| Temp. Sensor Type | PT 100 O |
| Data | Torque[dNm| lbf.in] Temperature [C] MH| ML Ts1| Ts2| Tc10(N)| Tc50(N)| Tc90(N) Data excel export function| Trend graphs Tolerance limits by time and torque Average| S-Dev |
| Linear Automation Feeding Device | AMR-10 [5 samples] |
Key Features
- Bulk Quantities Available
Product Description
The Vluchems automatic moving die rheometer (AMR-10) for determining selected vulcanization characteristics of vulcanizable rubber compounds using rotorless sealed torsion meter and measured according to ASTM D 5289, ISO 6502-3 and KS M ISO6502.MR-10 may be used for quality control in rubber manufacturing processes, for research and development testing of raw-rubber compounded in an evaluation formulation, and for evaluating various raw materials used in preparing rubber compounds.
