RST-CPS Plate Rheometer
Specifications
| Dimension | W615 X D685 X H1200 mm |
|---|---|
| Temperature range | Microprocessor controlled RT ~ 220C |
| Calibration | Calibration jig |
| Model | MR-10 |
| Weight | 110 kgs |
| Motor | Induction Motor |
| Electrical | 200~230V| 3A| single phase| 50Hz/60Hz |
| Temperature Control | Available by hardware & software |
| Torque Range | 0~ 200 dNm |
| Pneumatics | Min 4.5 bar/60 Psi |
| International Standard | ASTM D 5289 ISO 6502 KS M ISO 6502 |
| Die configuration | Biconical| closed die system| sealed |
| Oscillation frequency | 1.67Hz |
| Oscillation angle | 0.5[Option]1| 3| 5 Mechanically adjustable |
| Protection for operator Temp. shield screen moving | Before test chamber closing |
| Test chamber moving | By Pneumatic |
| Motor Platen operation | Available by hardware & software |
| Temp. Sensor Type | PT 100 O |
| Data | Torque[dNm| lbf.in] Temperature [C] MH| ML Ts1| Ts2| Tc10(N)| Tc50(N)| Tc90(N) Automatic test results pass/fail function Trend graphs Tolerance limits by time and torque Data excel export function| Average| S-Dev |
Key Features
- Bulk Quantities Available
Product Description

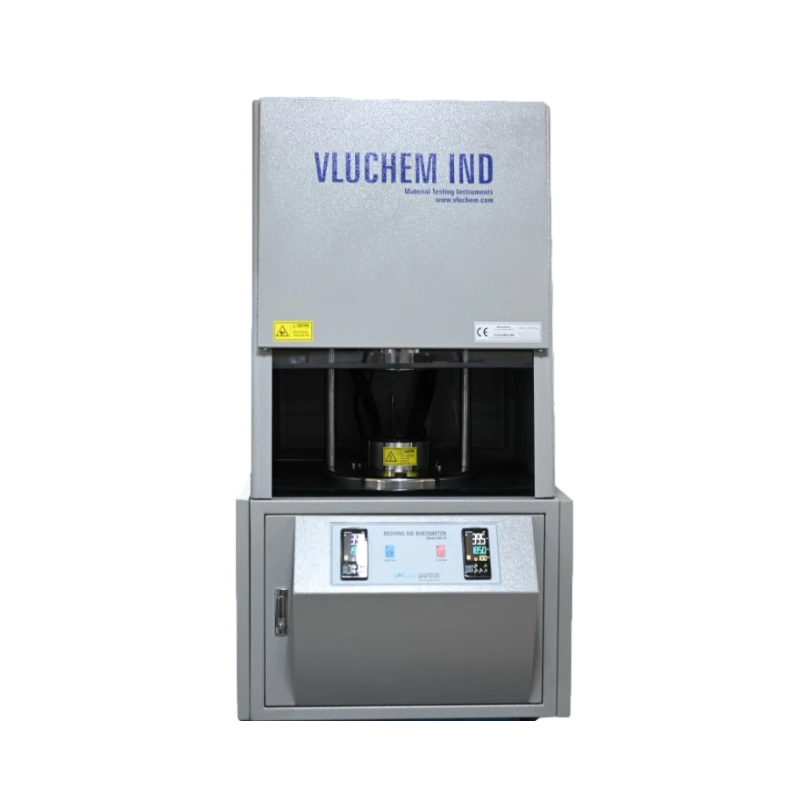

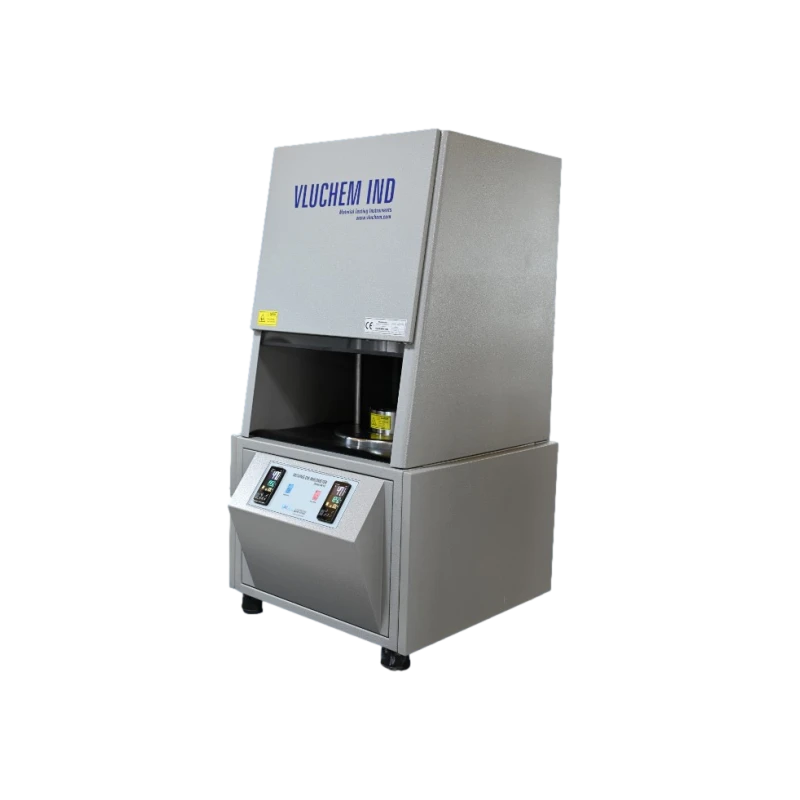

Moving Die RheometerThe Vluchems moving die rheometer (MR-10) for determining selected vulcanization characteristics of vulcanizable rubber compounds using rotorless sealed torsion meter and measured according to ASTM D 5289, ISO 6502-3 and KS M ISO6502.MR-10 may be used for quality control in rubber manufacturing processes, for research and development testing of raw-rubber compounded in an evaluation formulation, and for evaluating various raw materials used in preparing rubber compounds. The instrument is equipped with the highest torque measurement, reliability, along with stiff hardware, superior heater, temperature sensor, temperature controller and Vluchems own designed data acquisition device and software.Designed to be placed on a desk instrument and is supplied with Vluchems own data analysis software for test management, data recording and printing, automated Pass/Fail testing as well as recall processing of historical data, also available an online upload software as an option.This instrument is supplied with Ce labeling (MR-10)
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
Temperature control is available through both hardware and software, with a microprocessor-controlled range from room temperature to 220°C.
The dimensions of the MR-10 are W615 x D685 x H1200 mm, and it weighs 110 kgs.
It requires a single-phase electrical supply of 200-230V, 3A, and operates at 50Hz/60Hz.
This unit is equipped with an induction motor.
The oscillation frequency of this rheometer is 1.67 Hz.
The die configuration is a biconical, closed die system that is sealed.
It can record torque, temperature, and various test results, including automatic pass/fail functions and trend graphs.
It requires a minimum pneumatic pressure of 4.5 bar (60 Psi).
This model complies with ASTM D 5289, ISO 6502, and KS M ISO 6502 standards.
The test chamber is operated pneumatically.
