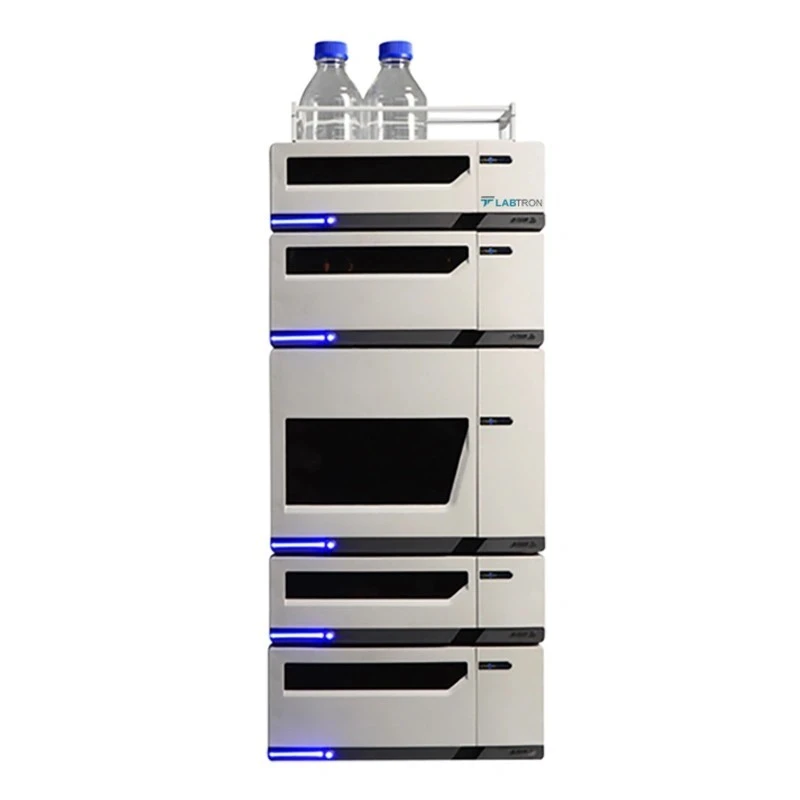

Analytical HPLC System EAHS-A10
Specifications
| Brand | Generic Brand |
|---|---|
| Power Supply | AC 110 / 220 V ±10% / 50/60 Hz |
| Model | LAHS-A10 |
| Weight | 156 kg |
| Pump Type | Quaternary Low-Pressure Pump |
| Conditions | 21 CFR part 11 directive of the FDA |
| External Dimension | 770 × 450 × 700 mm |
| Internal Dimension | 710 × 583 × 500 mm |
| Pump Flow Rate Range | 0.001 to 10.000 ml/min / in 0.001 ml increments |
| Pump Flow Accuracy | ≤ ± 0.2% (1.00 ml/min / H₂O / R.T. / 8.5 MPa) |
| Pump Flow Precision | RSD ≤ 0.06% (1.00 ml/min / H₂O / R.T. / 8.5 MPa) |
| Pump Maximum Pressure | 63 MPa |
| Pump Pressure Accuracy | ≤ ± 3.0% |
| Pump Pressure Pulsation | ≤ 0.1 MPa |
| Pump Composition Range | 0 to 100% |
| Pump Composition Precision | ≤ 0.3% RSD |
| UV/Vis Detector Wavelength Range | 190 to 800 nm |
| Detector Wavelength Repeatability | ≤ ± 1 nm |
| Detector Wavelength Accuracy | ≤ ± 1.0 nm |
| Detector Band Width | 6 nm |
| Detector Response Time | 0.0 s to 5 s |
| Detector Baseline Noise | ≤ ± 0.25 × 10⁻⁵ AU (empty cell / 254 nm / 1.0s) |
| Detector Drift | ≤ 0.5 × 10⁻⁴ AU/h (empty cell / 254 nm / 60 min) |
| Detector Path Length | 10 mm (analytical cell) |
| Detector Light Source | Deuterium Lamp and Tungsten Lamp |
| Column Oven Capacity | 3 columns |
| Column Oven Thickness | ID10 × 250 mm |
| System Kits | 1 Set (A/D converters 4-channel vacuum degasser) |
Key Features
- Tables for regular samples
- Internal and external standard calculation process
- Fast and stable UDP communication protocol
- 5 mm stroke of plunger rod
- 4-channel vacuum degasser
- High-capacity column oven
Product Description
Analytical HPLC System LAHS-A10 features a Quaternary Low-Pressure Pump with a 0.001 to 10 ml/min pump flow rate and incorporates a UV-Vis detector with a wavelength range of 190 to 800 nm. It is equipped with a deuterium lamp and a tungsten lamp as light sources. The system integrates an advanced software system for automatic display, print, and export of data, ensuring reliable results and improved working efficiency.
Applications
Our analytical HPLC system is widely used in food, medicine, environmental protection, and scientific research.
Standard Accessories
- Degasser
Optional Accessories
- Column oven
- Diode Array Detector
- Refractive Index Detector
- Evaporative Light Scattering Detector
- Fluorescence Detector
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pump flow rate range of the Analytical HPLC System EAHS-A10 is from 0.001 to 10.000 ml/min, adjustable in increments of 0.001 ml.
This model can achieve a maximum pressure of 63 MPa.
The UV/Vis detector in this system has a wavelength range of 190 to 800 nm.
The pump flow accuracy is ≤ ± 0.2% at a flow rate of 1.00 ml/min using water at room temperature and 8.5 MPa pressure.
The external dimensions of the Analytical HPLC System EAHS-A10 are 770 × 450 × 700 mm.
It requires an AC power supply of 110 / 220 V ±10% at 50/60 Hz.
The weight of this model is 156 kg.
The detector's response time ranges from 0.0 seconds to 5 seconds.
The column oven can accommodate up to 3 columns.
The detector path length is 10 mm for the analytical cell.
This HPLC system is widely used in food, medicine, environmental protection, and scientific research.
