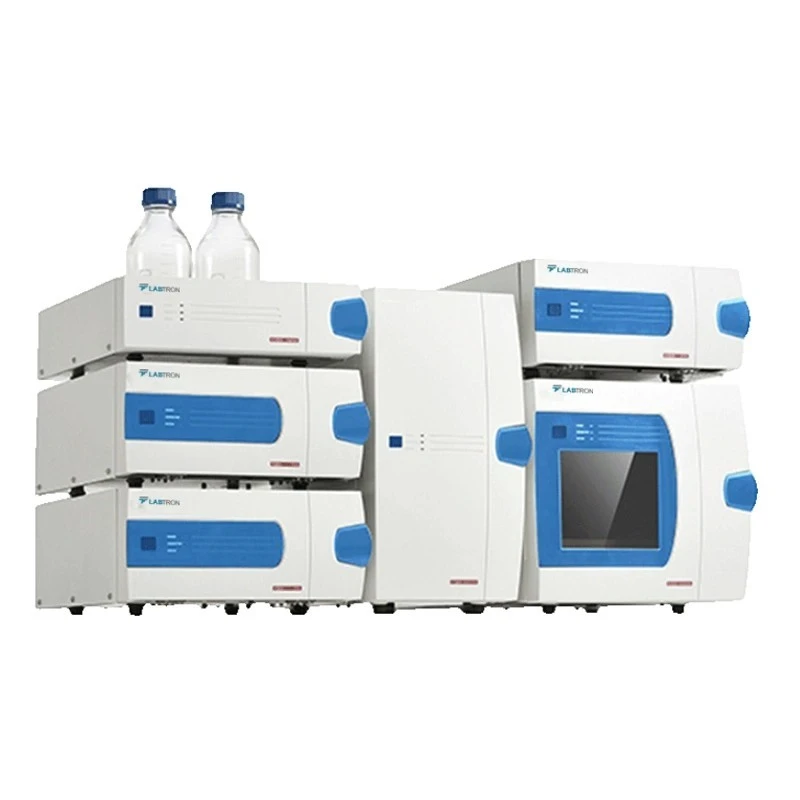

Analytical HPLC System EAHS-D10
Specifications
| Relative Humidity | 20 to 85% |
|---|---|
| Brand | Generic Brand |
| Power Supply | 220V / 50Hz |
| Function | Heating / cooling / Air Circulation |
| Model | LAHS-D10 |
| Total Weight | 138 kg |
| Ambient Temperature (ºC) | 10 to 40°C |
| Grating | 1800L/mm |
| Number of Samples | 120 Vials (2 x 60 / 2ml) |
| Injection Modes | Full Loop Injection / Partial Injection / Non-Destructive Injection |
| Pump Pressure Pulsation | 0.1 MPa (10MPa / C18 / methanol 1mL/min) |
| Pump Flow Range | 0.001 to 10.000 mL/min |
| Pump Flow Stability | RSD ≤ 0.06% |
| Pump Set Step | 0.001 mL/min |
| Pump Pressure Range | 0 to 42 MPa |
| Pump Flow Error | ±0.2% |
| Pump Gradient Error | ±1% |
| Sample Injection Volume | 1 to 1000 µl |
| Sample Volume Repeatability | Less than 0.5% RSD |
| Autosampler Linearity | Greater than0.9999 |
| Autosampler Cross Contamination | Less than0.0002% |
| Sample Volume Error | ±1% |
| Syringe Volume | Standard - 500 µl (Optional - 250 µl / 1000 µl / 2500 µl) |
| Quantitative Volume | Standard - 100 µl (Optional - 10 µl / 20 µl / 50 µl / 200 µl) |
| Minimum Refrigeration Temperature | 4°C |
| Cooling Module | 4 to 30 °C |
| Column Oven Temperature Range | 4 to 85 °C |
| Column Oven Temperature Resolution | 0.1 °C |
| Column Oven Temperature Stability | ± 0.02 °C |
| Repeatability Of Qualitative Measurement | ≤ 0.2% |
| Repeatability Of Quantitative Measurement | ≤ 0.4% |
| Autosampler Dimension | 660 x 760 x 980 mm |
| Column Oven Dimension | 685 x 515 x 625 mm |
| Pump & Detector Dimension | 660 x 760 x 985 mm |
| Autosampler Weight | 42 kg |
| Column Oven Weight | 45 kg |
| Pump & Detector Weight | 51 kg |
Key Features
- Standard plunger rod cleaning function
- Built-in lighting facilitates
- High-precision gradient valves and acetonitrile-resistant check valve
- Incorporates two-stage suspension technology in pump
- Features a built-in degasser to efficiently remove gases
- Incorporates a high-precision metering pump
- Electric injection valve and syringe pump available
- Offers optional cooling module
Product Description
Analytical HPLC System LAHS-D10 is a binary pump-type system featuring a pump flow range of 0.001 to 10.000 mL/min. It incorporates a mainstream split design for comprehensive system testing and electronic pulsation suppression technology to ensure precise solvent compression. Designed for high-performance liquid chromatography, this system includes a high-pressure pump, autosampler, column oven, and detectors. Equipped with a fully intelligent counter-control chromatography workstation, it enhances operational efficiency and ensures accurate and reliable results.
Applications
Analytical HPLC systems are widely used for separation, identification, and quantification of chemical compounds in complex mixtures. It is employed in CDC industries, biomedical industries, food and feed industries, environmental industries, and chemical industries for high-precision analysis.
Standard Accessories
- Binary Liquid Pump.
Optional Accessories
- Autosampler
- Degassing Unit
- Columns × 2
- Heating chamber (With air circulation and cooling)
- Solvent Organizer
- Accessory tool kit
- Fluorescence Detector
- UV-VIS Detector
- Diode Array Detector
- Refractive Index Detector (RID).
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pump flow range of this model is from 0.001 to 10.000 mL/min.
The maximum pump pressure for this system is 42 MPa.
It supports Full Loop Injection, Partial Injection, and Non-Destructive Injection modes.
The sample injection volume range is from 1 to 1000 µl.
The suitable ambient temperature range for operation is between 10 to 40°C.
The dimensions of the autosampler are 660 x 760 x 980 mm.
The total weight of this system is 138 kg.
The column oven temperature range is from 4 to 85 °C.
The power supply requirement is 220V / 50Hz.
The repeatability of quantitative measurement is ≤ 0.4%.
