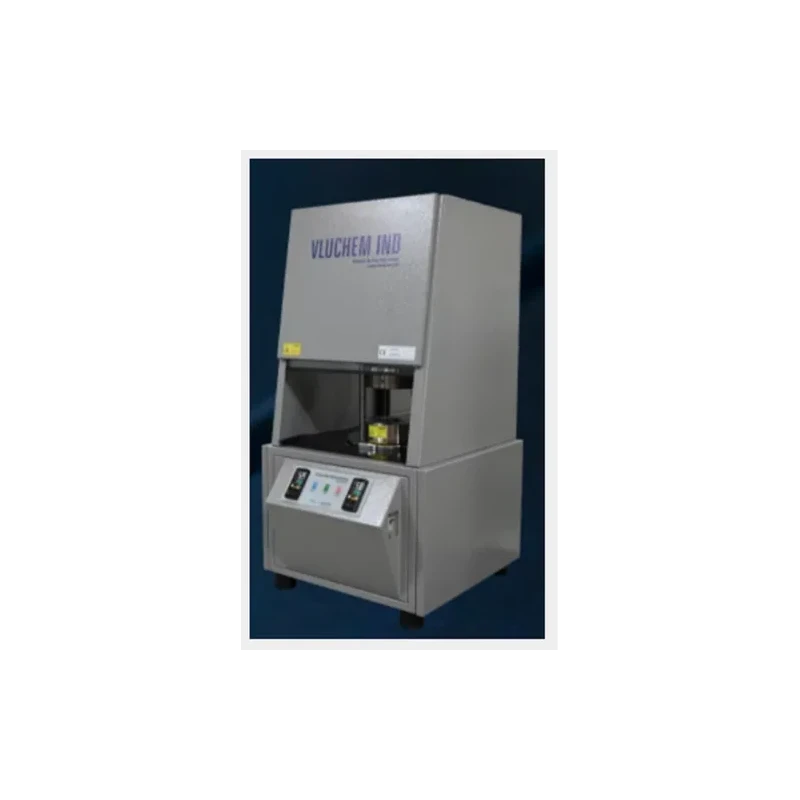

Oscillating Disk Rheometer ODR-10
Specifications
| Dimension | W615 X D685 X H1200 mm |
|---|---|
| Temperature range | Microprocessor controlled RT ~ 220C |
| Calibration | Calibration jig |
| Model | ODR-10 |
| Weight | 110 kgs |
| Motor | Induction Motor |
| Electrical | 200~230V| 3A| single phase| 50Hz/60Hz |
| Temperature Control | Available by hardware & software |
| Torque Range | 0~ 200 dNm |
| Rotor | Biconical Disk |
| Pneumatics | Min 4.5 bar/60 Psi |
| International Standard | ASTM D 2084 ISO 3417 and KS M 6687 |
| Oscillation frequency | 1.67Hz |
| Oscillation angle | 1| 3| 5 Mechanically adjustable |
| Protection for operator Temp. shield screen moving | Before test chamber closing |
| Test chamber moving | By Pneumatic |
| Motor Platen operation | Available by hardware & software |
| Temp. Sensor Type | PT 100 O |
| Data | Torque [dNm| lbf.in] Temperature [C] MH| ML Ts1| Ts2| Tc10(N)| Tc50(N)| Tc90(N) Automatic test results pass/fail function Trend graphs Tolerance limits by time and torque Data excel export function| Average| S-Dev ERP system upload option |
Key Features
- Bulk Quantities Available
Product Description
The Vluchem oscillating disk rheometer (ODR-10) for determining selected vulcanization characteristics of vulcanizable rubber compounds and measured according to ASTM D 2084, ISO 3417 and KS M 6687. ODR- 10 may be used for quality control in rubber manufacturing processes, for research and development testing of raw rubber compounded in an evaluation formulation, and for evaluating various raw materials used in preparing rubber compounds.The instrument is equipped with the highest torque measurement, and reliability, along with stiff hardware, a superior heater, temperature sensor, temperature controller, and Vluchems own designed data acquisition device and software.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The temperature range of this model is microprocessor controlled from room temperature (RT) to 220°C.
The torque range for the ODR-10 is from 0 to 200 dNm.
The dimensions of this unit are 615 mm in width, 685 mm in depth, and 1200 mm in height.
It is equipped with an induction motor.
The weight of this model is 110 kgs.
This unit requires an electrical supply of 200-230V, 3A, single phase, at 50Hz or 60Hz.
The oscillation frequency for this model is 1.67 Hz.
It complies with ASTM D 2084, ISO 3417, and KS M 6687 standards.
Temperature control is available through both hardware and software in this model.
This model uses a biconical disk rotor.
The minimum pneumatic pressure required is 4.5 bar (60 Psi).
It provides data on torque, temperature, and various test results, including trend graphs and tolerance limits, with options for Excel export and ERP system upload.
