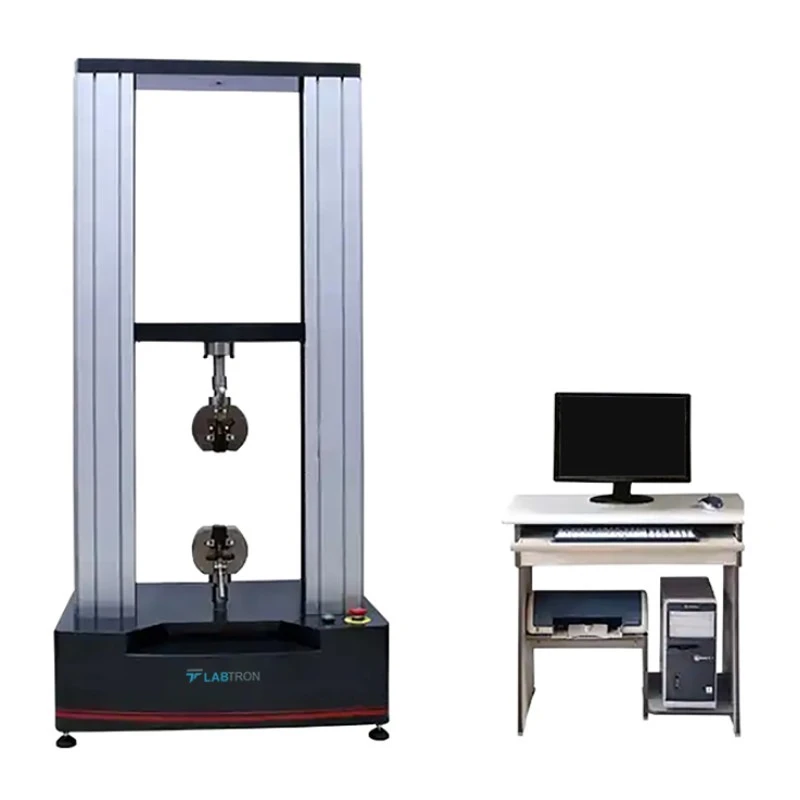

Labtron LUTM-A10 Universal Testing Machine
Specifications
| Country of Origin | UK |
|---|---|
| Brand | Labtron |
| Dimension | 770 x 465 x 1730 mm |
| Model | LUTM-A10 |
| Weight | 400 Kg |
| Type of Product | Universal Testing Machine (UTM) |
| Speed Range | 0.01 mm/min to 500 mm/min |
| Functions | Stretching / compression / bending / cutting / stripping / tearing |
| Test Width | 400 mm |
| Displacement Resolution | 0.001 mm |
| Test Resolution | Max force 1/300000 |
| Test Force Measurement Range | 2% to 100% |
| Maximum Force | 50 kN |
| Test Force Indication Relative Error | Less than 1% |
| Deformation Resolution | Maximum deformation 1/300000 |
| Deformation Range | 2% to 100% |
| Deformation Indication Relative Error | Less than 1% |
| Displacement Indication Relative Error | Less than ± 1% |
| Tensile Stroke | 700 mm |
| Compression Space | 700 mm |
| Servo Motor Power | 1 kW |
Key Features
- Device offers maximum force of 50 kN and has speed range of 0.01 mm/min to 500 mm/min
- Double space door structure for efficiently carrying out the mechanical properties testing
- Arc synchronous toothed belt and screw side drive ensures stable transmission with low noise
- Strong anti interference ability of the device enhances reliability and accuracy
- Simplified and easier data transfer guarantees smooth connectivity
- Safety alert against overload, overcurrent, overpressure, upper and lower limit displacement
- Internal controller for precise control of technical parameters
- AC servo system and servo motor enhances stability and reliability of the device
Product Description
The Universal Testing Machine LUTM-A10 is a stable transmission and low noise device, having a test force measurement range from 2% to 100% for enhancing its reliability and efficiency. Integrated with an AC servo system and servo motor for upgrading the quality of industrial goods, with a maximum force of 50 kN. Equipped with protection functions for preventing malfunctioning of the technical parameters and has an emergency stop option for the safety of the operator and machine.
Applications:
The Universal Testing Machine is widely used for testing the tensile strength and other mechanical properties across quality analysis firms, research, metallurgy, construction sector, and automobiles.
