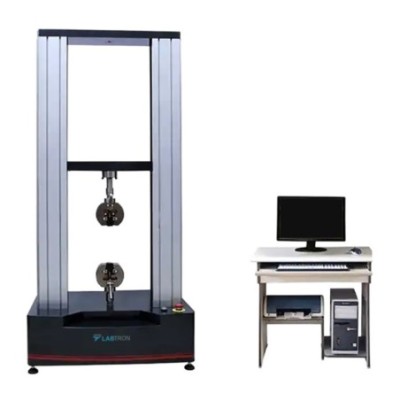

Servo Control Universal Tensile Testing Machine
Specifications
| Accuracy | plus minus 1% or better from 2% to 100% load cell Capacity |
|---|---|
| Frequency | 50/60 Hz |
| Capacity | 100Kn |
| Material | Mild Steel |
| Applications | Industrial |
| Phase | Single and Three Phase |
| Voltage (V) | 220/415 Volt |
| Usage | Used for testing Materials and other Materials under tension compression bending transverse and shear loads |
| Current | 5 Amp |
| Product Type | Semi-automatic |
| Movement | Servo Controlled Electro mechanical (smmoth and jerk tree movement through ball scraw) |
| Cross head speed | 0.5-500mn.min or better |
| Vertical columns | Minimum 2 nos |
| Load cell | 100kn 10kn and 1kn to be provided |
| Load cell resolution | 1/40000 of load cell |
Key Features
- Corrosion resistance
- Sturdy construction
Product Description
Test : Servo Controlled Eloctro Machanical Universal tensile Testing Machine.Conforms to standards : Tensile test as per IS 1828, BS ; 1610IS 7809 ( part 3.sec-1), IS 1554 (part 1&2): 1988. 8783 ( all parts ) etc.ESSENTIAL ACCESSORIES/ IGS/ FIXTURES:Following assential accessories/Jigs/ fustures will besupplied with machine.Extensometer for Rubber & plastic materials electronic extensometer of minimum gauge length 80mm, resolution 0.005mm & accuracy plus mains 1% Qty.01 no.Extensometer for Rubber & plastic materials electronic extensometer of minimum gauge length 50mm, resolution 0.001mm & accuracy plus mains 1% Qty.01 noClamping jaws/ grips for tensile Test (UTS, Y.S/PS and % E)Clamping jaes for gropping of wire of dia. 0.5mm to 5mm: 01 set 9 covering the mentioned soze of job.Clamping jaw for gropping of round specimen of diamter 10- 20mm : 01 set (covering the mentioned size of job.)Clamping jaws for gripping of flat specimen of thickness 0-20mm : 01 set (coverning the mentioned size of jab.)
- Noise free
- Longer service life
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load capacity of this model is 100 kN.
The accuracy is plus or minus 1% or better from 2% to 100% of the load cell capacity.
It operates at 220/415 Volt and is available in both single and three-phase configurations.
The cross head speed ranges from 0.5 to 500 mm/min or better.
The frequency specification is 50/60 Hz.
It features servo-controlled electro-mechanical movement, providing smooth and jerk-free operation through a ball screw.
The load cell resolution is 1/40000 of the load cell capacity.
The machine is constructed from mild steel.
This model is suitable for industrial applications involving material testing.
It has a minimum of two vertical columns.
