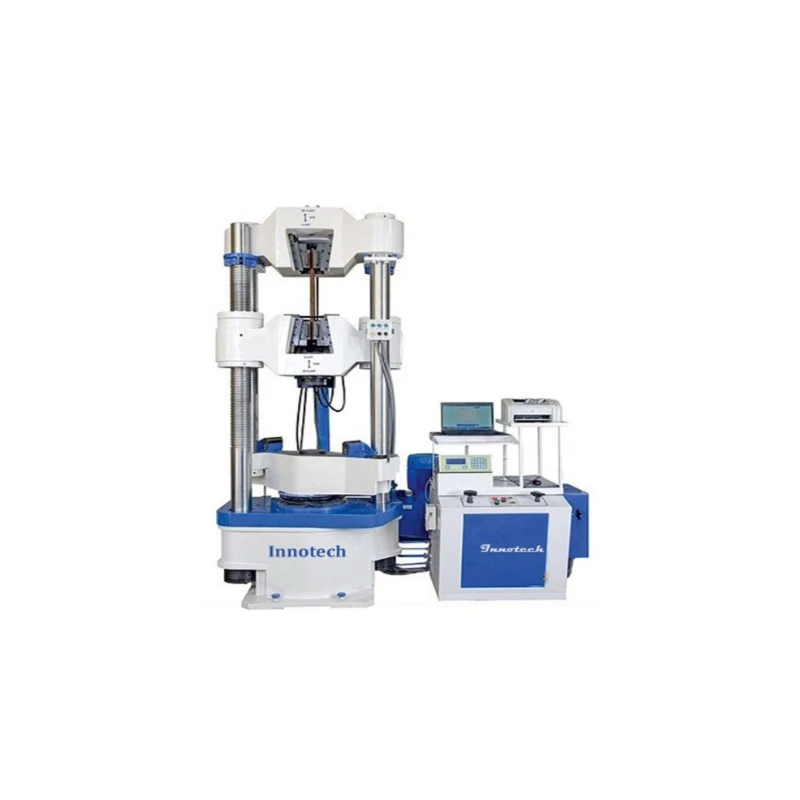

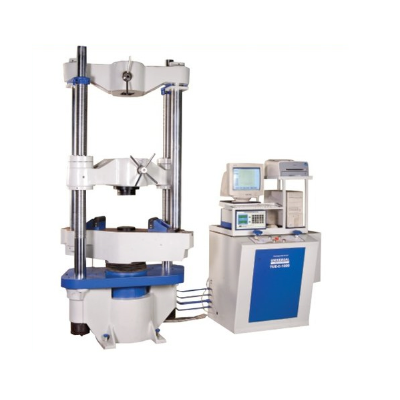

Universal Testing Machine 1000 KN

Application: UniversalTesting Machine it can perform all the tests right from compression, and bending tension and examine the material in all mechanical properties.Accuracy & Calibration: Machine is the calibrated over each of the measuring ranges in accordance with the procedure laid down in British standards 1610:1964 and IS: 1828 1975. Universal testing machines comply with grades A of BS: 1610-1964 and grade 1.0 of IS:1828 -1975 an accuracy of 1% is guaranteed from 205 of the load range selected to full load below 20% of the selected range the maximum permissible error is 0.2% of the full reading.The machine consists of Straining Unit , Control panel power, HydraulicControls, Load indicator System, Automatic Continuous Roll load- ElongationrecorderSOFTWARE FEATURES:The test can conduct:Tensile testCompression test bend TestSingle ShearDouble ShearProof test (Stress Vs 5 strain(if Extensometer is used)Vs DisplacementSpecimen types:RoundFlat hollowTor/ TMT steelSome date Entry points :Pre-load Date Entry to avoid slippage in graphFully customized data entryExtensometer Gauge length selection-10, 25,50 mmLower force data entry in %of maximum load to calculate proof stressUnits:Load: KN, kG, NTress: KNmm2, Nmm2 (Map),Kgmm2Displacement: mmBefore starting the test you will get all information entered regarding the test.Fully customized header& footer information for the test report.Facilities to search: ultimate Load Maximum Displacement %, Elongation%, Reduction in area, Breaking Load, breaking stress, Yield load, yield Strenght, 0.02% proof strength 0.5% proof, Strenght 1% proof, strength all proof loads, Youngs modulus

• Noise free
• Longer service life
