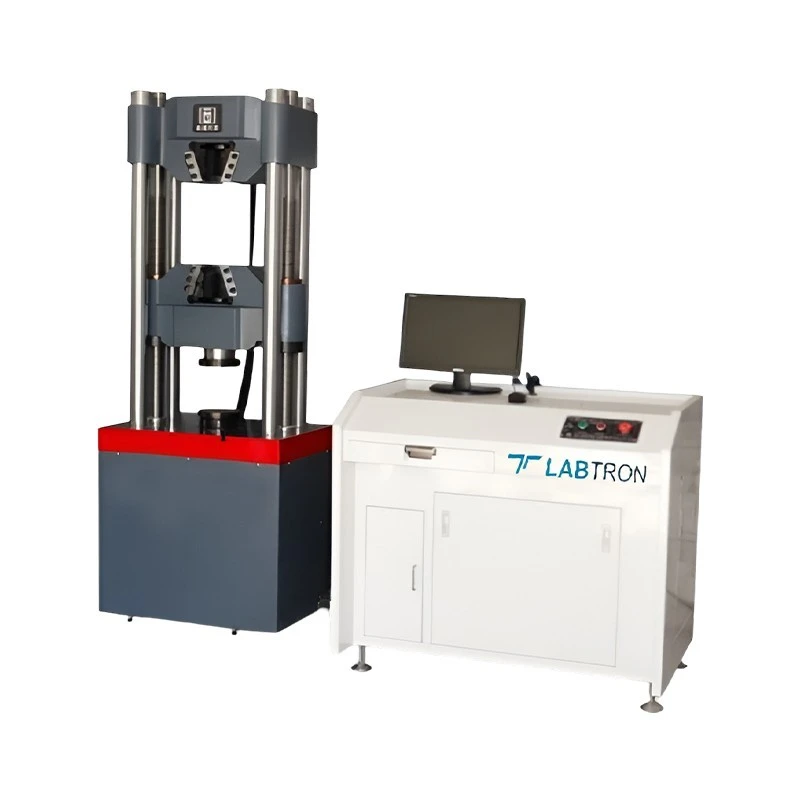

Labtron LUTM-A12 Universal Testing Machine
Specifications
| Country of Origin | UK |
|---|---|
| Sensors | Oil Pressure Sensor / Photoelectric Sensor / Extensometer |
| Brand | Labtron |
| Model | LUTM-A12 |
| Type of Product | Universal Testing Machine (UTM) |
| Maximum Testing Force | 600 kN |
| Testing Force Range | 2% to 100% FS |
| Force Indication Value | ±1% |
| Max Stretching Space | 520 mm |
| Max Compression Space | 420 mm |
| Clamping Thickness of Flat Sample | 0 to 30 mm |
| Clamping Thickness of Round Specimen | Φ13 to Φ40 |
| Maximum Spacing of Curved Support | 400 mm |
| Column Spacing | 460 mm |
| Accuracy of Piston Displacement Indication | ±0.5% FS |
| Resolution of Deformation Measurement | 0.001 mm |
| Accuracy of Deformation Measurement | ±0.5% |
| Oil Pump Motor Power | 2.2 kW |
| Beam Moves Motor Power | 0.37 kW |
| Host Size | 730 mm × 570 mm × 1900 mm |
| Control Cabinet Size | 1010 mm × 650 mm × 870 mm |
| Console Weight | 2000 kg |
Key Features
- Easy PID closed loop control
- Pluggable PC card with analog amplifier
- Integrated measurement and control system
- Low noise hydraulic clamping oil source
- Multi-functional software
- Strong graphics and test data storage
- Switchable control mode
- Multiple display mode
Product Description
The Universal Testing Machine LUTM-A12 can test forces between 2% and 100% FS, with a maximum force of 600 KN. It has advanced automation control via electro-hydraulic servo. Its cylinder-mounted host frame is low, making installation and transportation simple. It has servo oil, a PC controller, sensors, and software to ensure dependable functioning. It adjusts the entire digital circuit using computer bus technology. It includes manual buttons and independent current units in a cabinet. Our universal testing apparatus has built-in protective features for piston limiting, overload, oversetting, and power outage.
Applications:
Our Universal Testing Machine includes metal test bars, fasteners, rebar, and different building materials. It evaluates important characteristics including tensile strength, yield strength, elastic modulus, and bending strength precisely.
Standard Accessories:
- Host Tester: 1 Set
- Oil Cylinder: 1 Set
- Electrical Control Box: 1 Set
- Electro-Hydraulic Servo Full Digital PC Controller: 1 Set
- Full Digital Servo Control Software: 1 Set
- Controller Electrical Automation Control Components: 1 Set
- Computer: 1 Set
- Printer: 1 Set
- Electro-Hydraulic Proportional Servo Valve: 1 Set
- Oil Pump: 1 Set
- Motor: 1 Set
- Hydraulic Control Valve: 1 Set
- Solenoid Valve: 1 Set
- Sensor: 1 Set
- Fixtures: 3 Sets
- Quality Certificate: 1 Piece
- Operating Manual: 1 Piece
- Test Report: 1 Piece
- Packing List: 1 Piece
