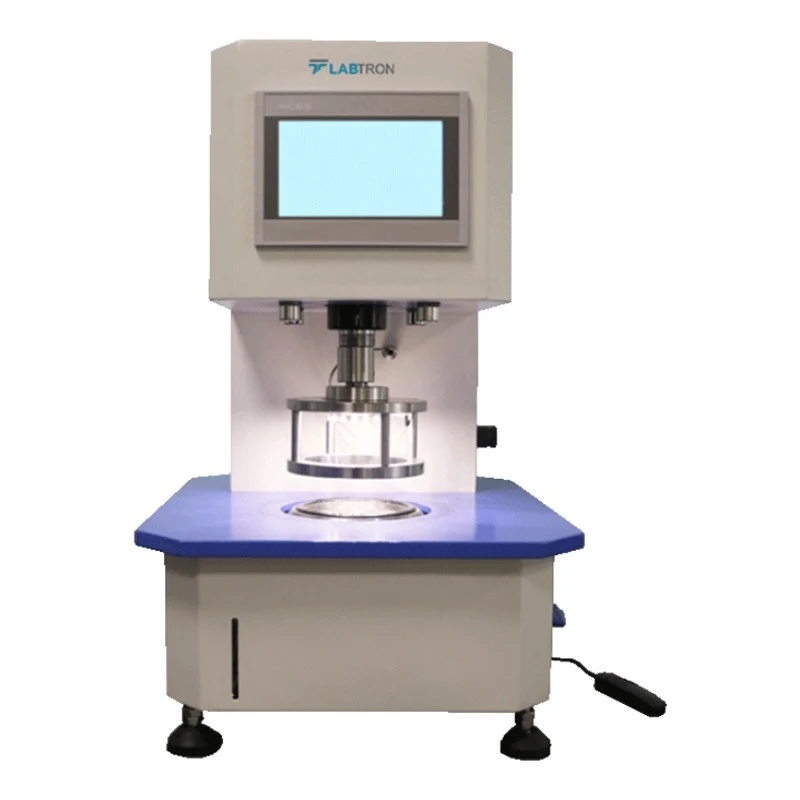

Labtron LHPT-B10 Hydrostatic Pressure Testing Machine
Specifications
| Country of Origin | UK |
|---|---|
| Measurement Range | 1 kPa to 500 kPa |
| Brand | Labtron |
| Power Supply | AC220V 50Hz / 500W |
| Dimensions | 500 x 440 x 680 mm |
| Model | LHPT-B10 |
| Printer | Thermal Micro Printer |
| Weight | 70 KG |
| Measurement Accuracy | 0.2% F. S |
| Type of Product | Testing Instrument |
| Display Mode | Color Screen |
| Working Mode | Pressurization Method / Constant Pressure Timing / Constant Pressure Timing / Water Seepage and Leakage / Deflection Test |
| Sensor protection | Overload Self-Protection |
| Pressure Display Resolution | 0.01 kPa |
| Sensor Test Accuracy | ≤ 1% (5% to 100% within the full-scale range of a single sensor) |
| Specimen Grip Area | 7.8 cm² (optional) |
| Experimental Area | 100 cm² |
| Pressurization Rate | 1 kPa to 100 kPa/min |
| Testing Unit | pa / kPa / cmH2O / mmHg |
Key Features
- Touchscreen control with dual language menus
- Man-machine dialogue mode for easy operation
- Built-in thermal printer for quick onsite printing
- Servo motor drive system with microcomputer control
- High-precision pressure sensor
- Automatic overload protection
- Built-in LED lighting for observing water droplets
- Host touch screen or desktop computer control
Product Description
The Hydrostatic Pressure Testing Machine LHPT-B10 tests the integrity and strength of materials under pressure of 1kPa to 500kPa. It offers a wide range of pressurization rates with step-less adjustment. Includes dynamic feedback adjustment that prevents pressure overshoot. Provided with a pneumatic clamp that ensures even stress distribution and prevents sample damage. Shows automatic identification and shutdown function in case of sample rupture.
Applications:
The Hydrostatic Pressure Testing Machine is used to test the waterproof properties of fabrics such as canvas, medical non-woven material, coated fabric, geosynthetic materials, cloth, tent cloth, tarpaulin, and rainproof clothing fabric.
Standard Accessories:
- Mainframe: 1 piece
- Manual: 1 piece
- Quality Certificate: 1 piece
- English operation software: 1 piece
- Cable connection with PC: 1 piece
- Calibration plate: 1 piece
- Rubber ring: 1 piece
- Plastic pipe: 1 piece
- Remote switch: 1 piece
- Beaker: 1 piece
- Funnel: 1 piece
