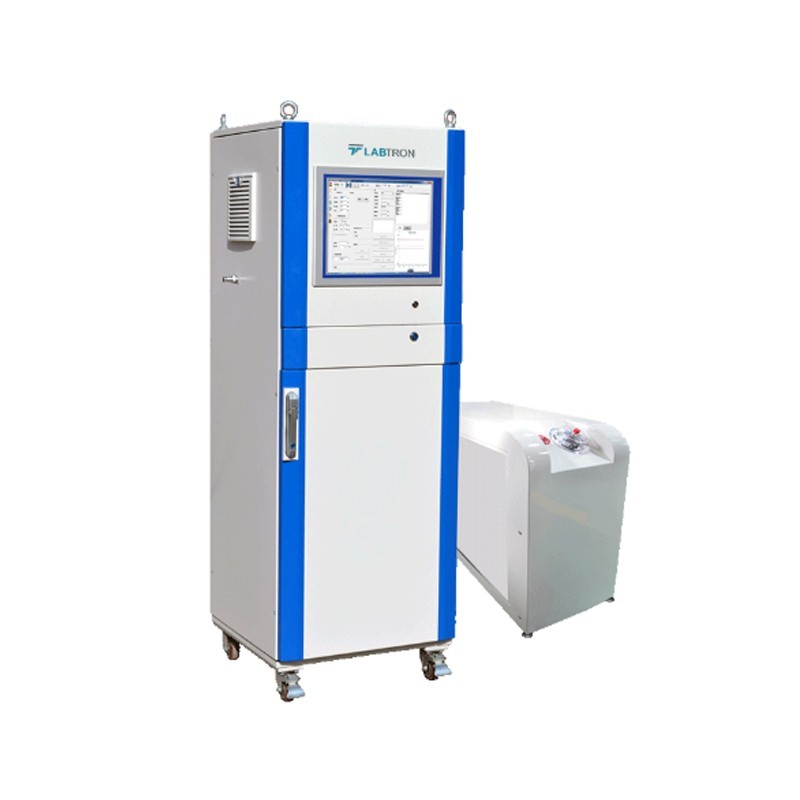

Labtron LHPT-A10 Hydrostatic Pressure Testing Machine
Specifications
| Country of Origin | UK |
|---|---|
| Display | 4.3-inch full-color liquid crystal screen |
| Measuring range | 4% to 100% FS |
| Brand | Labtron |
| Model | LHPT-A10 |
| Sampling frequency | 5 times per second |
| Type of Product | Testing Instrument |
| Communication rate | 4800 bps x 11250 bps |
| Maximum Pressure | 16 MPa |
| Control Mode | Computer control |
| Channels | 6 |
| Time Range | 0 to 9999 s |
| Pump Capacity | 11L/min |
| Communication Interfaces | RS485 (multi-channel mode) or RS232 TTL level interface with CRC check |
| Timing accuracy | ±1% |
| Pressure Control Range | 0.2-16 MPa |
| Pressure Control Accuracy | ±1% |
| Test Stations | 10 stations |
| Time Resolution | 1 ms |
| Minimum Set Unit | min |
| Pressure Indicator Units | MPa / bar / or PSI |
| Pressure Display Resolution | 0.001 MPa / 0.01 bar or 1 PSI |
| High-pressure pipe connections | 1/4" BSPT |
| Allowable Error Limit | Within ±2% of FS |
| Routine Code | Standard C language software |
| Default Communication Rate | 57600 bps |
| Short and Long High-Pressure Hose | Temperature resistance 100 °C / Pressure resistance 63 MPa |
| Tank Maximum Temperature | 95 °C |
| Tank Temperature Accuracy | ±1 °C |
| Tank Temperature Uniformity | ±0.5 °C |
| Tank Current | 24V/1A |
| Tank Power Consumption | 9.27 kW |
| Tank Power Supply | 380V / 50Hz |
| Tank Internal Size | 2800 x 1800 x 1800 mm |
| Tank External Size | 2800 x 2000 x 2500 mm |
| Tank Overall Dimension | 3500 x 2000 x 2200 mm |
| Refrigeration System Temperature | 5 to 40 °C |
| Refrigeration System Capacity | 30523W |
| Refrigeration System Power | 6.5 kW |
| Refrigeration System Power Supply | 380V / 50Hz |
| Refrigeration System Dimension | 1380 x 800 x 1500 mm |
| Main Unit Power Supply | 220V / 50Hz |
| Main Unit Dimension | 600 x 600 x 1620 mm |
| Main Unit Weight | 230 kg |
Key Features
- Data protection function
- Double tube circuit structure
- Integrated modular assembly
- Equipped with 10 interfaces along its wall
- Insulation is provided by solid foam
- Tank cover fitted with an air cylinder
- Separate heating chamber for maintaining heating elements
- 1.5-inch stainless steel pipe for circulating system
- Three water level switches
- Suspension bars are provided
- Control mode utilizes photoelectric isolation output
Product Description
The Hydrostatic Pressure Testing Machine LHPT-A10 is equipped with a pressure generation system capable of generating high pressure of 16 MPa. Its circulation pump facilitates two-way circulation with a pump capacity of 16L/min. The tank incorporates a temperature maintenance system and heating unit. Constructed with a stainless-steel internal bladder and outer covering, it offers durability and reliability. Additionally, at both ends of the tank, there are loop devices and heating units for better performance.
Applications:
The Hydrostatic Pressure Testing Machine performs immediate bursting tests and extended pressure tests on various components, such as pipes, vessels, valves, and fittings, under hydraulic pressure. It is used in industries like manufacturing, construction, oil and gas, and plumbing.
Standard Accessories:
- Electromagnetic Valve: 20 (On the machine)
- Pressure Transmitter: 10 (On the machine)
- Electro Connecting Pressure Gauge: 1 (On the pump station)
- High-Pressure Plunger Pump: 1 (On the pump station)
- Single Position Accumulator: 10 (On the machine)
- Pressure Station Accumulator: 1 (On the machine)
- Short High-Pressure Hose: 10 (With the machine)
- Long High-Pressure Hose: 10 (With the machine)
- Industrial Computers: 1 (On the machine)
- Printer: 1 (With the machine)
