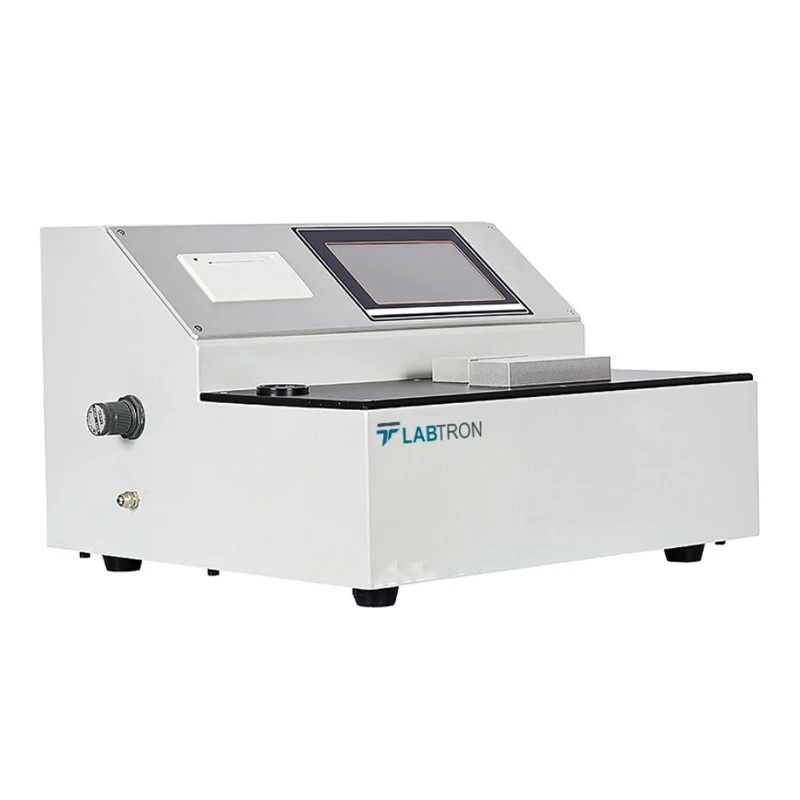

Labtron LSCT-A10 Short Span Compression Tester
Specifications
| Country of Origin | UK |
|---|---|
| Resolution | 0.1 N |
| Power Consumption | 50 W |
| Display | 7-inch color touchscreen |
| Measuring range | 10 to 500 N |
| Brand | Labtron |
| Power Supply | AC 100 to 240 V / 50/60 Hz |
| Dimension | 530 × 425 × 305 mm |
| Net Weight | 34 kg |
| Working Temperature | 10℃ to 35℃ |
| Model | LSCT-A10 |
| Printer | Built-in thermal printer |
| Storage | 5000 sets of batch data |
| Type of Product | Compression Testing Machine |
| Communication Interface | RS232 (Default) / USB / WIFI (optional) |
| Test Speed | 3 mm ± 1 min |
| WORKING HUMIDITY | ≤ 85% |
| Indication error | ± 1% |
| Gas Source | ≥ 0.5 MPa |
| Specimen Holding Force | 2300 ± 500 N |
| Gauge Pressure | 0.3 to 0.45 MPa |
| Indication Range | 5% to 100% |
| Indication Variability | ≤ 1% |
| Free Spacing of Specimen Clamps | 0.70 ± 0.05 mm |
| Specimen Holding Surface Size | 30 × 15 mm |
Key Features
- Double cylinders with pneumatic clamping
- Built-in thermal printer
- Automatic data storage on power failure
- Displays the real-time force value-displacement curve
- RS232 Communication Interface
Product Description
The Short Span Compression Tester LSCT-A10 offers a measuring range of 10 to 500 N with a holding force of 2300 N. It utilizes a 24-bit analog-to-digital converter and an ARM processor for fast and accurate sampling. Driven by a stepping motor for accurate and stable speed, with quick return capability. Allows for both vertical and horizontal tests within the same batch and can print average values. Our tester adheres to the international standard ISO 9895 and the national standard GB/T 2679.10 for the short-distance compression test method of paper and cardboard.
Applications:
Our Short Span Compression Tester’s primary use is in the manufacturing of paper and cardboard for cartons. It is also applicable for testing paper sheets prepared in laboratories during pulp testing.
Optional Accessories:
- RS232 interface and computer software × 1 set
- Punch Standard Distance Cutter × 1 set
