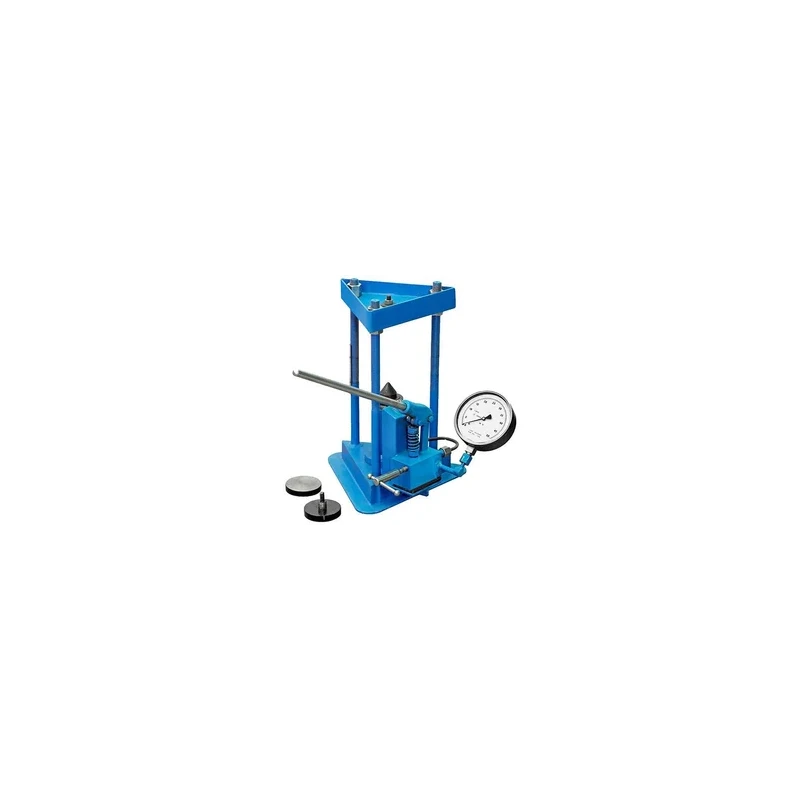

LaboratoryPoint Load Index Tester
Specifications
| Country of Origin | India |
|---|---|
| Capacity | 100 kN |
| Material | CI |
| Applications | Laboratory |
| Color | Blue |
| Product Type | Testing Machine |
| Model | SMEW-0176 |
| Contains | Loading Frame fitted with Hydraulic Jack hand operated Capacity 100 KN Load Gauge 25KN (2500 kgf) to read upto 0.25KN (25kgf) Load Gauge 100KN (10000 kgf) to read upto 0.50KN (50kgf) Conical Loading Platens. Diaphragm Bolt. |
Key Features
- High performance
Product Description
Point Load Index Tester Specification: Point Load Index tester, a rock testing instrument for determining the Diametrical Point Load Strength Index of rock cores and Irregular Lumps which may be tested without any treatment. The Point Load Test is primarily as index Test for strength classified of rock materials. This instrument is mainly intended for field measurements on rocks specimen, but it can be used in the laboratory. The results of the test may also be used to predict the uniaxial compressive strength of rock from correlations. The apparatus is light and portable and can be used in the laboratory as well as in the fieldFeatures:Equipment is light and portableRock core specimens can be tested without any preparationThe instrument can be used in the laboratory as well as at the drilling siteThe results of the test may also be used to predict the uniaxial compressive strength of rock.With this instrument, a wide range of core size can be testedThe frame has adequate adjustments to align perfectly the loading axis passing through the centre of the bearing plates and loading platens at the position of the ram of the hydraulic jack
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load capacity of this model is 100 kN.
It is designed to test rock cores and irregular lumps without any preparation.
The results can be used to predict the uniaxial compressive strength of rock from correlations.
The tester is constructed from CI (cast iron) and is designed to be light and portable.
It contains a loading frame fitted with a hand-operated hydraulic jack.
It includes a 25 kN load gauge that reads up to 0.25 kN and a 100 kN load gauge that reads up to 0.50 kN.
Yes, it is intended for both laboratory measurements and field testing on rock specimens.
The tester is colored blue.
The frame has adequate adjustments to align the loading axis perfectly through the center of the bearing plates and loading platens.
The model number is SMEW-0176.
This testing machine is specifically used for laboratory applications related to rock strength testing.
The country of origin for this model is India.
