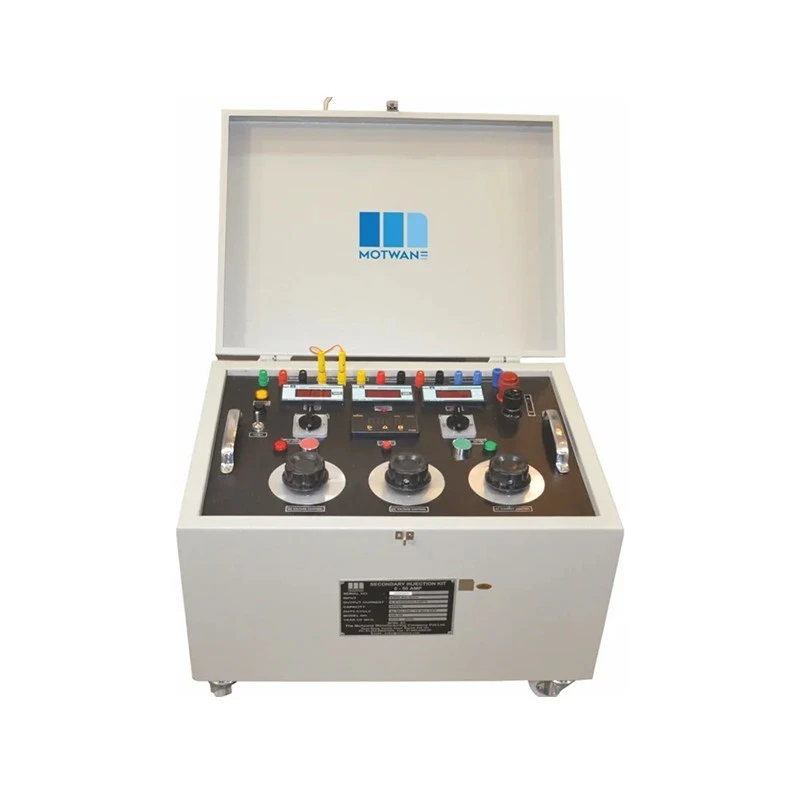

Motwane MOT-SIK20 Relay Test
Specifications
| Country of Origin | India |
|---|---|
| Display | LED Seven Segment Digital Display Meters |
| Brand | Motwane |
| Operating Temperature | 0-55°C / 5-90% RH Non-Condensing |
| Model | MOT-SIK20 |
| Timer Range | 0.0001-9999 seconds / auto-ranging / digital timer |
| MAIN SUPPLY | 230 Vac / 50/60Hz ±10% / 1 Phase |
| Duty Cycle | 30Min ON / 10Min OFF |
| Output Current | 0-20A |
| Indications | Bright LED for Power ON & Test ON |
| Mode of Operation | Manual |
| Voltage Accuracy | ±1.5% of full scale reading ±2 digits |
| Current Accuracy | ±1.5% of full scale reading ±2 digits |
| Output AC Voltage (V) | 0-250V AC |
| Voltage Resolution | 1V |
| Burden | 400VA |
| Protection and Safety | Fast blow glass fuse / Overcurrent tripping |
| Current Resolution | 1% of the full scale |
| Timer Accuracy | ±0.05%±2 Counts |
| Selectable Current Ranges | 0-1-5-10-20A |
| Output DC Voltage (V) | 0-250V DC |
| Output Current Leads | PVC insulated 10 sq. mm cu cable 2X1.5mtr lug at both ends |
Key Features
- Compact unit with a rugged case
- Variable model and selectable output current up to 200A/600VA
- Output voltage 0-250V AC/DC
- Auto cut off upon tripping relay
- Timer range: 0.0001-9999 seconds, auto-ranging, digital timer with an accuracy of up to ±0.05%±2 Counts
- Wheel mounted for easy transportation
Product Description
Motwane’s RTS Series, also known as Secondary Current Injection kit, is a portable and cost effective solution to test voltage & current based relays. It is designed with highly accurate digital meters for testing protective devices. The MOT-SIK set provides a high burden kit to test electromechanical relays. SIK series can provide up to 200A for CT and MCB testing. The compact & rugged design makes it easy to move it in the relay room.
Applications
The secondary current injection test of solid-state units can be performed by a specially designed power supply unit. Secondary injection tests are always done prior to primary injection tests. The purpose of secondary injection testing is to prove that the correct operation of the protection scheme is downstream from the inputs to the protection relay(s). It is done to minimize the risks during the initial testing of the LV side of the equipment. It should be noted that the secondary current injection method only tests the solid-state trip unit logic and components like a relay, miniature breaker, etc.
- Over Current Relay
- Undercurrent Relays
- Overvoltage Relays
- Under Voltage Relays
- Thermal Relays
- Earth Fault Relays
- Electromechanical Relays
- Miniature Circuit breaker etc.
Available on EnvMart, these Relay Test Kits are designed for precise testing and calibration of protective relays in electrical systems. Motwane Relay Test Kits ensure accurate performance verification, making them essential for power utilities, industrial maintenance, and testing laboratories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The output current range of this model is selectable from 0 to 20A, with specific ranges of 0-1-5-10-20A.
It can output both AC and DC voltage ranging from 0 to 250V.
The timer range is from 0.0001 to 9999 seconds with an accuracy of ±0.05%±2 Counts.
The operating temperature range is 0-55°C with a relative humidity of 5-90% RH, non-condensing.
The duty cycle for this model is 30 minutes ON followed by 10 minutes OFF.
It includes a fast blow glass fuse and overcurrent tripping for protection and safety.
The voltage accuracy is ±1.5% of full scale reading ±2 digits, while the current accuracy is also ±1.5% of full scale reading ±2 digits.
The main supply requirement is 230 Vac at 50/60Hz ±10%, single phase.
It is designed for secondary current injection testing of protective relays, including overcurrent, undervoltage, and earth fault relays.
The MOT-SIK20 is manufactured in India.
