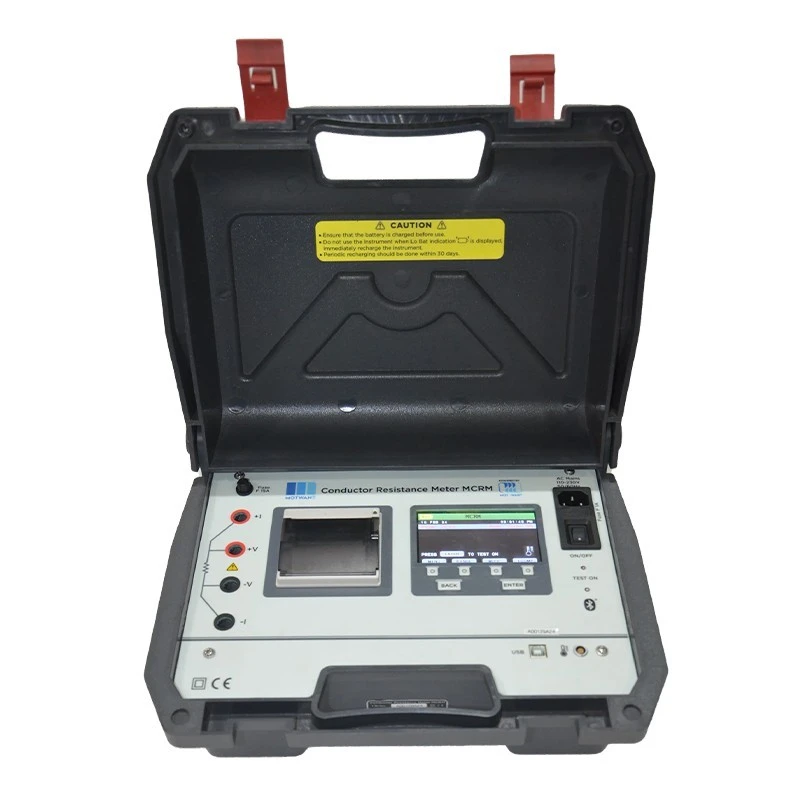

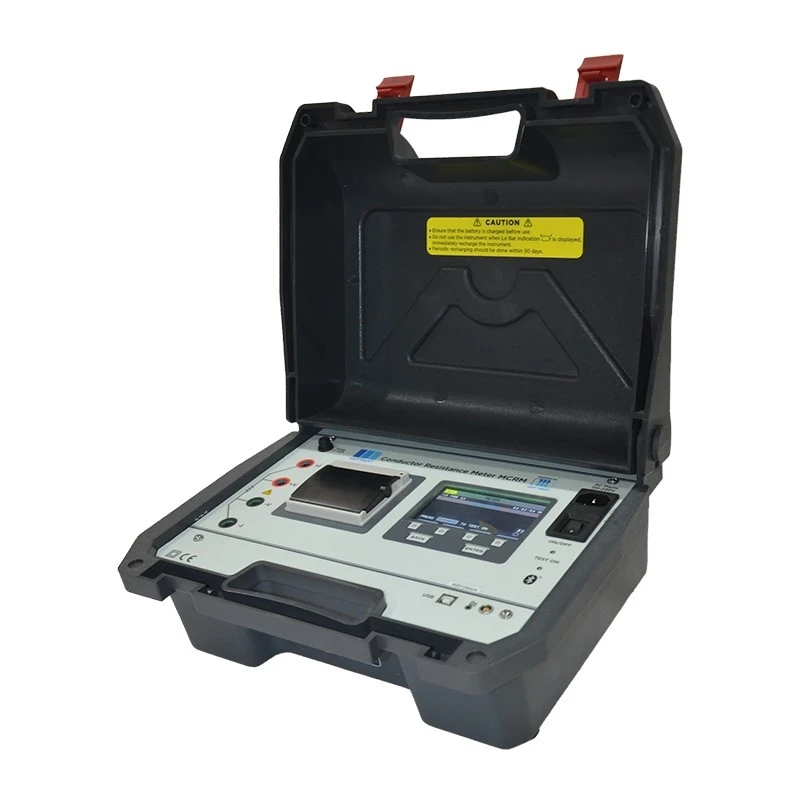

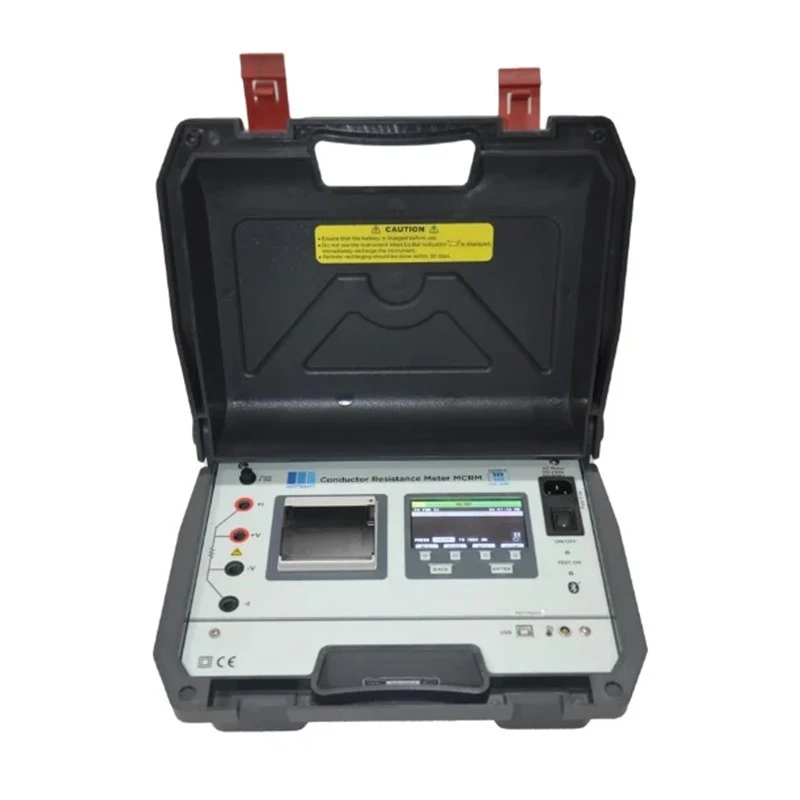

Motwane MCRM Conductor Resistance Meter
Specifications
| Country of Origin | India |
|---|---|
| Relative Humidity | 95% RH at 40°C max. (Non-Condensing) |
| Brand | Motwane |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -10°C to 60°C |
| Model | MCRM |
| Printer | Built-in thermal printer |
| Safety Standards | EN 61010-1 |
| Mains Power Supply | 110/230 Volt AC / 50/60Hz |
| Battery power supply | Li-Ion Battery 14.8 V |
| PC Interface | USB |
| EMC Standards | EN 61326-1 |
| Report Storage | 1000 Reports |
| Test Current Injection | 10A / 1A / 100mA / 10mA / 1mA / 100μA |
| Test ON Alert | BEEP |
| Measurement Category | CAT II (1000V) / CAT III (600V) Reinforced insulation |
| Temperature Correction | Manual entry or Temperature Probe |
| Temperature Channel | 1 |
| Dimensions Device | 368 mm (L) x 283 mm (W) x 188 mm (H) Approx. |
| Weight Device | 5.5 Kg Approx. (with Test Lead) |
| Dimensions Wire Fixture | 1210 mm (L) x 210 mm (W) x 150 mm (H) Approx. |
| Weight Wire Fixture | 6 Kg Approx. |
Key Features
- 4.3” Color TFT display with backlit
- Resolution 0.1 μΩ on 2 mΩ range
- Best Measurement Accuracy of +0.03 %
- Mains cum Battery operated.
- High measurement current (10A) for faster settling of measured values on low resistance.
- True 4 wire resistance measuring technique
- Pulse Mode, Auto Hold Operation.
- Bluetooth interface and cloud connectivity through Motware app
- Inbuilt thermal paper printer
- Low Battery indication to prevent deep discharge of internal recharging battery.
- Temperature Measurement & Correction
Product Description

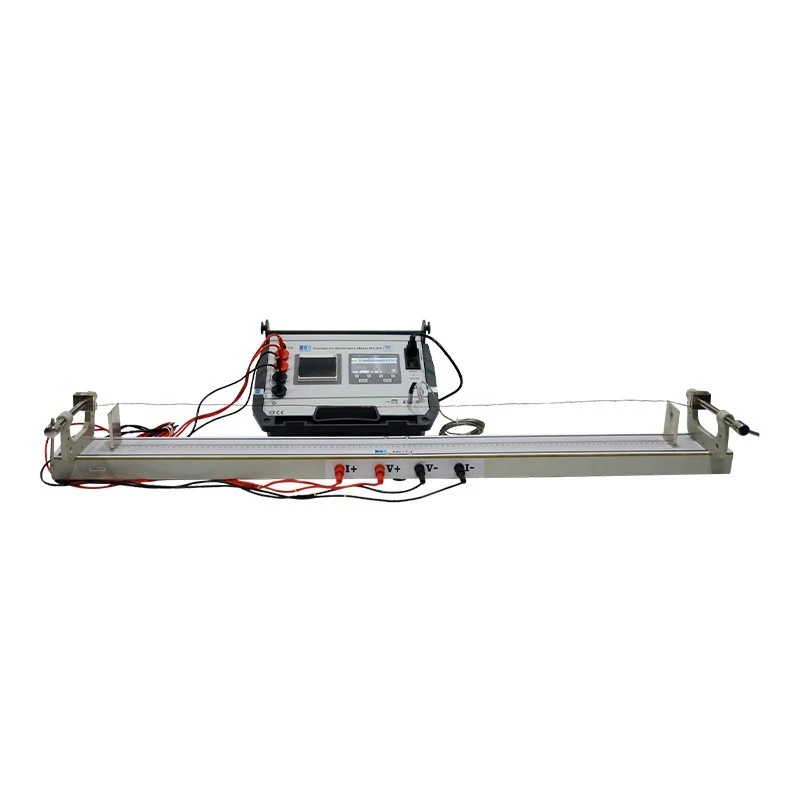

Motwane Conductor Resistance Meter determines the DC resistance of conductors for plain copper, metal coated copper, aluminium and aluminium alloy, circular or shaped. MCRM is provided with maximum 10 A current injection which is useful for the measurement of very low resistance from 0.1μΩ and works on true Four terminal measurement. The MCRM has a 4.3” Color TFT display with backlit display and features like Temperature measurement & Correction, Length Correction facility and protection against back EMF for high inductive loads.
Applications:
High Precise micro ohmmeter used for measuring accurate low resistance with high accuracy, makes it a reliable tool for Quality Assurance, easy operation and also makes it a very handy for quick maintenance checks for process industries. Typical It is very useful in design, test, maintenance, QC/QA and production.
Conductivity measurement of cables.
Available on EnvMart, these Resistance Meters are designed for precise measurement of electrical resistance in circuits and components. Motwane Resistance Meters deliver high accuracy and reliability, making them essential for electrical testing, maintenance, and quality control applications.
