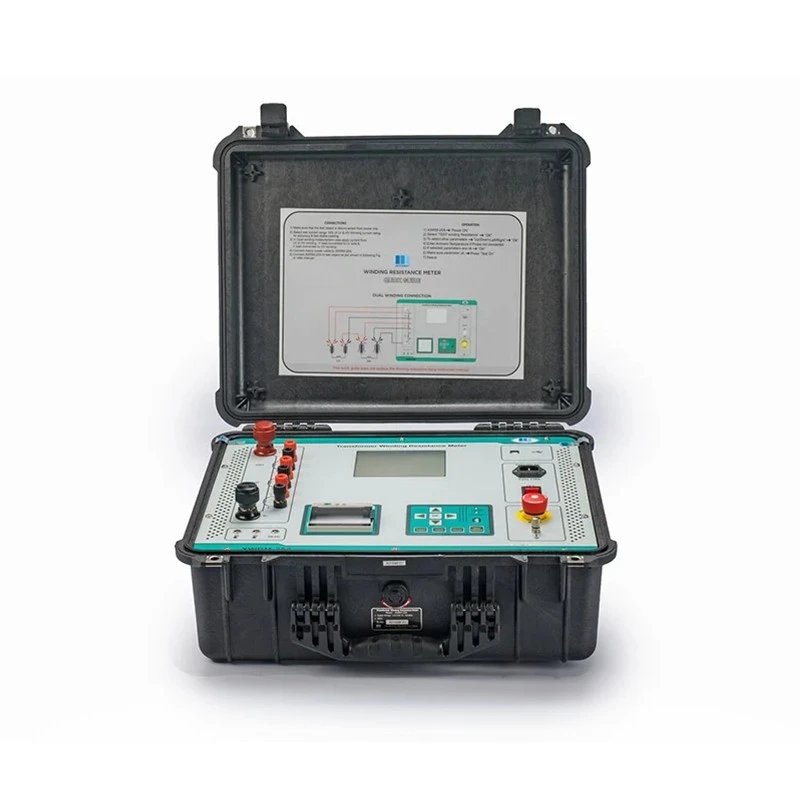

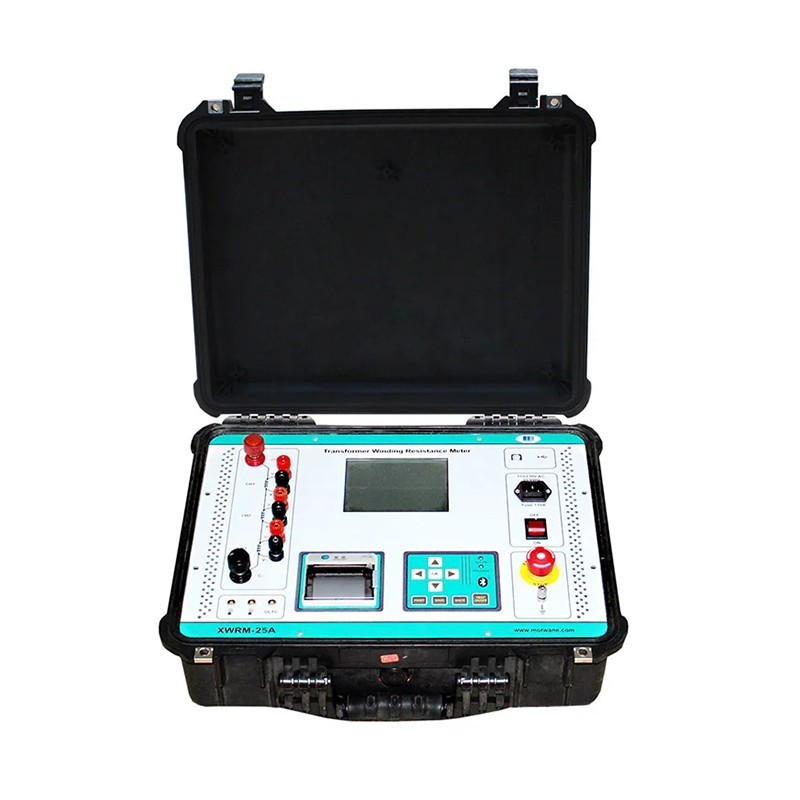

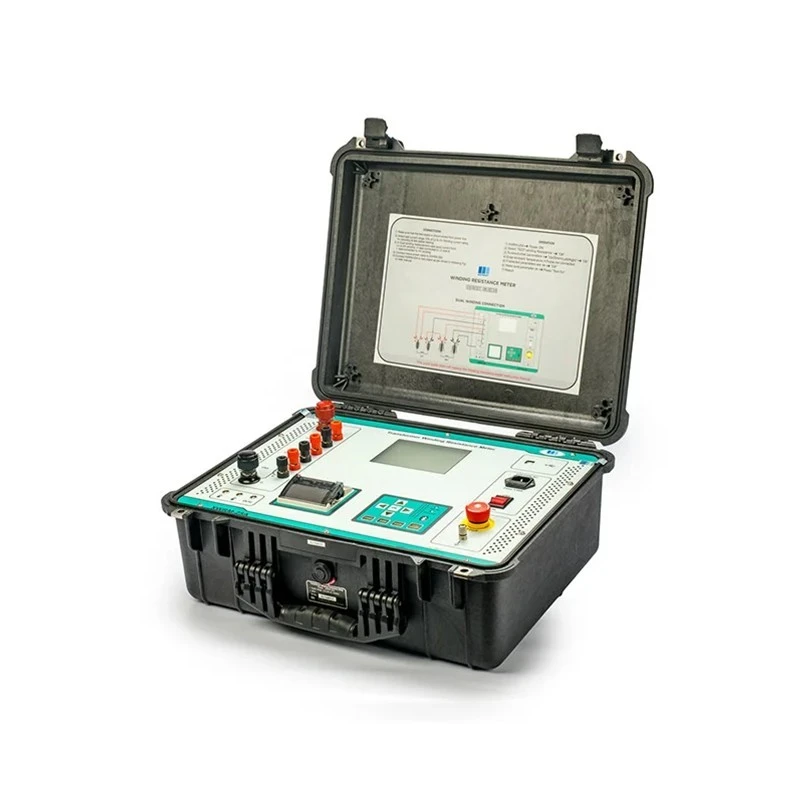

XWRM-25A transformer winding resistance meter is designed for accurate & fast measurement of the highly inductive loads such as transformers, reactors, generators, HT motors, etc. The selectable smooth DC test current is useful to test transformers with different power ratings. The higher open-circuit voltage feature saturates the core quickly to get stable readings. The three resistance measurement channels are used for the simultaneous measurement of the three windings to reduce the testing time. The heat run test feature can be availed with the software for a graphical representation. It also has a demagnetization facility, which eliminates the magnetic remanence effect. XWRM-25A can test the make-before-break operation of on-load tap-changers which can help you analyze the OLTC switch contracts. Backed with EMF protection against high inductive kickbacks, the large LCD with a keypad helps in easy operations. It also has an internal memory for 2000 test results. The software is designed for detailed report generation and control. The in-built thermal printer provides onsite report printing. Ask for a quote to know our transformer winding resistance meter price.

XWRM-25A has a Bluetooth module with MOT-WARE mobile app for remote access of the testing data & storage in the cloud for further analysis & record purposes.

Applications

The winding resistance test is an essential test that enables the identification of shorted turns, loose connections, or deteriorating contacts in tap changers and measurements on all tap changer positions. The transformer’s conditions can be compared to previous or factory test values for evaluating the condition of the current windings and leads. The accepted criteria for the field-measured values should be within 3% of the factory values. A change higher than the accepted criteria is indicative of short-circuited turns, poor joints, or bad tap changer contacts. This test should be performed during acceptance testing and can also be performed while other maintenance electrical tests are conducted.

• Power Transformer
• Motor and Generator
• Reactor

Standard Accessories

• 15 meters measuring test lead set
• Mains power cord
• Short links – 2Nos.
• Earthing lead
• User manual
• Calibration certificate
• Carry case for test leads

Optional Accessories

• OLTC probe
• PC Software
• USB cord
• Temperature sensor
• Bluetooth application via cloud based Motware application
