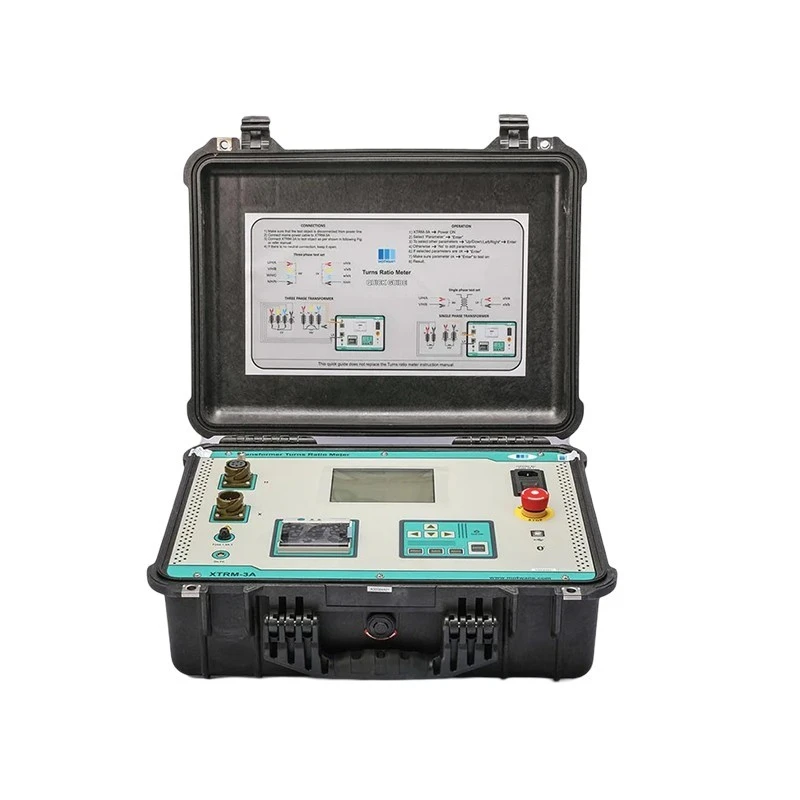

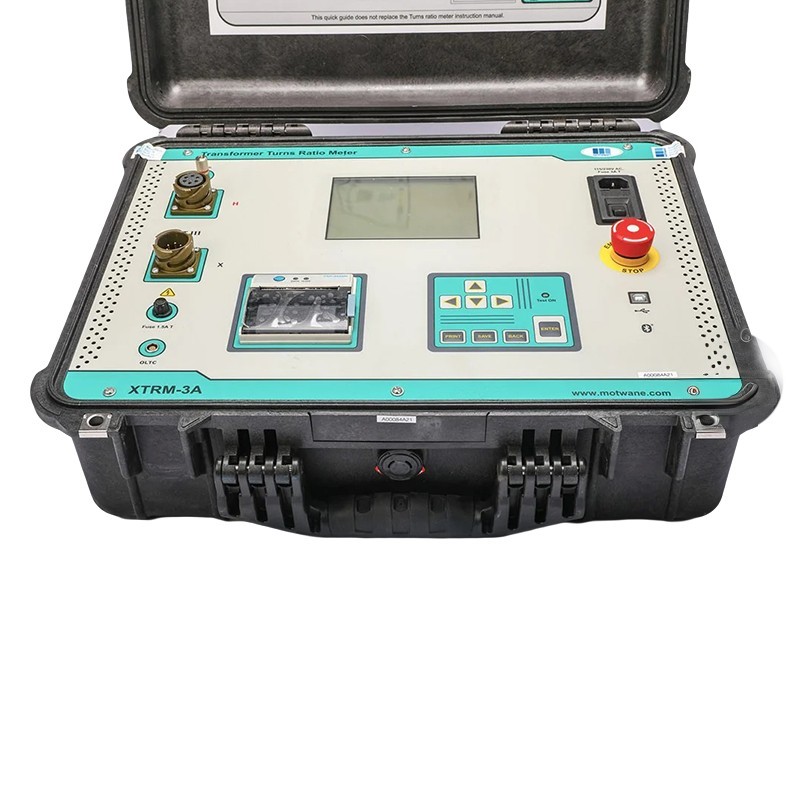

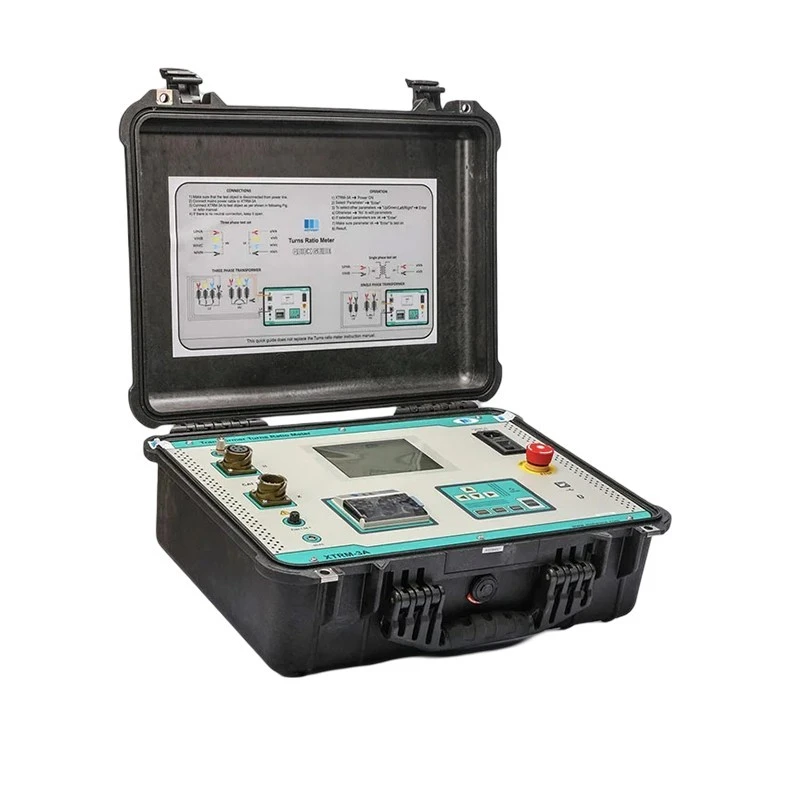

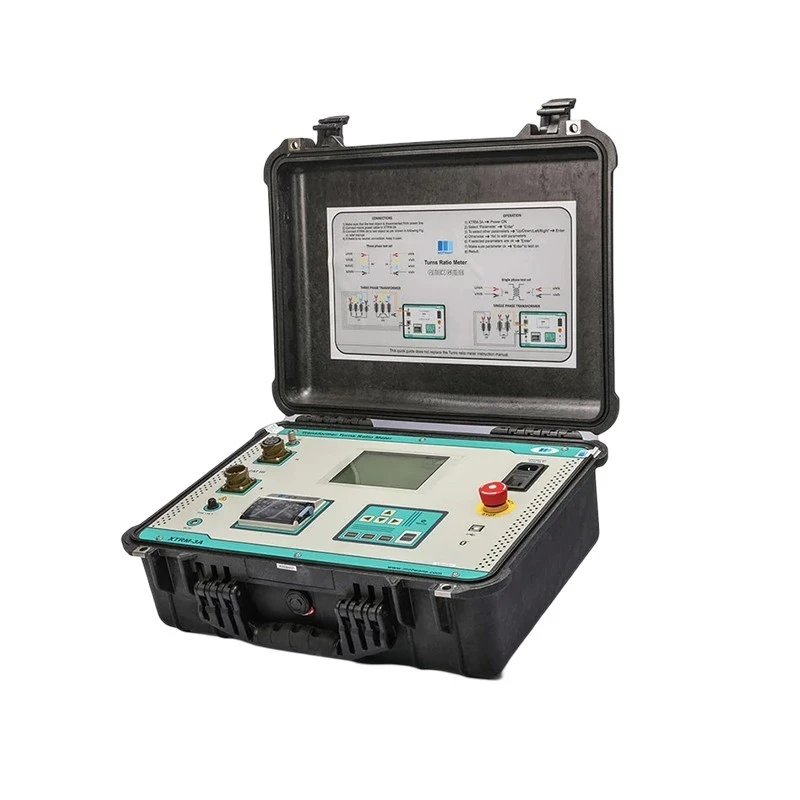

Motwane XTRM-3 Transformer Turns Ratio Meter
Specifications
| Country of Origin | India |
|---|---|
| Display | LCD |
| Relative Humidity | ≤ 95%RH at 40 ºC max (non-condensing) |
| Brand | Motwane |
| Power Supply | 115V/230V AC / 50/60 Hz |
| Operating Temperature | 0 ºC to 40 ºC |
| Dimensions | 502 x 401 x 188 mm |
| Storage Temperature | -10 ºC to 60 ºC |
| Model | XTRM-3 |
| Printer | Built-in thermal printer |
| Certifications | CE certified |
| Weight | 15 kg |
| Safety Standards | EN 61010-1 / EN 61326-1 |
| Ingress Protection | IP 54 / CAT III 600V |
| Test Voltage (V) | 10V AC / 40V AC / 100V AC |
| PC Interface | USB |
| Phase Angle | ±180º |
| Measurement Ratio | 0.8 - 10000 |
| Ratio Accuracy (10V) | ±0.15% (0.8 – 999) |
| Ratio Accuracy (40V) | ±0.1% (0.8 – 999) / ±0.15% (1000 – 1999) / ±0.20% (2000 – 3999) / ±0.25% (4000 – 10000) |
| Ratio Accuracy (100V) | ±0.1% (0.8 – 999) / ±0.15% (1000 – 1999) / ±0.20% (2000 – 3999) / ±0.25% (4000 – 10000) |
| Excitation Current | Up to 2A |
| Excitation Current Resolution | 0.1mA |
| Phase Angle Resolution | 0.01º |
| Phase Angle Accuracy | ±0.50º ± 1 digit |
| Report Storage | 500 reports |
| Emergency Stop | Yes |
| Software Type | Windows-based Software |
| Software Interface | USB communication port |
| Software Features | Remote Operation / Data downloading / Analysis and report generation |
Key Features
- Test voltage : 10V, 40V, 100V
- Measure turns ratio, voltage ratio & ratio error
- Measures phase deviation & excitation current
- Auto detection of the transformer vector group
- Quick set up with an intuitive guide
- Inbuilt printer with memory for 500 test results
- Bluetooth enabled for Motware mobile app
Product Description
Motwane’s transformer turn ratio meter XTRM-3 is a new generation fully automated kit to measure turns ratio, voltage ratio, ratio error, phase displacement & excitation current in a transformer. It automatically detects the transformer vector group. Its user-selectable test voltage feature provides for testing various ratings of power transformers. XTRM-3 can be controlled from a remote position using the TAP changer option that allows the operator to measure from various TAP positions. It also has quick setup templates which automatically calculate nameplate ratios of transformers to avoid time consumption by adding details of each tap ratio. Its internal memory capacity for 500 test results can help you save results during on-site testing. Its emergency safety switch provides the operator with safety during undesired conditions.
XTRM-3 has a Bluetooth module with Motware mobile app for remote access of the testing data & storage in the cloud for further analysis & record purposes.
Application
The transformer’s turn ratio meter determines the turn ratio and polarity of single-and three-phase transformers using modern techniques. It also confirms nameplate ratio, polarity, and vectors. It is useful for the identification of defects in the transformer windings, such as open-circuit and short-circuits of turn-to-turn sensitivity.
Turn ratio testing of single phase/ three-phase auto transformers, power transformers and distribution transformers.
Turn ratio testing of the current transformer.
Standard Accessories
- Mains power cord
- 15 meters test lead set with alligator clips
- Thermal paper roll
- Instruction manual
- Calibration certificate
Optional Accessories
- Software: 1 No.
- USB Cable: 1 No.
- Remote tap changer switch: 1 No.
- Bluetooth application via cloud based Motware application
