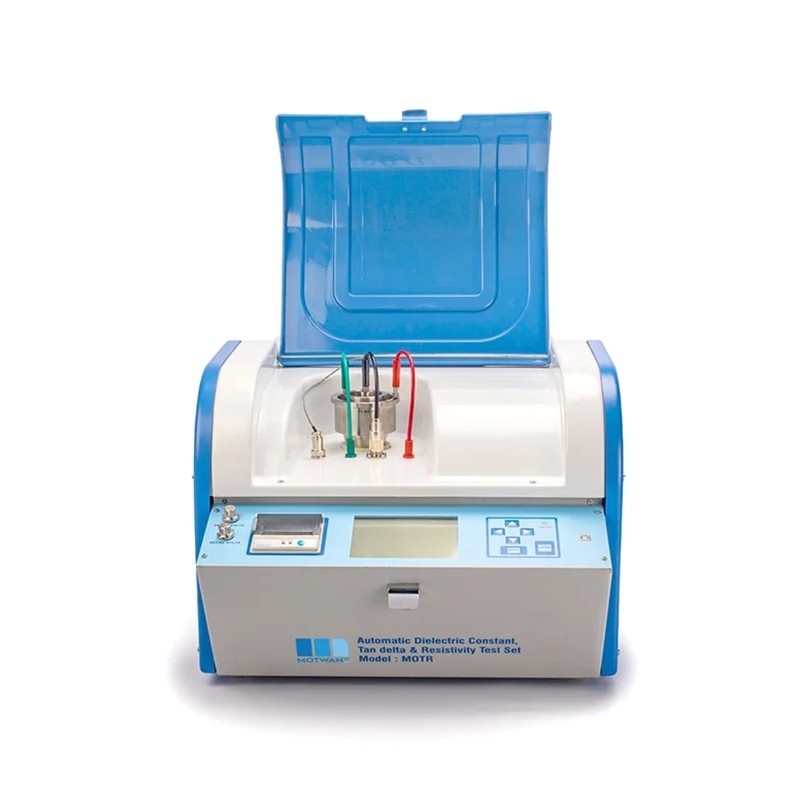

Motwane MOTR Oil Tan Delta & Resistivity Kit
Specifications
| Country of Origin | India |
|---|---|
| Display | Alphanumeric LCD Display |
| Brand | Motwane |
| Power Supply | 110V / 230V / 50/60Hz ±15% |
| Operating Temperature | -10°C to 50°C / 90% non-condensing |
| Dimensions | 510 mm x 320 mm x 380 mm |
| Memory | 250 Tests |
| Model | MOTR |
| Printer | Inbuilt Thermal Printer |
| Weight | 24 Kg |
| Safety Standards | IEC 61010-1 / IEC 61326-1 |
| AC Voltage (V) | 400-2400 V |
| DC Voltage Accuracy | ±1% |
| DC Voltage (V) | 100 – 1000 V |
| Capacitance | 0 - 1600 pF |
| AC Voltage Resolution | 1 V |
| Resistivity | 10e9 Ω cm to 10e15 Ω cm |
| AC Voltage Accuracy | ±1% |
| Heater Temperature Accuracy | ±0.5°C |
| PC Interface | USB |
| Capacitance Resolution | 0.01 pF |
| Capacitance Accuracy | ±0.1% ±1pF |
| DC Voltage Resolution | 1 V |
| Dissipation Factor | 10e-5 – 4.0 |
| Dissipation Factor Resolution | 1 x 10-5 |
| Dissipation Factor Accuracy | ±1% of reading ±0.0001 (1 x 10-4) |
| Dielectric Loss | 0 - 10.0 Watts |
| Dielectric Loss Resolution | 0.001 mili Watts |
| Dielectric Loss Accuracy | ±1% of Reading ± 10-5 Watts |
| Dielectric Constant | 1 - 30 |
| Dielectric Constant Resolution | 0.001 |
| Resistivity Accuracy | ±2% of reading (10e9 - 10e13 Ω cm) / ±5% of reading (10e13 - 10e15 Ω cm) / ±10% of reading (above 10e15 Ω cm) |
| Test Cell Constant | 620 Nominal |
| Test Cell Capacitance | 55 pF ±1 pF |
| Test Cell Insulation | Teflon (PTFE) |
| Test Cell Electrode Spacing | 2 mm |
| Test Cell Oil Volume | 60 ml |
| Heater Temperature Range | 20°C - 150°C |
| Heater Temperature Resolution | 0.1°C |
| Heater Temperature Control | One set point (max 110°C) |
| Heater Heating Element | Induction Type |
| Heater Sensor | Solid state (PT100) |
| Test Standards | IEC 60247 / VDE 0380 / BS 5737 / ASTM D924 / ASTM D1169 / JISC2101 -2010 |
Key Features
- Dissipation factor , Volume Resistivity, Dielectric
- Oil test heating chamber with precise
- Test cell according to IEC 60247
- Pre-programmed & customized Test sequences
- Inbuilt Thermal Printer
- Internal Memory for 250 Test
- USB Interface
- Portable calibrator
- Oil Auto drain facility
- Bluetooth enabled for Motware Mobile App
Product Description
Motwane’s MOTR is a microprocessor based compact device designed for precise measurement of the dissipation factor and volume resistivity of insulating oils.MOTR is built in a single unit and onboarded with International test standards for automatic measurement of all parameters.It is also available with customized test sequences to conduct tests as per user’s requirement.The test cell is designed as per IEC 60247 with precise control for measuring dissipation factor and resistivity at 27°C & 90°C.MOTR has auto oil drain facility.It is provided with internal memory & printer for on field reports and also has a USB interface available for data transfer.The calibrator with standard dissipation factor & Resistivity ranges is available for validating the performance of MOTR.
MOTR has a Bluetooth connectivity module with the Motware mobile app for remote access of testing data & storage at the cloud for further analysis & record purposes.
Application
The dissipation factor indicates the dielectric loss of the liquid and thus its dielectric heating.The dissipation factor test is widely used as an acceptance and preventive maintenance test for insulating oil.The dissipation factor of new oil should not exceed 0.05% and the dissipation factor can gradually increase in service to a value as high as 0.5%, in most cases, indicating deterioration and/or contamination with moisture, carbon, varnish, Glyptal, sodium soaps, or deterioration products.
Used oil having a dissipation factor of less than 0.5% is usually considered satisfactory for service and with a dissipation factor between 0.5% and 2% should be considered as being in doubtful and further investigation recommended and in excess of 2.0% may be an operational hazard, It should be reconditioned or replaced.
Standard Accessories
- Test Lead sets
- Oil Test cell with 3 terminals
- Standard Calibrator
- Pen drive loaded with MOTR software
- USB Cord
- Calibration Certificate
- Transportation case
Optional Accessories
- Motware Mobile App
- Oil Auto Drain Facility
Available on EnvMart, these Resistance Meters are designed for precise measurement of electrical resistance in circuits and components. Motwane Resistance Meters deliver high accuracy and reliability, making them essential for electrical testing, maintenance, and quality control applications.
