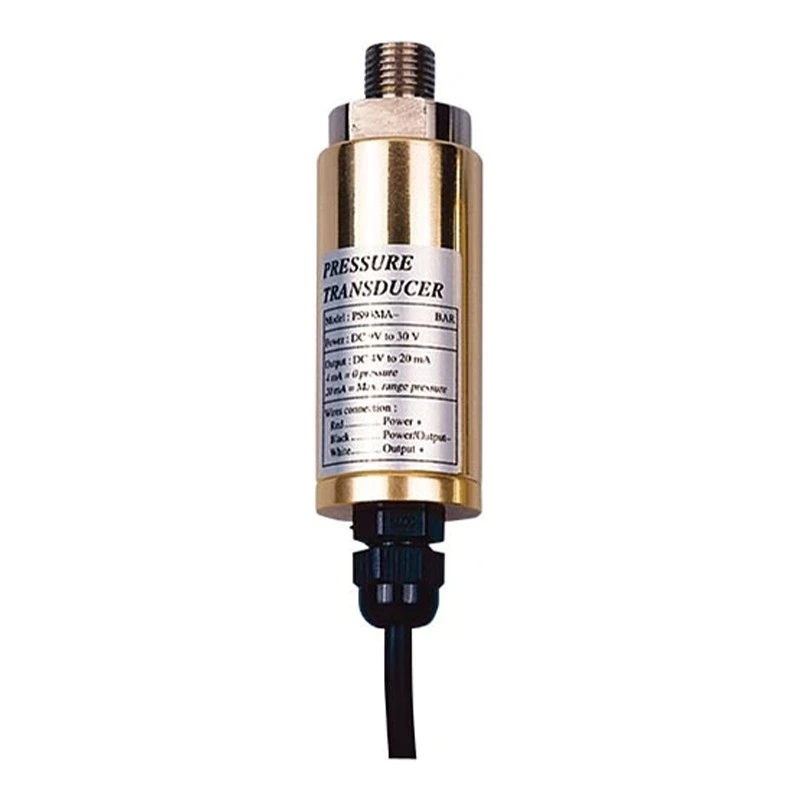

Lutron PS-100-20BAR Pressure Sensor
Specifications
| Operating Humidity | Max. 80% RH |
|---|---|
| Output | 100 mV DC (Full Capacity) |
| Brand | LUTRON |
| Type | Pressure Sensor |
| Applications | Lutron PS-9302 / PS-9303SD pressure meters |
| Operating Temperature | 0 to 60°C |
| Dimensions | 30 mm dia. x 85 mm |
| Connection | 4-pin DIN plug |
| Model | PS100-20BAR |
| Supply Voltage (V) | DC 9V |
| Cable Length | 1 Meter |
| Weight | 160 g |
| Overload Protection | 150% of Max Capacity |
| Max Capacity | 20 BAR (290 PSI) |
| Span Accuracy | ±1% F.S. (10 to 40°C) |
| Zero Accuracy | ±2% F.S. (10 to 40°C) |
| Transducer Port | 1/4" NPT or 1/4" PS (with adapter) |
Key Features
- Pressure sensor transducer.
- Maximum capacity: 20 BAR (290 PSI).
- Overload protection (150% max capacity).
- Supply voltage: DC 9V.
- 1/4" NPT or 1/4" PS port connector with adapter.
- Span accuracy: ±1% F.S.
- Zero accuracy: ±2% F.S.
- Operating temperature: 0 to 60°C.
- Operating humidity: Max. 80% RH.
- Output: 100 mV DC at full capacity.
- Dimensions: 30 mm dia. x 85 mm.
- Weight: 160 g.
- Cable length: 1 meter.
Product Description
The Lutron PS100-20BAR is a pressure sensor designed as an optional transducer for the Lutron pressure meters PS-9302 and PS-9303SD. It has a maximum capacity of 20 BAR (290 PSI). The sensor features overload protection up to 150% of its maximum capacity. It operates with a supply voltage of DC 9V. The transducer port connector is 1/4" NPT or 1/4" PS, and an adapter is included for conversion. Its span accuracy is ±1% F.S., and zero accuracy is ±2% F.S. The operating temperature range is 0 to 60°C, and the operating humidity is max. 80% RH. The output at full capacity is 100 mV DC. The sensor's dimensions are 30 mm diameter x 85 mm, and it weighs 160 g. The cable length is 1 meter, with a 4-pin DIN plug for connection.
Available on EnvMart, these Pressure Sensors are engineered with advanced sensing technology to provide accurate and real-time pressure measurements across various systems. Lutron Pressure Sensors are known for their precision, durability, and reliability, making them ideal for industrial automation, process control, and HVAC applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum pressure capacity of this sensor is 20 BAR (290 PSI).
It operates with a supply voltage of DC 9V.
The span accuracy is ±1% F.S. and the zero accuracy is ±2% F.S. at temperatures between 10 to 40°C.
The operating temperature range is from 0 to 60°C.
It features a 4-pin DIN plug for connection and includes a 1/4" NPT or 1/4" PS port connector with an adapter.
This model weighs 160 g.
The output at full capacity is 100 mV DC.
The maximum operating humidity is 80% RH.
The cable length is 1 meter.
It features overload protection up to 150% of its maximum capacity.
The dimensions are 30 mm in diameter and 85 mm in length.
