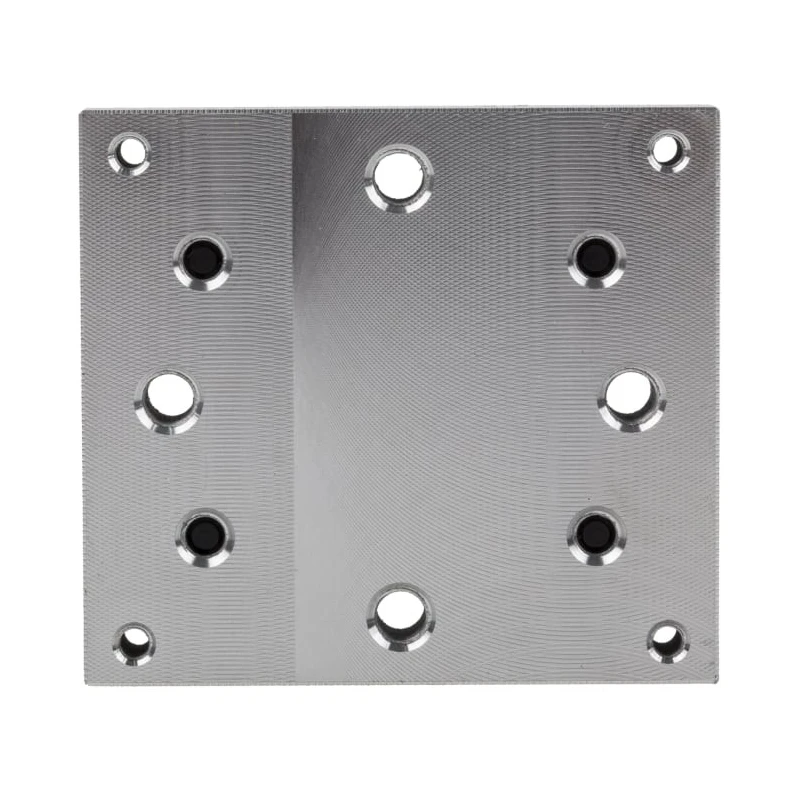

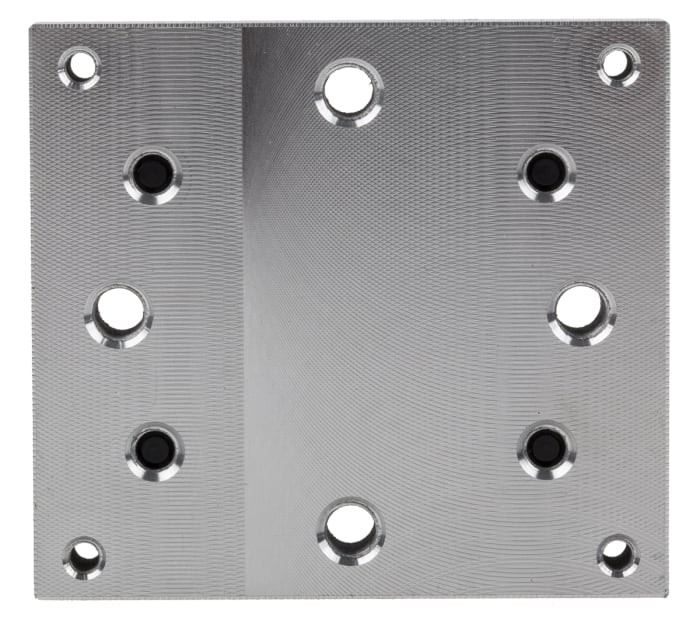

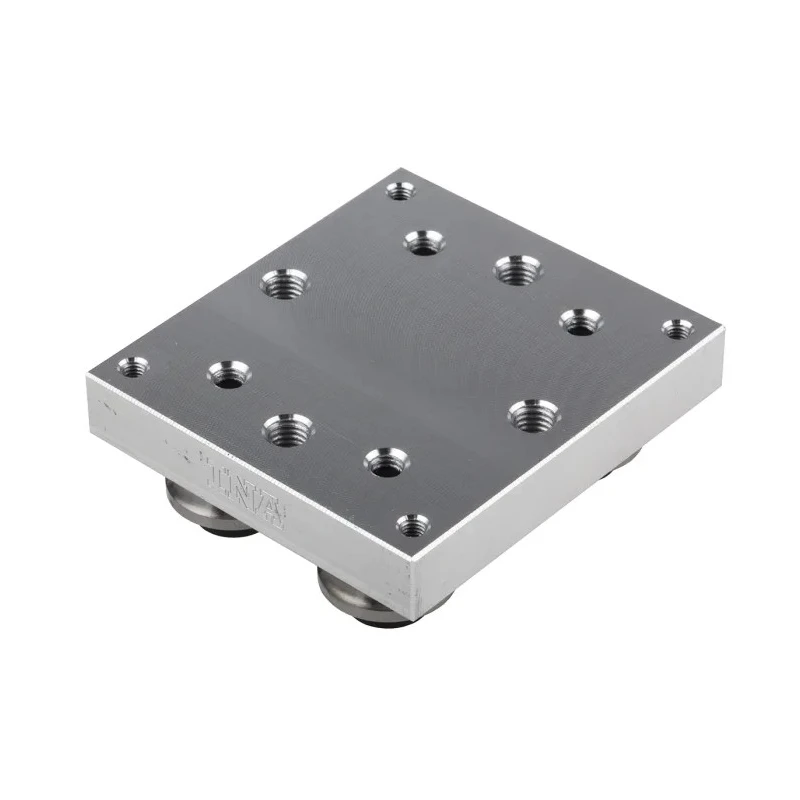

INA Linear Guide Carriage LFL20-SF LFL Series, 2.4 kN Dynamic Load, 50 mm Length, 55 mm Width LFL20-SF

INA LFL20-SF linear guide carriage is a precision component from the LFL series designed for linear motion systems across industrial applications. This carriage features a compact and open carriage design with a length of 50 mm and width of 55 mm, suitable for 20 mm acceptable rail width. It provides a dynamic load rating of 2.4 kN and a static load rating of 1.7 kN, ensuring robust operational capacity in demanding conditions.

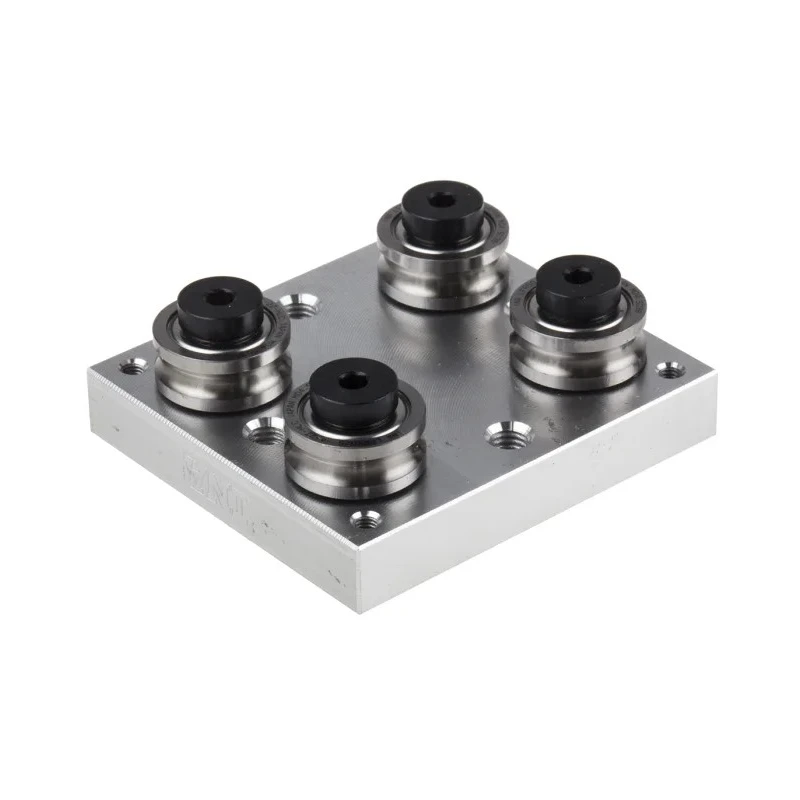

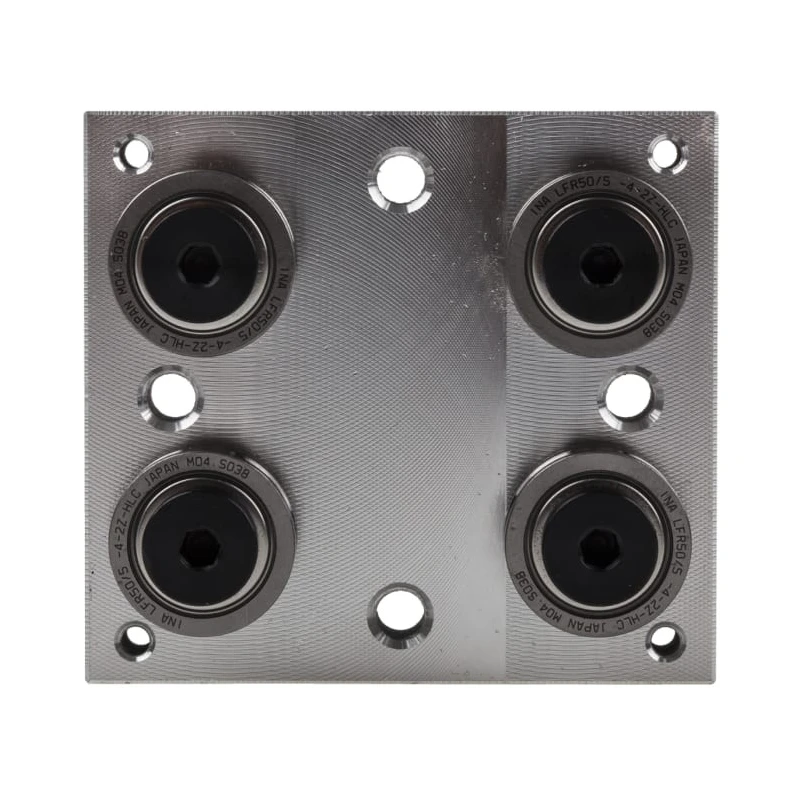

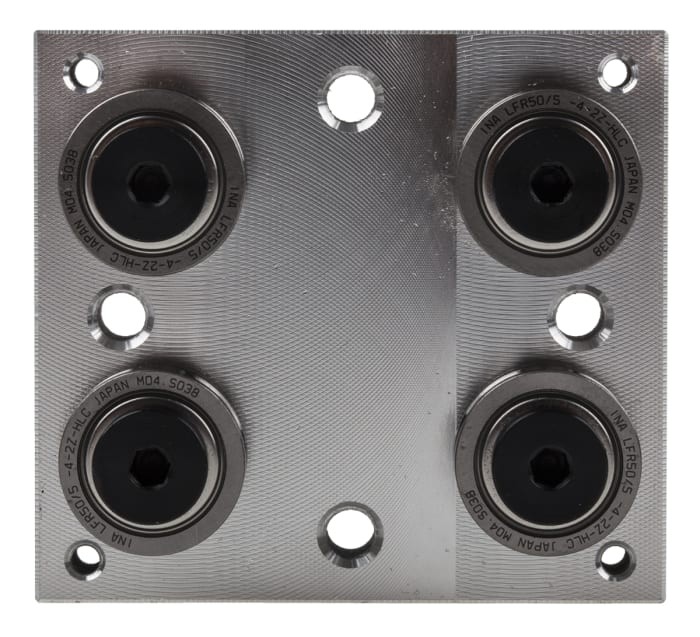

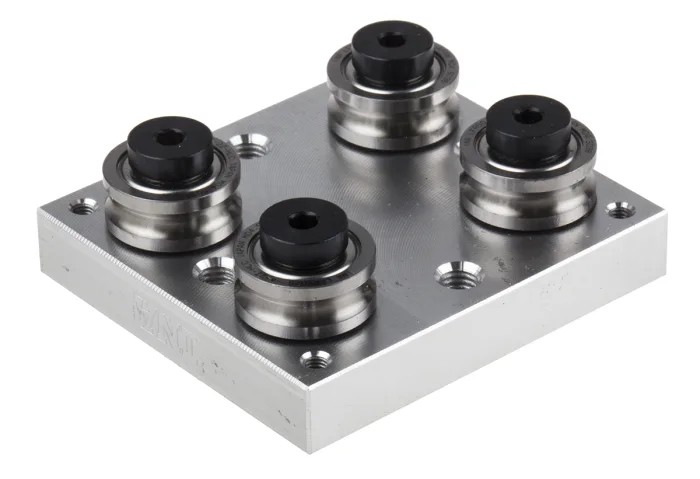

The open carriage incorporates a track roller guidance mechanism, delivering smooth, accurate linear movement essential in automated machinery and production lines. Its sealing and lubrication systems are optimized to reduce wear and enhance longevity even in corrosive environments.

Constructed with corrosion-resistant materials, the LFL20-SF supports consistent performance and minimal maintenance. Ideal for mechanical, fluid power, and tooling industries, this linear guide carriage integrates precisely with compatible INA linear rails under the LFL series.

Compact carriage length of 50 mm and width of 55 mm. Acceptable rail width compatibility: 20 mm. Dynamic load rating of 2.4 kN ensures heavy-duty usage. Static load rating of 1.7 kN supports static stability. Open carriage design with track roller guidance system for smooth linear motion.

Sealing and lubrication systems extend operational life. Corrosion-resistant design suitable for industrial environments. Standardized series LFL for interchangeability and ease of replacement.

This Linear Guide Carriage is ideal for applications in industrial automation, manufacturing assembly lines, robotics, machine tools, and other mechanical systems requiring precise linear motion.
