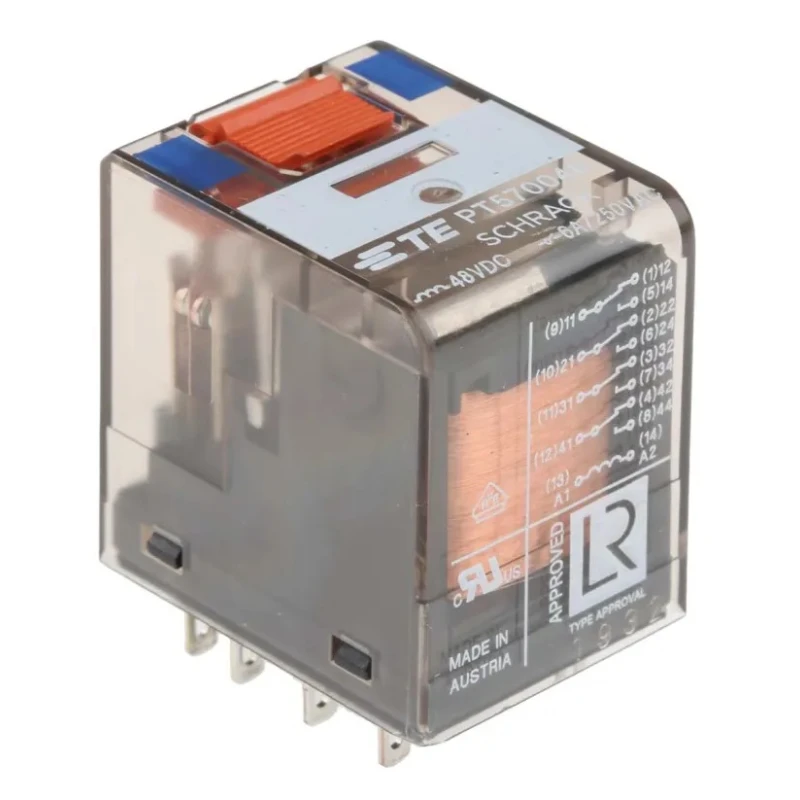

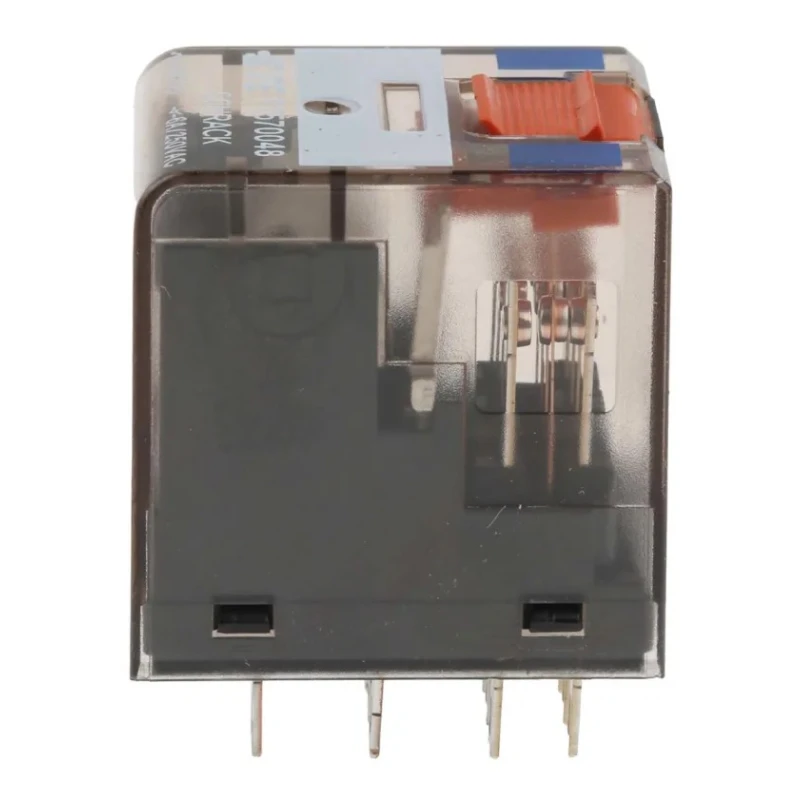

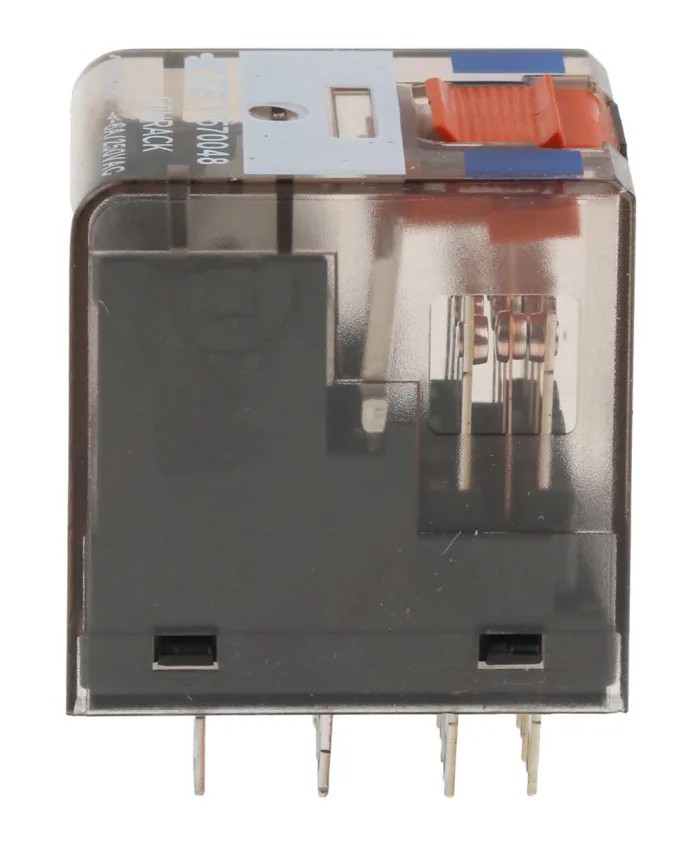

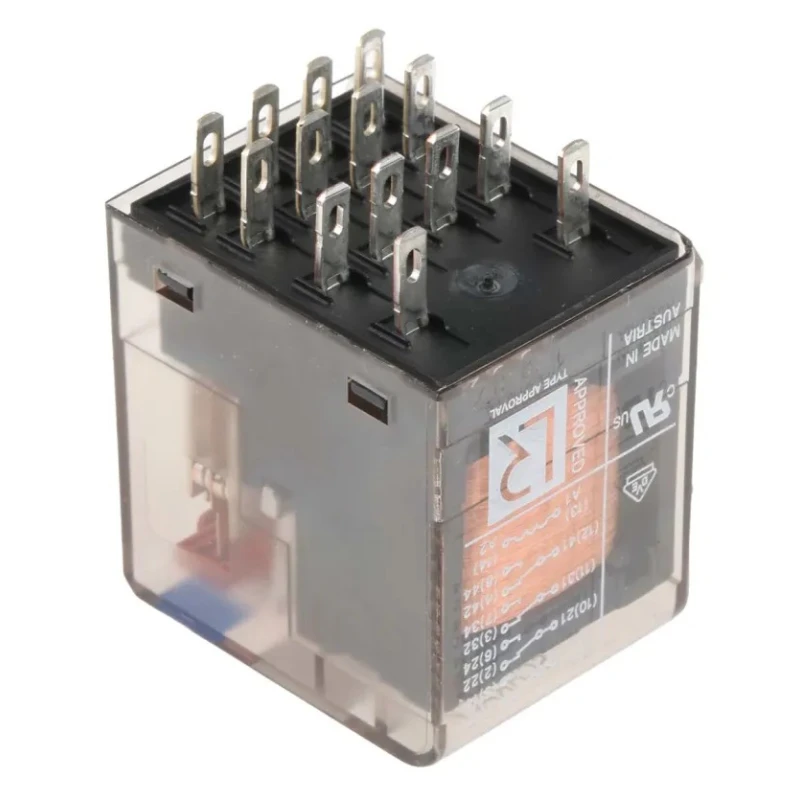

TE Connectivity Power Relay 48V DC Coil, 6A Switching Current, 4PDT PT570048 8-1419111-1

TE Connectivity PT570048 8-1419111-1 Power Relay is a non-latching, 4PDT contact relay designed for industrial and commercial electrical applications. Operating with a 48V DC coil voltage, it supports a maximum switching current of 6A, making it suitable for controlling moderate loads efficiently.

The relay features a robust silver nickel alloy contact material that promotes long-term durability and reliable electrical connectivity. Its coil resistance is approximately 3.1 kΩ, aiding in stable coil operation while reducing heat generation. The quick connect terminal type simplifies electrical connections, reducing assembly time in control panels and relay configurations.

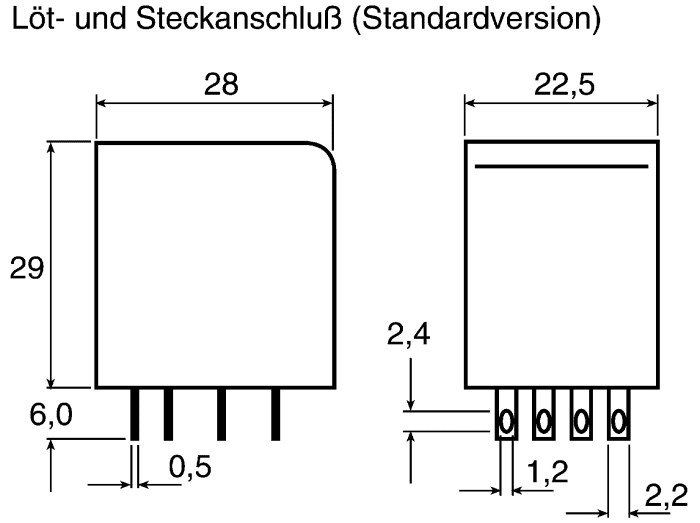

Operating temperature ranges from a minimum of -40°C to a maximum of 70°C allow this relay to function reliably in diverse environmental conditions, from cold storage to standard industrial environments. The compact dimensions of 28mm length, 22.5mm width, and 35mm height facilitate dense packing in control cabinets and devices.

This relay meets rigorous industry standards, including IEC, RoHS, UL, and VDE, reflecting its compliance with international safety and environmental regulations. Its switching AC voltage capability extends up to 240V AC with a switching power of 1.5 kVA.

Applications for this TE Connectivity power relay include industrial automation, electrical control systems, HVAC systems, manufacturing equipment, and any setup requiring reliable switching of loads controlled by a 48V DC coil.

Technical features such as LED and mechanical indicator manual/lockable test facility support troubleshooting and maintenance. Choose TE Connectivity Power Relays for dependable performance in precision electrical control applications that demand quality and endurance.

This relay is equipped with a high coil resistance of approximately 3.1 kΩ for efficient operation. It features a quick connect terminal type for easy installation and secure connections. The relay supports a switching AC voltage up to 240V AC and switching power of 1.5 kVA.

Designed to operate reliably across a temperature range from -40°C to 70°C. Constructed with silver nickel alloy contact material to ensure durability and optimal conductivity. Its physical dimensions are compact, measuring 28 mm in length, 22.5 mm in width, and 35 mm in height.

Conforms to standards IEC, RoHS, UL, and VDE ensuring quality and safety compliance. Explore more power relay solutions and industrial electrical products on EnvMart.
