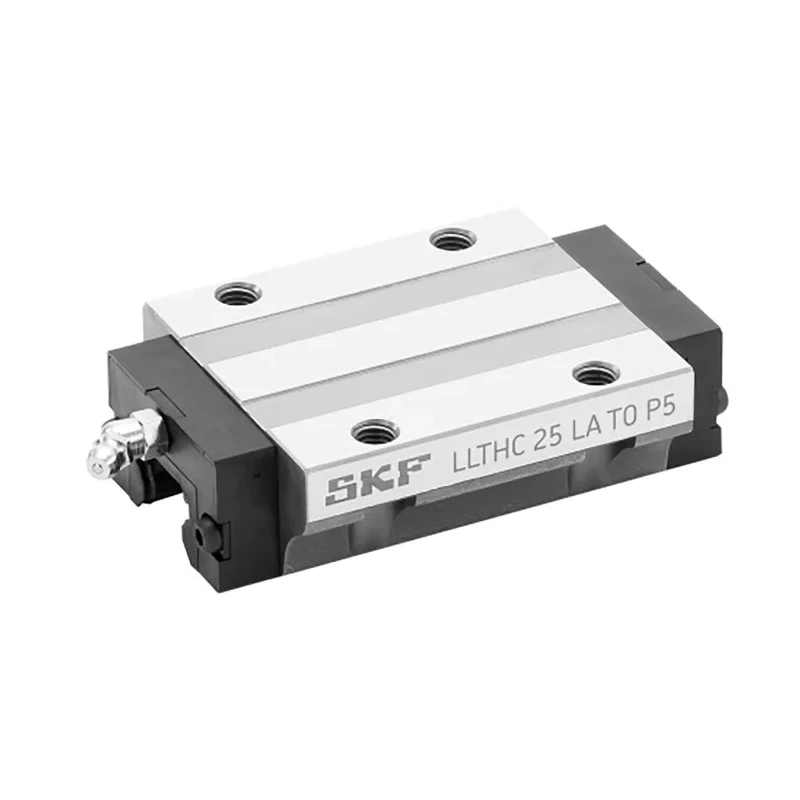

Ewellix Makers in Motion Linear Guide Carriage LLTHC 25 LA T0 P5 Series, 24.4 kN Dynamic Load LLTHC 25 LA T0 P5

Ewellix Makers in Motion LLTHC 25 LA T0 P5 Linear Guide Carriage is designed for precision linear motion applications with a dynamic load rating of 24.4 kN and a static load rating of 44.6 kN. The carriage length is 106.5 mm and width is 70 mm, supporting rails with an acceptable width of 25 mm.

This linear guide carriage integrates side and inner seals as standard, ensuring protection against contaminants and enhancing durability. It delivers equal load carrying capacity combined with high top rigidity, making it suitable for demanding industrial environments.

The product features rails with dual reference sides for accurate alignment and low surface roughness on the rail to reduce friction and wear, ensuring smooth and reliable operation. The carriage design facilitates easy installation and adjustment while maintaining low maintenance requirements.

The long, flanged carriage with standard height is available from size 20 to 45 and comes equipped with four larger threads for flexible mounting from both top and bottom sides. The extended carriage length contributes to increased load rating and rigidity, ideal for industrial automation, mechanical machinery, and precision assembly systems.

The Ewellix LLTHC 25 LA T0 P5 is manufactured to high quality standards in Taiwan, Province Of China, and is well-suited for use in mechanical, fluid power, and tool applications involving linear motion and guiding systems.

Side and inner seals are integrated into the carriage by standard. Provides equal load carrying capacity with high top rigidity. Rails feature dual reference sides for precise alignment. Low roughness on rail surface reduces friction and wear, enabling smooth running.

Easy installation and adjustment require low maintenance effort. Long, flanged carriage with standard height available for sizes 20 to 45. Equipped with 4 larger threads for mounting from top and bottom sides. Extended carriage length provides increased load rating and rigidity.
