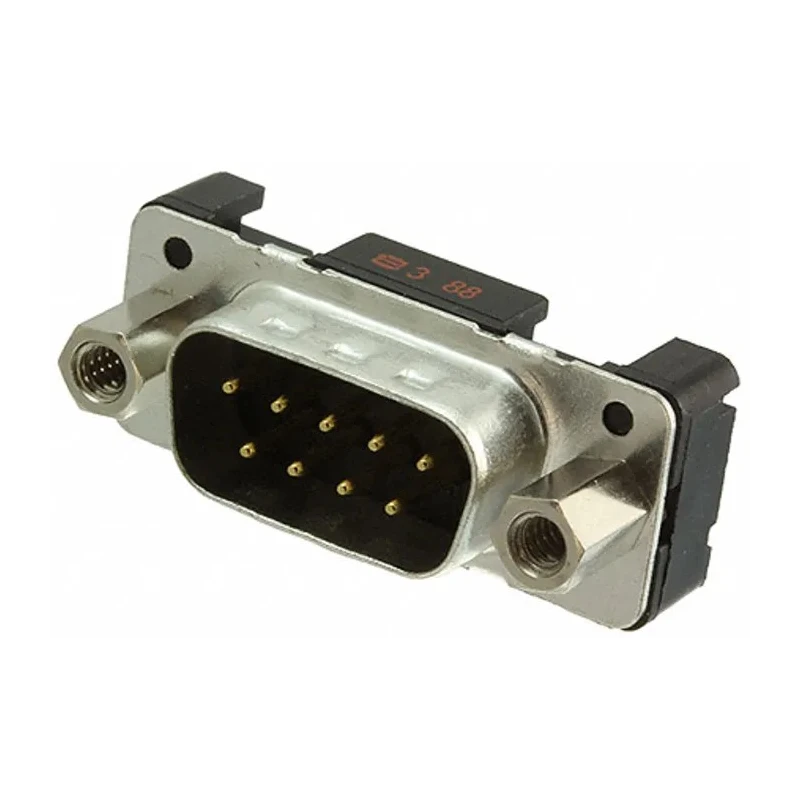

HARTING D-Sub Connector 9 Way Straight 2.74 mm Pitch Through Hole Male, 1kV, 7.5A 09661217703

Name: HARTING D-Sub Connector 9 Way Straight 2.74 mm Pitch Through Hole Male, 1kV, 7.5A 09661217703
Brand: HARTING
SKU: 425748
Price: 20.22 USD
Availability: InStock



Category D-Sub Connector Brand HARTING Condition New

Specifications

Country of Origin	India
Voltage	1kV
Brand	HARTING
Orientation	Straight
Current	7.5A
Mount Type	Through Hole
Housing Material	Steel
Contact Material	Copper Alloy
Series	0966
Mounting Hardware	4 to 40 UNC
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Pitch	2.74mm
Standards/Approvals	UL 94-V0, RoHS, UL Recognised
Contact Plating	Steel
Number of Contacts	9
Contact Gender	Male
Connector Gender	Male

Key Features

Supports a voltage rating of 1kV and current up to 7.5A.
Features 9 contacts with a 2.74 mm pitch ensuring reliable electrical connections.
Constructed with a durable steel housing and copper alloy contacts with steel plating.
Operates reliably between -55°C and 125°C temperatures.
Mount type is through hole with 4 to 40 UNC male mounting hardware for secure installation.
Meets UL 94-V0, RoHS, and UL Recognised standards for quality and safety compliance.
Suitable for multiple industrial applications requiring robust, high-performance D-Sub connectors.

Product Description

HARTING 09661217703 is a high-quality 9-way D-Sub connector featuring a straight orientation and 2.74 mm pitch designed for through hole mounting on PCBs. It is built with a steel housing that provides mechanical strength and durability, complemented by copper alloy contacts with steel plating to ensure excellent conductivity and corrosion resistance.

This connector supports a voltage of 1kV and a current rating of 7.5A, making it suitable for demanding industrial, electronic, communication, and manufacturing applications. Designed to operate reliably between -55°C minimum and 125°C maximum temperatures, it ensures stable performance in harsh environments.

The mounting hardware utilizes 4 to 40 UNC male threads for secure and precise fixing in assemblies. The connector termination type is soldered, providing solid electrical connections.

Compliant with the UL 94-V0 flammability standard, RoHS, and UL Recognised approvals, the HARTING 09661217703 connector guarantees safety and environmental conformity. It adheres to established series 0966 and standards such as MIL-C-24308, DIN 41652, and CECC 75301-802.

This connector is ideal for use in industrial electrical systems, electronic instrumentation, communication devices, and other applications requiring compact PCB-mounted D-Sub connectors with excellent electrical and mechanical properties.

Supports voltage rating of 1kV and current rating of 7.5A. Designed for through hole PCB mounting with 4 to 40 UNC male hardware. Durable steel housing and copper alloy contacts with steel plating provide mechanical and electrical reliability.

Operating temperature range from -55°C to 125°C. Meets stringent UL 94-V0, RoHS, and UL recognition standards. Suitable for use in industrial automation, manufacturing, and electronic component assemblies. Specifications confirmed under MIL-C-24308, DIN 41652, and CECC 75301-802 standards.
