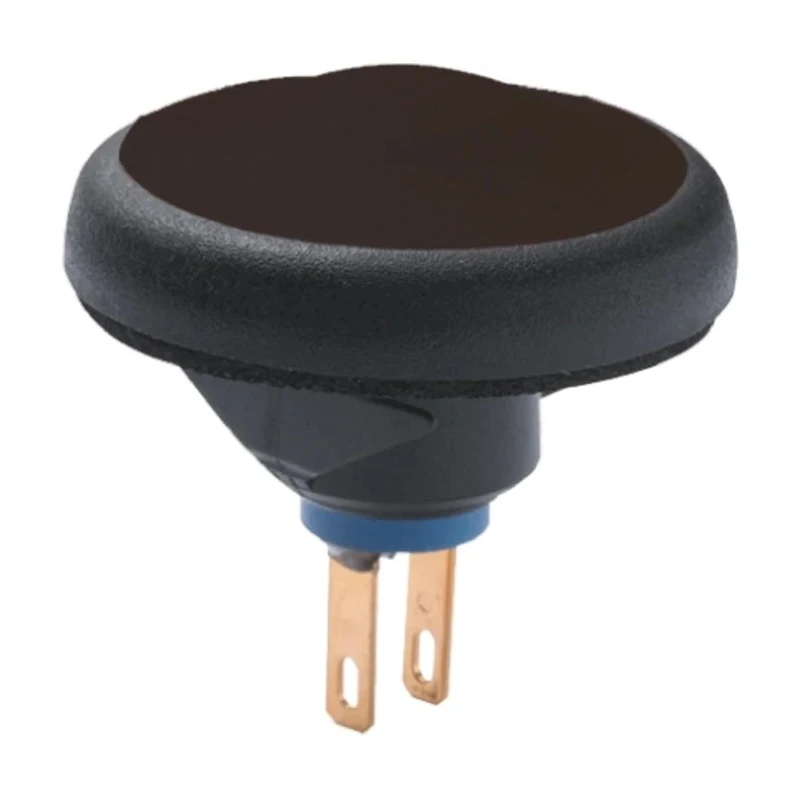

APEM IF Series Ergonomic Black Momentary Push Button Switch, Panel Mount, 16.2 mm Cutout, SPST IFB3Z1A200

Name: APEM IF Series Ergonomic Black Momentary Push Button Switch, Panel Mount, 16.2 mm Cutout, SPST IFB3Z1A200
Brand: APEM
SKU: 425015
Price: 2379.99 INR
Availability: InStock



Category Push Button Switch Brand APEM Condition New

Specifications

Country of Origin	France
Brand	APEM
Model	IFB3Z1A200
Mount Type	Panel
Series	IF
Maximum Operating Temperature	85°C
Contact Configuration	SPST
Minimum Operating Temperature	-20°C
Panel Cutout Size	16.2 mm
Terminal type	Solder, Tab
Standards/Approvals	RoHS
Switch Operation	Momentary
Actuator Colour	Black
Actuator Style	Button
Switch Contact Current	400mA
Ergonomic actuator	Ø 25 mm

Key Features

The actuator color is black, providing a professional, clean appearance.
This switch operates momentarily, returning to its original position after activation.
It features a robust panel mount type with a snap-fitting installation for easy assembly.
The actuator style is a button with a diameter of 25 mm, designed for ergonomic use.
The switch is sealed to IP67, ensuring frost-resistance and protection against water ingress.
Supports a switch contact current rating of 400 mA suitable for low current applications.
Terminal types include solder and tab connectors for reliable electrical connections.
The switch is RoHS compliant, ensuring environmental safety in manufacturing and use.

Product Description

APEM IFB3Z1A200 is a part of the IF Series push button switches designed for momentary operation and panel mounting. This ergonomic push button switch features a black actuator and compact design suitable for industrial and automation applications.

The switch requires a 16.2 mm panel cutout for installation and has an actuator diameter of 25 mm, providing comfortable user interaction. The button style actuator is snap-fit, allowing easy installation and replacement in electrical panels.

Sealed to IP67, the switch is frost-resistant and protected against dust and water, making it ideal for harsh industrial environments, including automation, electrical control systems, HVAC controls, and manufacturing equipment.

Rated for a switch contact current of 400 mA, it operates reliably within temperatures ranging from -20°C to 85°C. The terminal connections support soldering and tab types, ensuring flexibility in wiring configurations.

APEM guarantees quality with RoHS compliance and manufacturing based in France, offering high-performance and durability for sophisticated control panels and machinery interfaces. The actuator color is black for aesthetic and functional purposes.

Momentary contact switch ensures immediate reset after actuation. Panel mount type enables secure and flush installation. Snap-fitting ergonomic actuator with a 25 mm diameter for easy operation. IP67 rated for water and frost resistance in harsh environments.

400 mA contact current suitable for low power switching. Solder and tab terminal types for flexible electrical connections. Compliance with RoHS standards for environmental safety. Operating temperature range from -20°C to 85°C for versatile application.

Manufactured in France, ensuring high product quality and reliability.

This push button switch is widely used in electrical and automation sectors for signal control and user interfaces on panels. It delivers reliable switching performance and ergonomic design for demanding industrial and commercial environments.
