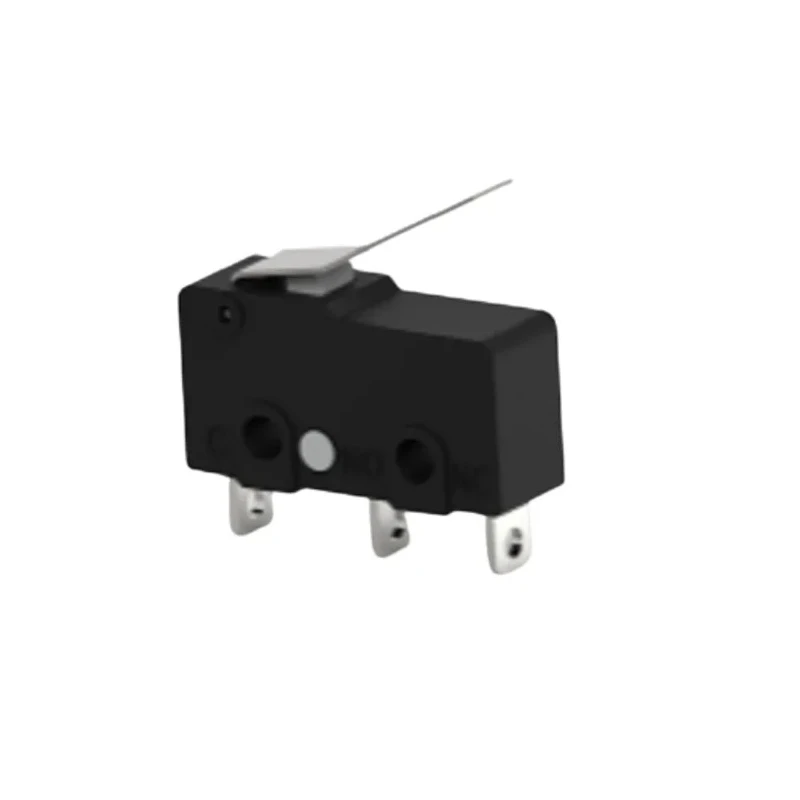

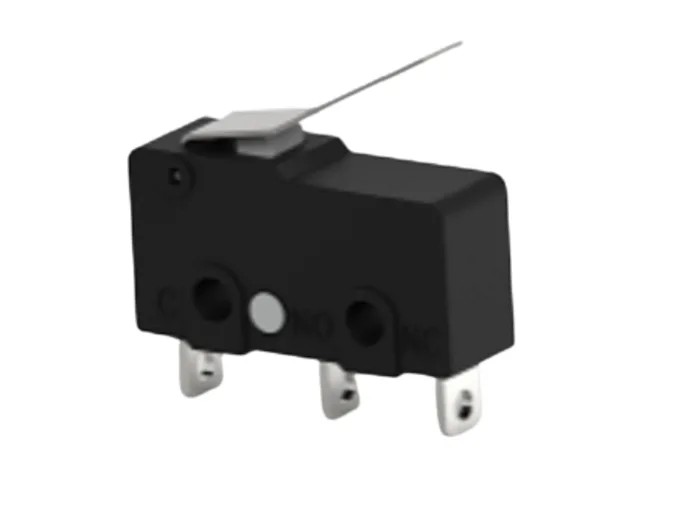

TE Connectivity Lever Snap Action Micro Switch, Solder Terminal, 3A Current, 250 V AC, 30 V DC, SPDT SAJ25YXUL1147SDTSEQ
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Model | SAJ25YXUL1147SDTSEQ |
| Series | SAJ2 |
| Maximum Operating Temperature | 75°C |
| Contact Configuration | SPDT |
| Actuator Type | Lever |
| Minimum Operating Temperature | -40°C |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Contact DC Voltage | 30V dc |
| Switch Contact Current | 3A |
| Operating Force | 1.47N |
| Mechanical Life | 10000000Cycles |
| Contact AC Voltage | 250V ac |
| Microswitch Type | Miniature |
Key Features
- The switch supports a contact current of 3A for robust performance.
- It operates with a contact configuration of single pole double throw (SPDT).
- Rated for 250 V AC and 30 V DC contact voltages.
- Features a lever-type actuator for easy mechanical operation.
- Designed to operate reliably between -40°C and 75°C.
- The mechanical life of the switch extends up to 10 million cycles ensuring longevity.
- Conforms to RoHS standards ensuring environmental compliance.
- Made in China with proven durability in industrial and consumer electronics applications.
Product Description
TE Connectivity SAJ25YXUL1147SDTSEQ lever snap action micro switch is a precision-engineered miniature snap action switch equipped with a lever actuator and solder terminals. Rated for 3A contact current, this SPDT switch supports contact voltages up to 250 V AC and 30 V DC. It provides reliable switching by converting mechanical input actions into electrical signals, making it ideal for a wide range of applications including home appliances, consumer electronics, factory automation, and other industrial and domestic use cases.
This micro switch operates within a temperature range of -40°C to 75°C and features a low operating force of 1.47N, offering ease of use and sensitive response. It guarantees an extensive mechanical lifespan with up to 10 million cycles, ensuring durable and consistent performance in demanding environments.
The SAJ25YXUL1147SDTSEQ complies with RoHS directives, ensuring it meets environmental and safety standards required in modern manufacturing. Its sub-miniature design allows it to fit in compact installations and replaces various popular brand models without affecting existing designs.
Applications span across industrial automation systems, household electronics, and other equipment requiring precise, reliable switch action. This switch is particularly suited for use in safety devices, control circuits, and signal detection scenarios where robust and repeatable contact operation is critical.
The switch supports a contact current of 3A for robust performance. It operates with a contact configuration of single pole double throw (SPDT). Rated for 250 V AC and 30 V DC contact voltages. Features a lever-type actuator for easy mechanical operation.
Designed to operate reliably between -40°C and 75°C. The mechanical life of the switch extends up to 10 million cycles ensuring longevity. Conforms to RoHS standards ensuring environmental compliance. Made in China with proven durability in industrial and consumer electronics applications.
Explore more quality switches and electrical components by TE Connectivity in the Micro Switch category at EnvMart for your industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a single pole double throw (SPDT) contact configuration, allowing for versatile switching applications.
It supports a maximum contact current of 3A, suitable for various applications requiring reliable switching.
The switch is rated for contact voltages of up to 250 V AC and 30 V DC, making it compatible with a range of electrical systems.
It operates reliably within a temperature range of -40°C to 75°C, suitable for diverse environmental conditions.
The mechanical life of this switch extends up to 10 million cycles, ensuring longevity in demanding applications.
This model features a lever-type actuator, which allows for easy mechanical operation and sensitive response.
The operating force for this micro switch is 1.47N, providing a low force requirement for activation.
It conforms to RoHS standards, ensuring it meets environmental and safety regulations in manufacturing.
This model is equipped with solder terminals, allowing for secure and reliable electrical connections.
The switch is made in China, reflecting its design for durability in industrial and consumer electronics applications.
It is suitable for a wide range of applications including home appliances, consumer electronics, and factory automation systems.
This is classified as a miniature microswitch, designed for compact installations and versatile use cases.
