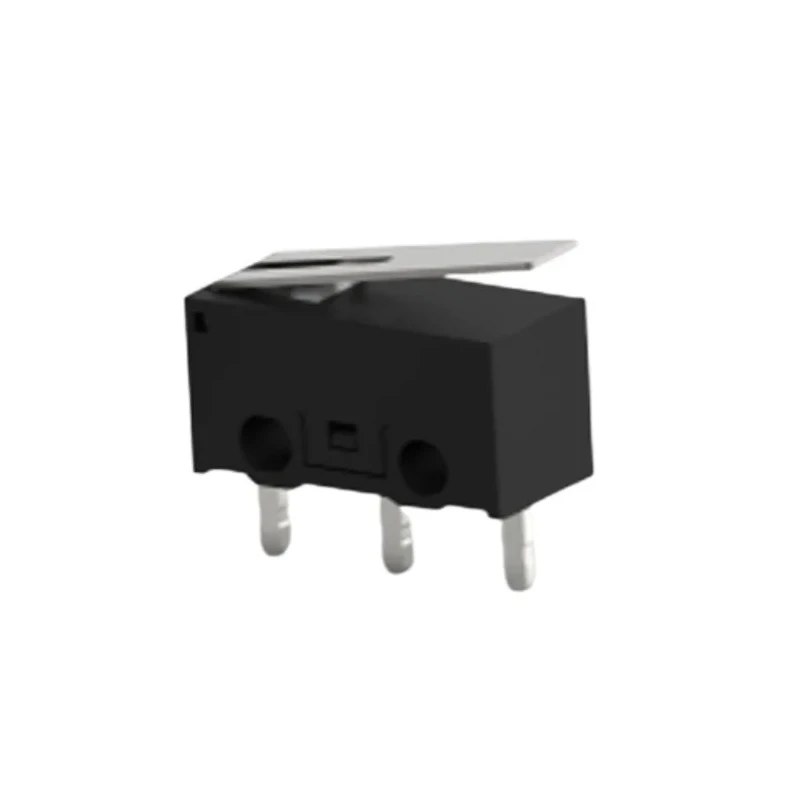

TE Connectivity Lever Snap Action Micro Switch PCB Terminal 0.1A SPDT SAJ101XHL0N74SDTPTQ
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Model | SAJ101XHL0N74SDTPTQ |
| Series | SAJ1 |
| Maximum Operating Temperature | 75°C |
| Contact Configuration | SPDT |
| Actuator Type | Lever |
| Minimum Operating Temperature | -25°C |
| Terminal type | PCB Terminal |
| Standards/Approvals | RoHS |
| Switch Contact Current | 0.1A |
| Operating Force | 0.75N |
| Mechanical Life | 1000000Cycles |
| Microswitch Type | Miniature |
Key Features
- Miniature micro switch suitable for home appliances and factory automation.
- SPDT contact configuration with reliable lever actuator type.
- Operating force of 0.75N ensures sensitive and accurate switching.
- Wide operating temperature range from -25°C to 75°C.
- Robust design offers mechanical life of 1,000,000 cycles.
- Complies with RoHS standards for hazardous substance restrictions.
- PCB terminal models are resistant to flux enhancing durability.
- Dimensionally compatible with popular brands for easy retrofit.
Product Description
TE Connectivity SAJ101XHL0N74SDTPTQ lever snap action micro switch is a compact and highly reliable electrical component designed to convert mechanical movement into electrical signals with precision. Featuring a lever actuator and printed circuit board (PCB) terminals, this miniature switch offers a contact current rating of 0.1A, making it ideal for delicate electronic circuits.
This micro switch is engineered for use across various industrial and consumer applications, including home appliances, factory automation systems, and other domestic or industrial devices requiring fast and accurate switching capability. The switch boasts an operating force of 0.75N combined with a robust mechanical life rating of 1,000,000 cycles, ensuring longevity and dependable performance in demanding environments.
Designed to operate reliably within a temperature range of -25°C to 75°C, the SAJ101XHL0N74SDTPTQ switch also meets RoHS compliance standards, emphasizing environmental safety by restricting hazardous substances. Its PCB terminal construction offers excellent resistance to flux, extending the switch's durability during assembly processes.
The switch's SPDT (Single Pole Double Throw) contact configuration is dimensionally matched to industry-standard designs, allowing seamless integration or replacement in existing equipment. This makes it particularly suited for automated machinery, electronics manufacturing, and control panels where space and reliability are critical factors.
Industrial and laboratory users will find this miniature micro switch useful for precise detection and control tasks in automated systems. Its compact form factor and long-lasting mechanical operation make it a key component in high-performance switch arrays and safety mechanisms.
Miniature micro switch suitable for high-precision applications. Robust lever actuator ensures sensitive and reliable switching. SPDT contact configuration supports versatile circuit control. Rated contact current of 0.1A for low power switching.
Operates between -25°C and 75°C temperature range. Mechanical life rated at 1,000,000 cycles for extended usage. RoHS compliant to meet environmental standards. PCB terminal model resistant to flux enhances reliability during soldering.
Dimensionally compatible with popular switch brands for retrofit. Ideal for applications in home appliances, factory automation, and consumer electronics. Explore more high-quality Micro Switches and related components in the Electronics & Electricals section at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The micro switch features a Single Pole Double Throw (SPDT) contact configuration, allowing for versatile circuit control.
The maximum operating temperature for this micro switch is 75°C, making it suitable for a variety of applications.
This switch has a rated contact current of 0.1A, suitable for low power switching applications.
The operating force for this micro switch is 0.75N, ensuring sensitive and accurate switching.
It has a mechanical life rating of 1,000,000 cycles, providing longevity in demanding environments.
The minimum operating temperature for this micro switch is -25°C, allowing it to function in a wide temperature range.
Yes, this micro switch complies with RoHS standards, which restrict hazardous substances.
This model uses a lever actuator type, which provides reliable and sensitive switching.
It is equipped with PCB terminals, enhancing its durability and resistance during assembly processes.
This micro switch is suitable for various applications, including home appliances, factory automation, and consumer electronics.
The country of origin for this micro switch is China.
This model is dimensionally compatible with popular brands, allowing for easy retrofit in existing equipment.
