Omron Surface Signal Relay 24V DC Coil 1A DPDT Contact Configuration G6J-2FL-Y DC24

Free Delivery in India | Lowest Global Shipping Charges

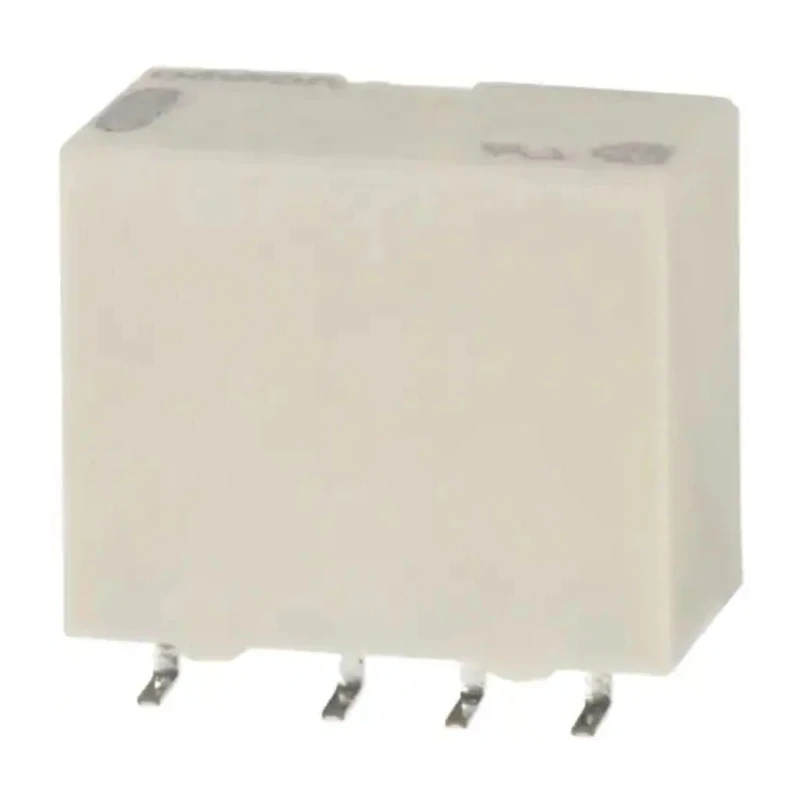

Omron Surface Signal Relay 24V DC Coil 1A DPDT Contact Configuration G6J-2FL-Y DC24

Name: Omron Surface Signal Relay 24V DC Coil 1A DPDT Contact Configuration G6J-2FL-Y DC24
Brand: Omron
SKU: 422594
Price: 3.5 USD
Availability: InStock



Category Signal Relay Brand Omron Condition New

Specifications

Country of Origin	China
Brand	Omron
Height	9mm
Length	10.6mm
Model	G6J-2FL-Y DC24
Width	5.7mm
Mount Type	Surface
Contact Material	Gold Plated
Series	G6J
Maximum Operating Temperature	85°C
Contact Configuration	DPDT
Minimum Operating Temperature	-40°C
Switching Current	1A
Terminal type	Surface Mount
Contact Resistance	100mΩ
Standards/Approvals	UL/C-UL, FCC Part 68
Coil Resistance	2600Ω
Coil Voltage	24V dc
Switching DC Voltage	110V dc
Switching AC Voltage	125V ac
Coil Power	230mW
Switching Power	60W

Key Features

Features double-pole double-throw (DPDT) contact configuration for versatile switching.
Surface mount type with gold plated contacts ensures low contact resistance and durability.
Supports switching voltages up to 125V AC and 110V DC with 60W maximum power.
Operates reliably within a wide temperature range of -40°C to 85°C.
Compact dimensions of 10.6mm length, 5.7mm width, and 9mm height suitable for surface mounting.
Coil resistance of 2600Ω and coil power consumption of 230mW for energy-efficient operation.
Fully sealed design enhances protection against environmental factors.
Compliance with UL/C-UL and FCC Part 68 standards ensures safety and quality.

Product Description

Omron G6J-2FL-Y DC24 Surface Signal Relay features a 24V DC coil voltage and supports a switching current of 1A with a double-pole double-throw (DPDT) contact configuration. This surface-mount relay is designed for efficient switching in compact industrial assemblies.

Its gold-plated contacts reduce contact resistance to 100mΩ, assuring reliable signal integrity. The relay can switch AC voltages up to 125V and DC voltages up to 110V with a rated power of 60W.

The relay operates across a broad temperature spectrum from -40°C to 85°C, making it suitable for harsh environments. Its fully sealed construction enhances durability and longevity.

Compact dimensions of 10.6mm in length, 5.7mm in width, and 9mm in height facilitate easy integration into printed circuit boards and automation systems. Double-pole double-throw (DPDT) contact configuration provides flexible switching options.

Gold-plated contacts minimize contact resistance for enhanced signal quality. Surface mount terminals designed for reliable PCB mounting. Low coil power rating of 230mW ensures energy-efficient operation. Operates within a temperature range of -40°C to 85°C for industrial environments.

Meets UL/C-UL and FCC Part 68 standards for safety and compliance. Fully sealed design protects internal components from dust and moisture. Ideal for telecommunications, test & measurement, industrial automation, and security systems.

This Omron surface signal relay is made in China and is suited for use in communication equipment, test and measurement devices, office automation, audio-visual products, security, building automation, industrial equipment, and amusement equipment. Its robust construction and precise switching capabilities make it a reliable choice for signal conditioning and control applications in electrical and automation industries.

For engineers and designers seeking quality signal relays, this Omron G6J-2FL-Y DC24 model offers dependable performance combined with compact design and compliance to important international standards. Browse the Electronics & Electricals > Relays & Contactors > Signal Relay category on EnvMart for comparable products and technical solutions.
