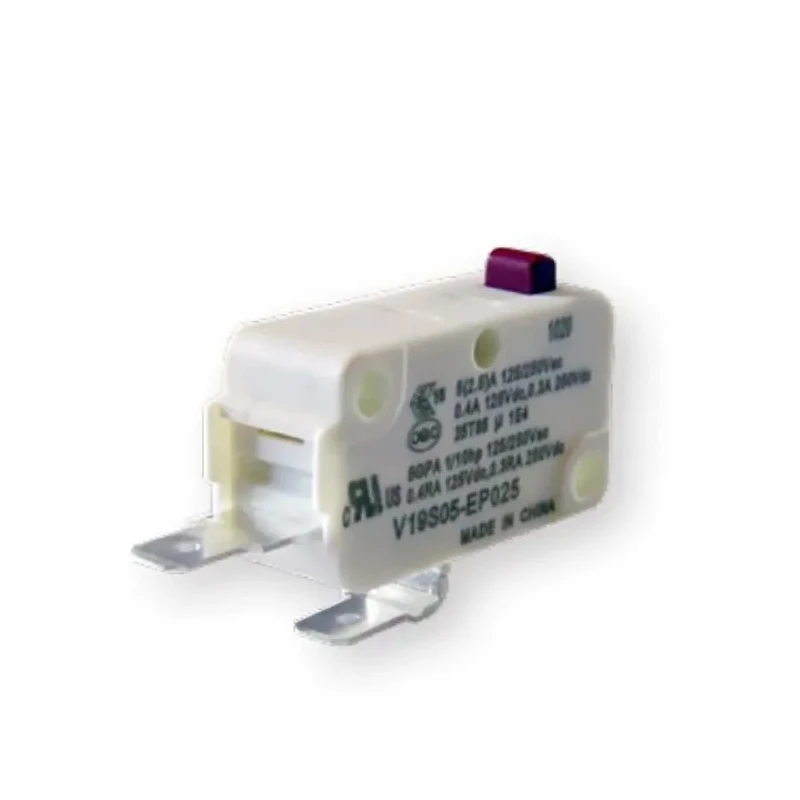

Honeywell Technologies Pin Plunger Micro Switch, Quick Connect Terminal, 5A, 250 V AC/DC, SPCO, IP40 V19S05-EZ015
Specifications
| Country of Origin | China |
|---|---|
| Brand | Honeywell |
| Length | 27.8mm |
| Model | V19S05-EZ015 |
| Depth | 15.9mm |
| IP Rating | IP40 |
| Width | 10.3mm |
| Housing Material | Thermoplastic Polybutylene Terephthalate |
| Series | V19 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPCO |
| Actuator Type | Pin Plunger |
| Minimum Operating Temperature | -25°C |
| Terminal type | Quick Connect |
| Standards/Approvals | CQC, UL, RoHS, ENEC, cUL, CSA |
| Contact DC Voltage | 250V dc |
| Switch Contact Current | 5A |
| Operating Force | 0.5N |
| Mechanical Life | 60Cycles |
| Contact AC Voltage | 250V ac |
| Microswitch Type | Unsealed |
Key Features
- Equipped with a quick connect terminal for easy installation.
- Features a pin plunger actuator type providing precise actuation.
- Housing made of durable thermoplastic polybutylene terephthalate for longevity.
- Designed with an SPCO contact configuration for single-pole changeover switching.
- Rated IP40 for protection against solid objects larger than 1 mm.
- Operating force is low at 0.5N ensuring minimal physical effort.
- Suitable for operating temperatures from -25°C to 85°C.
- Offers mechanical life rated for 60 cycles ensuring durability in applications.
Product Description
Honeywell V19S05-EZ015 Pin Plunger Micro Switch features a quick connect terminal and supports a current rating of 5A at 250 V AC/DC, designed for efficient and repeatable switching operations in automation and electrical control systems.
Constructed with a robust thermoplastic polybutylene terephthalate housing, this micro switch ensures reliable performance and durability for various industrial applications. The pin plunger actuator provides precise and consistent actuation with a low operating force of 0.5N, suitable for sensitive detection or control tasks.
It employs a single-pole changeover (SPCO) contact configuration facilitating versatile switching arrangements. Rated IP40, it offers basic protection against intrusion of solid objects larger than 1 mm, suited for unsealed environments.
The device operates effectively across a temperature range of -25°C to 85°C and endures a mechanical life rated at 60 cycles.
Compliance with international standards such as CQC, UL, RoHS, ENEC, cUL, and CSA assures safe integration into global manufacturing, industrial automation, and electrical equipment.
Compact dimensions of 27.8 mm length, 10.3 mm width, and 15.9 mm depth allow integration in limited spaces within control panels or machinery. Equipped with a quick connect terminal for easy installation. Pin plunger actuator provides precise switching action.
Durable thermoplastic polybutylene terephthalate housing. Single-pole changeover contact arrangement (SPCO). IP40 rating for protection against solid object ingress. Low operating force of 0.5N for efficient activation. Operating temperature range from -25°C to 85°C.
Mechanical life with 60 cycles for durability. Certifications include CQC, UL, RoHS, ENEC, cUL, CSA. Compact dimensions suitable for tight spaces.
This micro switch is suitable for industrial, automation, electrical control, and manufacturing applications where reliable and compact switching solutions are required. It enables system auxiliary functions and safety interlocks with precision.
Explore Honeywell Micro Switches and electrical components for reliable system integration on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating of this micro switch is 5A.
This model can handle voltages of 250V AC and 250V DC.
It features a single-pole changeover (SPCO) contact configuration.
It operates effectively within a temperature range of -25°C to 85°C.
The micro switch uses a pin plunger actuator for precise actuation.
This micro switch has an IP40 rating, providing protection against solid objects larger than 1 mm.
The housing is constructed from thermoplastic polybutylene terephthalate.
The mechanical life of this model is rated for 60 cycles.
It has a low operating force of 0.5N, ensuring minimal physical effort for activation.
It is equipped with a quick connect terminal for easy installation.
It complies with several standards including CQC, UL, RoHS, ENEC, cUL, and CSA.
The dimensions are 27.8 mm in length, 10.3 mm in width, and 15.9 mm in depth.
