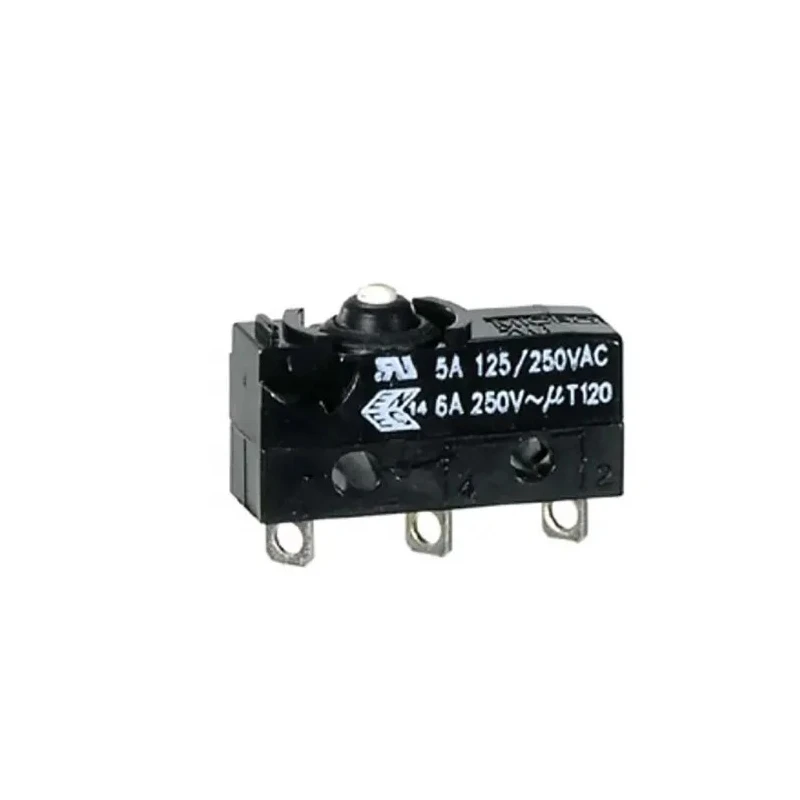

Honeywell Technologies Pin Plunger Micro Switch Cable Terminal 6A 250V AC SPDT IP67 ZW50F90AW1
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Honeywell |
| Length | 19.8mm |
| Model | ZW50F90AW1 |
| Depth | 9.25mm |
| IP Rating | IP67 |
| Width | 6.4mm |
| Housing Material | Polybutylene Terephthalate |
| Series | ZW |
| Maximum Operating Temperature | 120°C |
| Contact Configuration | SPDT |
| Actuator Type | Pin Plunger |
| Minimum Operating Temperature | -40°C |
| Terminal type | Cable |
| Hazardous Area Certification | CQC, cUL, ENEC, RoHS, UL |
| Standards/Approvals | CQC, cUL, ENEC, RoHS, UL |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 205-6078Brand: HoneywellManufacturers Part No.: ZW50F90AW1Distrelec Article No.: 30344635 |
| Switch Contact Current | 6A |
| Operating Force | 203g |
| Mechanical Life | 1000000min |
| Contact AC Voltage | 250V ac |
| Microswitch Type | Subminiature |
Key Features
- Compact subminiature design ideal for precise industrial control applications.
- Pin plunger actuator provides accurate position detection.
- Cable terminals for flexible wiring in confined control panels.
- Durable polybutylene terephthalate housing ensures thermal and mechanical resilience.
- Rated for switching currents of 6A and AC contact voltage of 250V.
- IP67 rating offers protection against dust and water ingress for harsh environments.
- Operating force of 203 grams guarantees consistent actuation sensitivity.
- Operating temperature range from - 40°C to 120°C suits varied industrial conditions.
Product Description
Honeywell ZW50F90AW1 Pin Plunger Micro Switch is a subminiature precision electrical actuator designed for robust industrial environments requiring reliable position sensing and control. It features a cable terminal connection style for secure and flexible wiring installations in control panels.
The device employs a single-pole double-throw (SPDT) contact configuration, allowing a switched common terminal to toggle between two outputs depending on actuator position. This configuration is widely used in automation and electromechanical assemblies for limit switch and safety interlock applications.
Constructed with a polybutylene terephthalate housing, the switch offers exceptional mechanical durability and high thermal resistance withstanding temperatures up to 120°C. The IP67 ingress protection ensures reliable operation in dusty or wet conditions, making it suitable for demanding industrial, HVAC, and manufacturing control systems.
Operating force is regulated at 203 grams, providing consistent actuation sensitivity and performance. The micro switch supports a 6A rated switching current at a contact AC voltage of 250V, suitable for moderate load switching tasks.
The ZW series micro switches by Honeywell carry multiple regional certifications including CQC, cUL, ENEC, RoHS, and UL, confirming compliance with electrical safety and environmental standards. This makes the switch ideal for rigorous use in automation machinery, electrical cabinets, HVAC panels, and other industrial equipment requiring high reliability and precise switching function.
Compact subminiature form factor with pin plunger actuator. Cable terminal type for efficient wiring in confined spaces. Robust PBT polymer housing with IP67 rating. Switch contact current of 6A at 250V AC. Operating temperature range from -40°C to 120°C.
Mechanical life expectancy of 1,000,000 cycles. Multiple certifications including UL, RoHS, cUL, CQC, and ENEC. Applications include position sensing, limit switches, safety interlocks, and control inputs. Explore similar Honeywell Micro Switches and industrial automation components in the Electronics & Electricals category at EnvMart for optimized control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum switching current of 6A and an AC contact voltage of 250V.
The micro switch has an IP67 rating, providing protection against dust and water ingress.
It operates within a temperature range of -40°C to 120°C, suitable for varied industrial conditions.
It features a pin plunger actuator, which allows for accurate position detection.
The dimensions are 19.8mm in length, 6.4mm in width, and 9.25mm in depth.
The mechanical life expectancy is rated at 1,000,000 cycles, ensuring long-term reliability.
It employs a single-pole double-throw (SPDT) contact configuration, allowing it to toggle between two outputs.
The housing is made from polybutylene terephthalate, which provides thermal and mechanical resilience.
It uses a cable terminal connection style, allowing for flexible wiring in confined control panels.
It carries multiple certifications including CQC, cUL, ENEC, RoHS, and UL, confirming compliance with safety and environmental standards.
It is suitable for position sensing, limit switches, safety interlocks, and control inputs in industrial environments.
The operating force required for actuation is 203 grams, ensuring consistent sensitivity.
