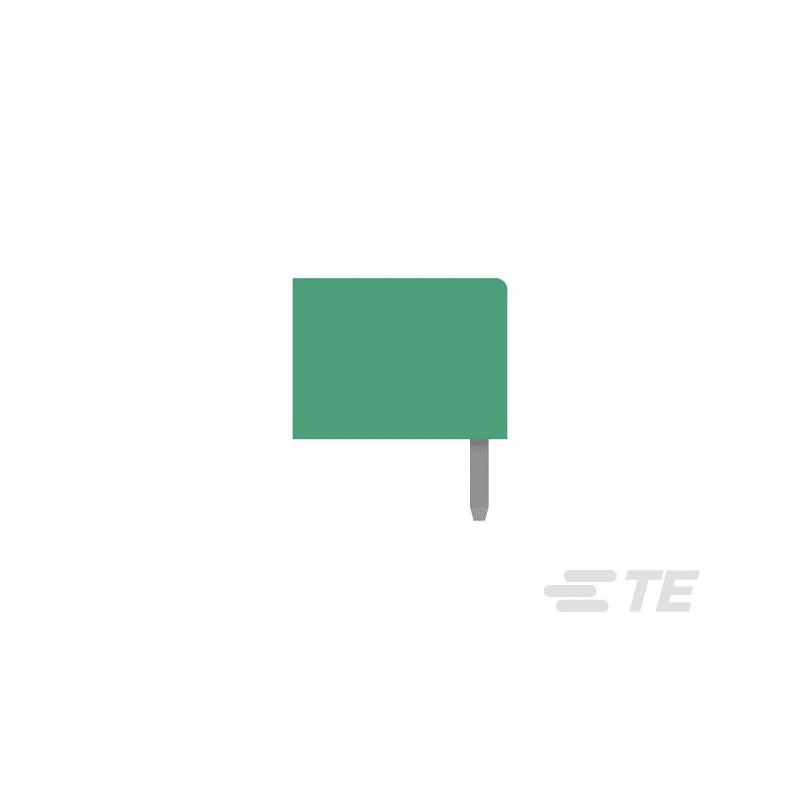

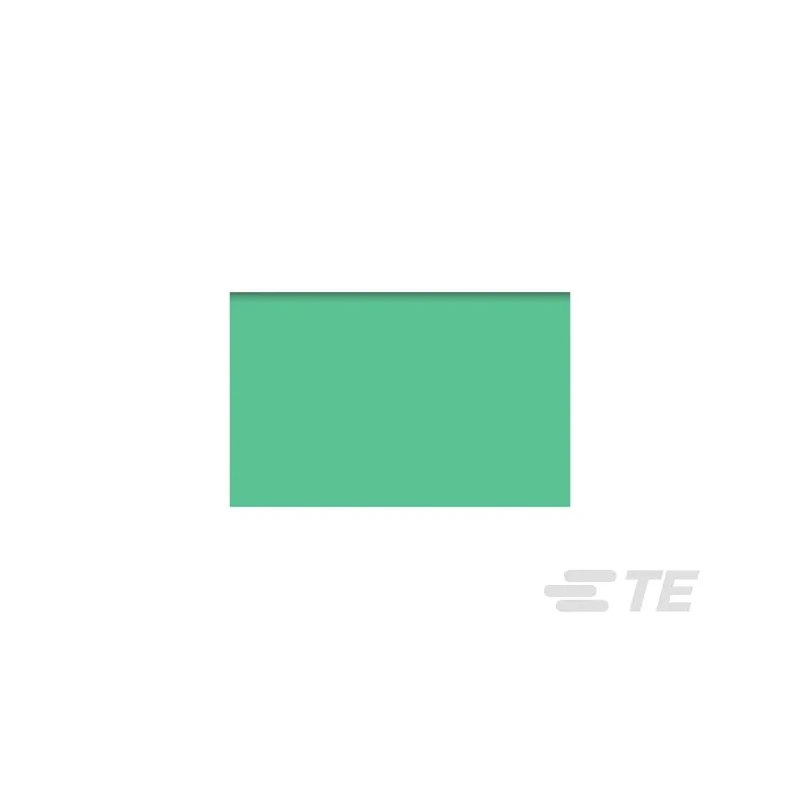

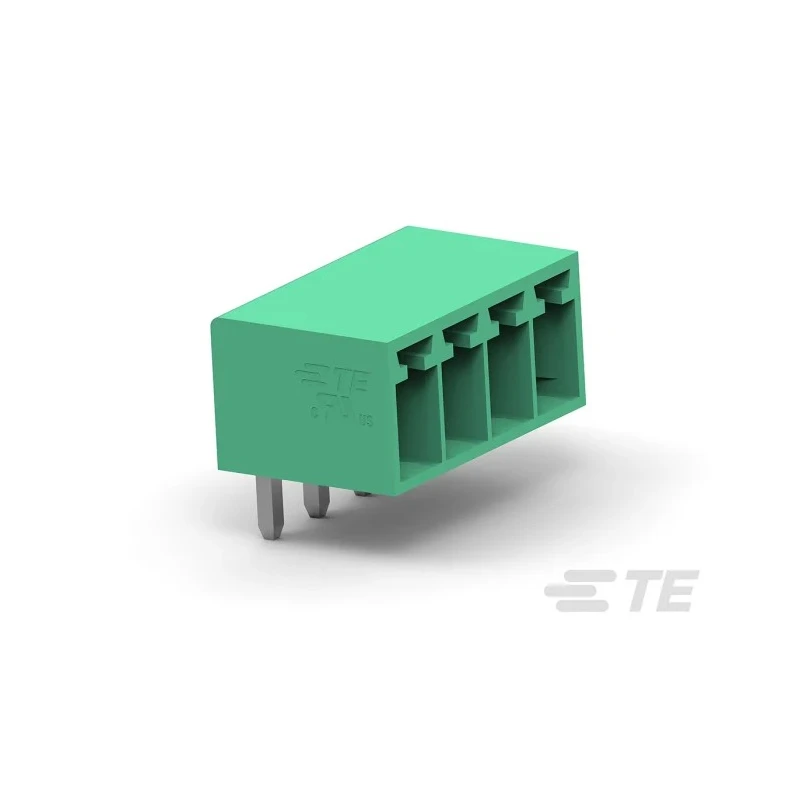

TE Connectivity Buchanan Series Pluggable Terminal Block 4-Contact 3.5 mm Pitch 1 Row 300V AC 10A 2350514-4

TE Connectivity 2350514-4 Buchanan Series Pluggable Terminal Block is engineered for reliable and efficient electrical connections in industrial, electronic, and power distribution applications. This product features 4 contacts arranged in a single row with a 3.5 mm pitch, making it ideal for compact PCB designs requiring secure pluggable connectors.

The terminal block housing is constructed from brass, providing enhanced mechanical strength and excellent electrical conductivity. Rated for 10A current and 300V AC voltage, it supports a variety of wiring configurations from 24 AWG to 16 AWG using solder connection methods. The right angle orientation further facilitates space-saving PCB mounting and wiring layout optimization.

TE Connectivity’s Buchanan series is renowned for its high density signal and power applications in automation and control systems. Designed for tool-less insertion with push-in clamp termination variants, this solder type variant ensures solid and dependable connections in environments where vibration and mechanical stresses are present.

The compact dimensions of 14.6 mm length and 9.2 mm width enable integration in tight spaces without sacrificing performance. This product meets industry compliance with UL and RoHS certifications, ensuring quality and environmentally safe manufacturing standards.

Typical industrial uses include control panels, power distribution blocks, instrumentation, and electronic assemblies. The green color coding assists in component identification and wiring schematics.

Features a durable brass housing for reliable conductivity. Supports a current rating of 10A and a voltage rating of 300V AC. Designed with a right angle orientation for flexible PCB mounting. Compatible with wire sizes from 24 AWG to 16 AWG for versatile connectivity options.

Termination method is solder type, ensuring secure wire connections. Compact dimensions with a length of 14.6 mm and width of 9.2 mm. Complies with UL and RoHS standards for safety and environmental compliance. Green color coded for easy identification within assemblies.

Part of the Buchanan series designed for high-density signal and power applications. Explore our catalog for more TE Connectivity Pluggable Terminal Blocks and connect with industry-standard components for your projects and production lines.
