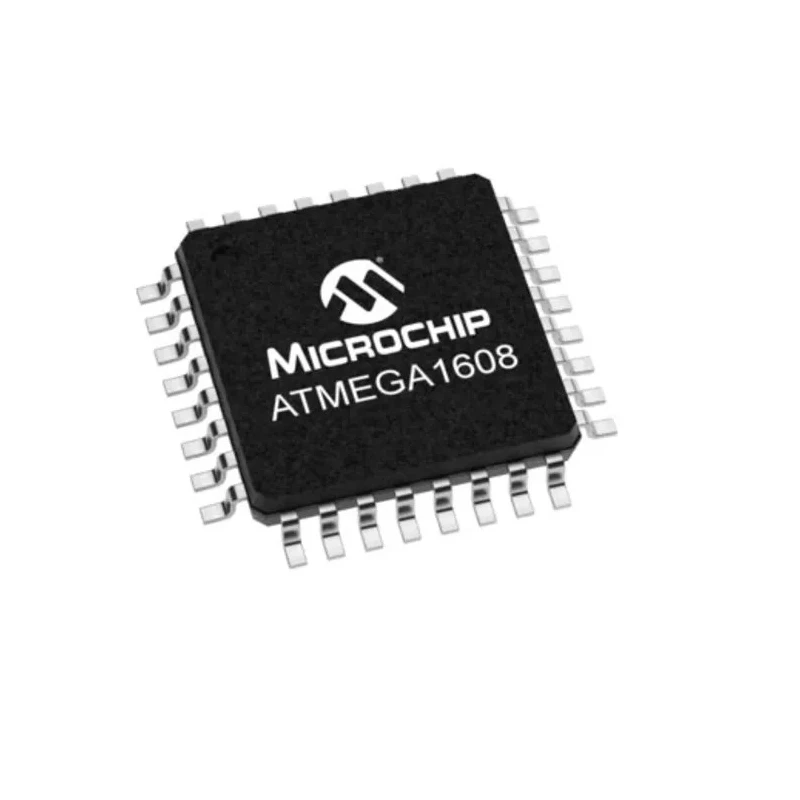

Microchip 8 bit AVR CPU Atmega Microcontroller 20 MHz 16kB FLASH 32-Pin TQFP ATMEGA1608-AF
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1mm |
| Length | 7mm |
| Model | ATMEGA1608-AF |
| Width | 7mm |
| Mount Type | Surface |
| Series | Atmega |
| Maximum Operating Temperature | 125°C |
| Package Type | TQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 2kB |
| Standards/Approvals | RoHS |
| Pin Count | 32 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 1W |
| Minimum Supply Voltage | 1.8V |
| Device Core | AVR CPU |
| Program Memory Size | 16kB |
| Maximum Clock Frequency | 20MHz |
| Number of Programmable I/Os | 27 |
| Analogue Comparators | 1 |
| Number of Timers | 4 |
| Instruction Set Architecture | RISC |
| ADCs | 12 x 10 Bit |
| Program Memory Type | FLASH |
Key Features
- This microcontroller features an 8-bit AVR CPU core designed for efficient embedded applications.
- It has 16kB of FLASH program memory with 2kB SRAM and 256 bytes EEPROM for data storage.
- The device supports a maximum clock frequency of 20MHz for high performance.
- Operating voltage ranges between 1.8V to 5.5V, suitable for a variety of power conditions.
- Includes 27 programmable I/O pins supporting flexible interfacing options.
- The package type is TQFP with 32 pins, ideal for surface mount technology assembly.
- This model provides one analogue comparator and twelve 10-bit ADC channels for precise analog measurements.
- Designed with four timers and advanced peripherals including an event system and hardware multiplier.
Product Description
Microchip ATMEGA1608-AF is a high-performance 8-bit AVR microcontroller based on the AVR CPU architecture, optimized for embedded control solutions. It features a clock speed of up to 20 MHz and includes 16kB of FLASH program memory, 2kB of SRAM, and 256 bytes of EEPROM, suitable for complex application requirements.
Packaged in a 32-pin TQFP surface mount form factor, this microcontroller integrates 27 programmable input/output pins for versatile interfacing with external devices and sensors. It supports an operating voltage range from 1.8V to 5.5V, making it adaptable to different power supply environments.
The device includes key hardware peripherals such as a hardware multiplier, event system, and intelligent analog with one analogue comparator and 12 channels of 10-bit analog-to-digital converters (ADCs), facilitating efficient signal processing and control tasks. It offers four timers and a reduced instruction set computing (RISC) architecture for fast and efficient operation.
The ATMEGA1608-AF microcontroller complies with RoHS directives ensuring environmentally responsible manufacturing. Operating temperature specifications range from -40°C to 125°C, ensuring suitability for industrial, automotive, and general-purpose applications requiring robust temperature tolerance.
This 8-bit AVR CPU microcontroller provides up to 20 MHz clock frequency for responsive processing. 16kB FLASH memory with 2kB SRAM and 256 bytes EEPROM supports complex firmware and data storage. 32-pin TQFP package allows compact PCB designs suitable for surface mount technology.
Operates at supply voltages between 1.8V and 5.5V for flexible power management. Includes an event system and hardware multiplier for enhanced functionality and efficiency. Features 27 programmable I/O pins to accommodate various external device connections.
Equipped with one analogue comparator and twelve 10-bit ADC channels for precise sensing. Four onboard timers facilitate timing and counting functions in embedded applications. Robust operating temperature range of -40°C to 125°C offers reliability in harsh environments.
RoHS compliant, ensuring environmental safety and compatibility.
This microcontroller is ideal for industrial automation, consumer electronics, automotive control systems, and advanced embedded applications. For engineers and developers, the ATMEGA1608-AF offers a balance of performance, power efficiency, and connectivity options aligned with advanced microcontroller requirements.
