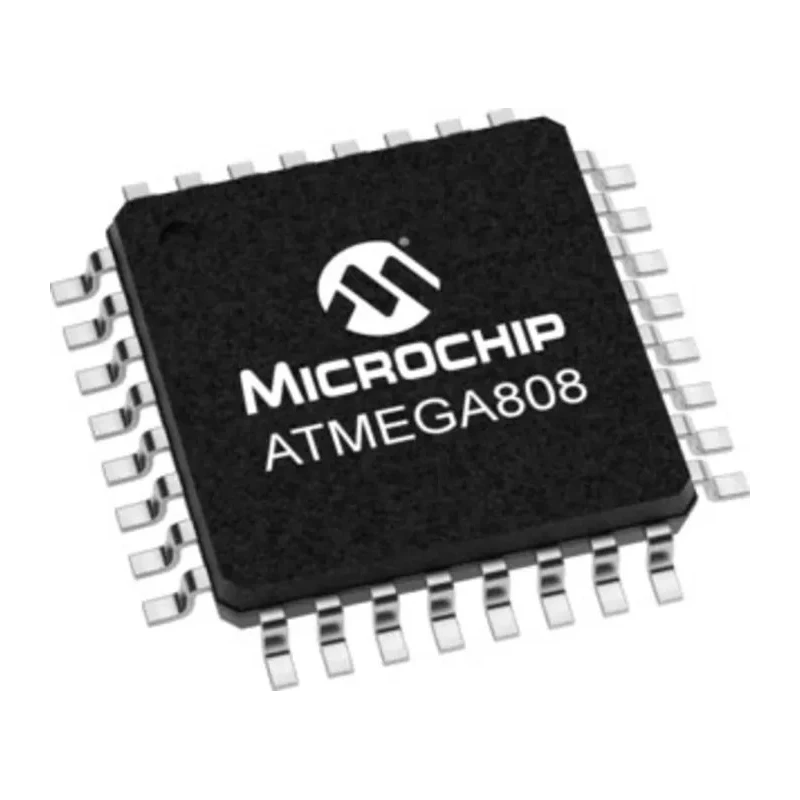

Microchip 8 bit AVR CPU Microcontroller 32-Pin VQFN 20 MHz 8kB FLASH ATMEGA808-MF
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 900μm |
| Length | 5mm |
| Model | ATMEGA808-MF |
| Width | 5mm |
| Mount Type | Surface |
| Series | ATMEGA1608 |
| Maximum Operating Temperature | 125°C |
| Package Type | VQFN |
| Minimum Operating Temperature | -40°C |
| Ram size | 1kB |
| Standards/Approvals | RoHS |
| Pin Count | 32 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 6V |
| Maximum Power Dissipation Pd | 1W |
| Minimum Supply Voltage | 1.8V |
| Device Core | AVR CPU |
| Program Memory Size | 8kB |
| Maximum Clock Frequency | 20MHz |
| Number of Programmable I/Os | 27 |
| Analogue Comparators | 1 |
| Number of Timers | 4 |
| Instruction Set Architecture | RISC |
| ADCs | 12 x 10 Bit |
| Program Memory Type | FLASH |
Key Features
- Operates with an 8-bit AVR CPU architecture.
- Contains 8kB of program memory using FLASH type memory.
- Runs at a maximum clock frequency of 20 MHz for efficient processing.
- Includes 1kB of RAM and 256 bytes of EEPROM for versatile data storage.
- Supports 27 programmable input/output pins for flexible interfacing.
- Functions over a voltage range from 1.8V to 6V supply voltage.
- Features 4 timers and 12-channel 10-bit ADC for precise control and measurement.
- Operates reliably between -40°C to 125°C for industrial and automotive environments.
Product Description
Microchip ATMEGA808-MF is a high-performance 8-bit AVR CPU microcontroller designed to deliver efficient embedded processing at up to 20 MHz. Featuring 8kB of FLASH program memory and 1kB of SRAM, it supports applications requiring moderate code and data storage. The device is equipped with 27 programmable I/O pins, 4 timers, and 12 channels of 10-bit ADCs, allowing versatile peripheral integration suitable for a wide range of industrial, automotive, and consumer applications.
This microcontroller comes in a compact 32-pin VQFN surface-mount package measuring 5mm in length and width with a height of 900µm, enabling space-saving PCB designs. Operating voltage ranges from 1.8V to 6V, with power dissipation capped at 1W, making it suitable for low-power embedded systems.
The ATMEGA808-MF is compliant with RoHS standards, ensuring environmental safety, and adheres to the AEC-Q100 automotive standard, providing robustness in harsh automotive environments. It operates reliably within a wide temperature range from -40°C to 125°C.
8-bit AVR CPU architecture with hardware multiplier for fast arithmetic processing. 8kB FLASH program memory with 1kB RAM and 256 bytes EEPROM for flexible data handling. Maximum clock frequency of 20 MHz for high-speed operation.
27 programmable I/O pins for diverse interfacing options. Surface mount VQFN package for compact device footprint. Supports 4 timers and 12-channel 10-bit ADC for precise timing and analog inputs. Operating voltage range from 1.8V to 6V suitable for battery and industrial power sources.
Meets RoHS compliance and automotive AEC-Q100 standards. Designed for applications in industrial automation, automotive control systems, and embedded consumer electronics. Explore EnvMart’s extensive catalog for more semiconductor Microcontrollers and advanced embedded processing solutions from Microchip and other leading brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The ATMEGA808-MF operates at a maximum clock frequency of 20 MHz, allowing for efficient processing in embedded applications.
This model features 8kB of FLASH program memory, providing ample storage for code in various applications.
It includes 27 programmable input/output pins, enabling flexible interfacing with other devices and peripherals.
The operating voltage range for the ATMEGA808-MF is from 1.8V to 6V, making it suitable for various power supply configurations.
This microcontroller comes in a 32-pin VQFN package with dimensions of 5mm in length and width, and a height of 900μm.
The ATMEGA808-MF operates reliably within a temperature range of -40°C to 125°C, suitable for industrial and automotive environments.
This microcontroller is designed for applications in industrial automation, automotive control systems, and embedded consumer electronics.
It meets RoHS compliance and adheres to the AEC-Q100 automotive standard, ensuring suitability for various applications.
The maximum power dissipation for this model is capped at 1W, making it suitable for low-power embedded systems.
This microcontroller features an 8-bit AVR CPU architecture, which includes a hardware multiplier for fast arithmetic processing.
