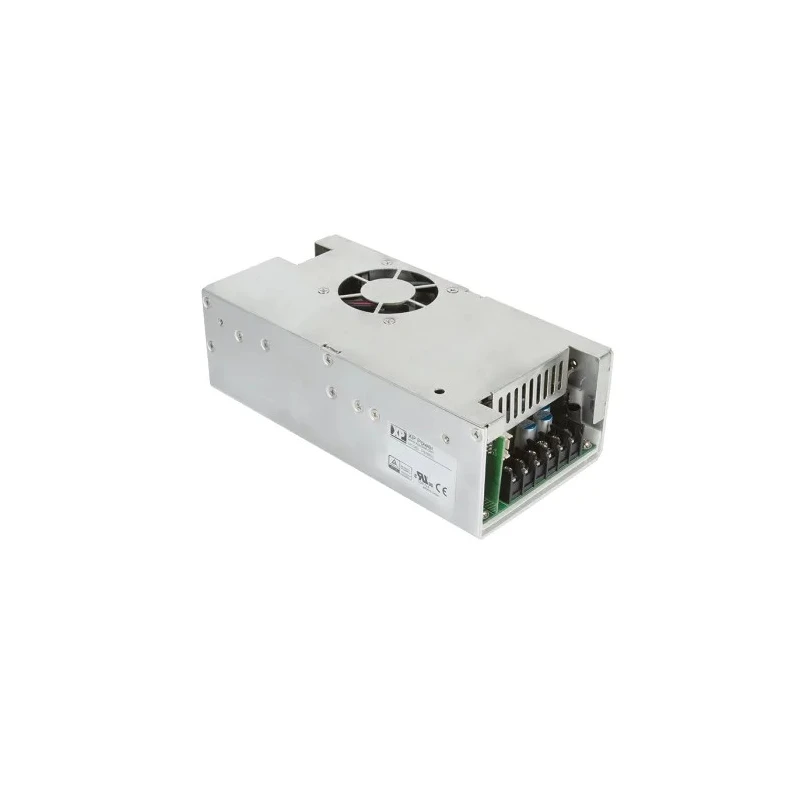

XP Power 650W 24V DC Chassis Mount Switching Power Supply PBR650PS24C

Free Delivery in India | Lowest Global Shipping Charges

XP Power 650W 24V DC Chassis Mount Switching Power Supply PBR650PS24C

Name: XP Power 650W 24V DC Chassis Mount Switching Power Supply PBR650PS24C
Brand: XP Power
SKU: 421263
Price: 20.22 USD
Availability: InStock



Category Electronic Components, Power & Connectors Brand XP Power Condition New

Specifications

Country of Origin	India
Brand	XP Power
Power	650W
Efficiency	90%
Length	203.2mm
Model	PBR650PS24C
Depth	65.5mm
Gross Weight	2kg
Width	101.6mm
Mount Type	Chassis
Series	PBR650
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-10°C
Number of outputs	1
Maximum Input Voltage	264V ac
Maximum Output Voltage	24V dc
SMPS Output Current	30A
Minimum Input Voltage	80V ac

Key Features

Compact chassis mount design measuring 203.2mm x 101.6mm x 65.5mm.
Operating temperature range from -10°C to 70°C for reliable performance.
High efficiency of 90% to reduce energy consumption.
Single output channel providing 30A current capacity.
Designed with medical safety approvals including BF rated insulation.
Wide input voltage range from 80V AC to 264V AC for versatile use.
Includes features such as 5V standby and 12V fan supply for system support.
Meets multiple international standards including EN 60601-1 and UL 62368-1.

Product Description

XP Power PBR650PS24C is a high-performance 650W switching power supply designed for use in medical and industrial applications requiring reliable DC power.

This chassis mount unit delivers a maximum output voltage of 24V DC with a stable output current of 30A. It features a compact form factor measuring 203.2mm in length, 101.6mm wide, and 65.5mm deep, making it suitable for various equipment installations.

Operating over a wide temperature range of -10°C to 70°C, the PBR650PS24C ensures dependable operation under challenging conditions. The device achieves an efficiency of 90%, reducing energy losses and heat generation during continuous operation.

Designed with medical applications in mind, it carries multiple safety and electromagnetic compatibility certifications including EN 60601-1, UL 62368-1, and CSA C22.2 No. 62368-1. The power supply includes BF rated insulation suitable for medical equipment and supports operation at altitudes up to 5000 meters.

Additional functionalities such as 5V standby power output, 12V fan supply, AC OK signaling, inhibit control, and remote sense enhance integration flexibility and system monitoring.

This power supply meets Class B conducted and radiated emissions, making it compliant with strict electromagnetic interference (EMI) standards. These features collectively make the PBR650PS24C ideal for medical, laboratory, industrial, and other commercial applications requiring robust switching power solutions.

Compact chassis mount form factor for easy installation. High output power of 650W at 24V DC for demanding loads. Wide operating temperature range for versatile environmental use. Medical safety approvals including BF rated insulation.

Multiple international standards compliance for safety and EMI. Integrated features for system control and monitoring. Efficient operation contributing to energy savings. Discover more power supplies and transformers from XP Power and explore industrial-grade switching power products at EnvMart for your specific application needs.
