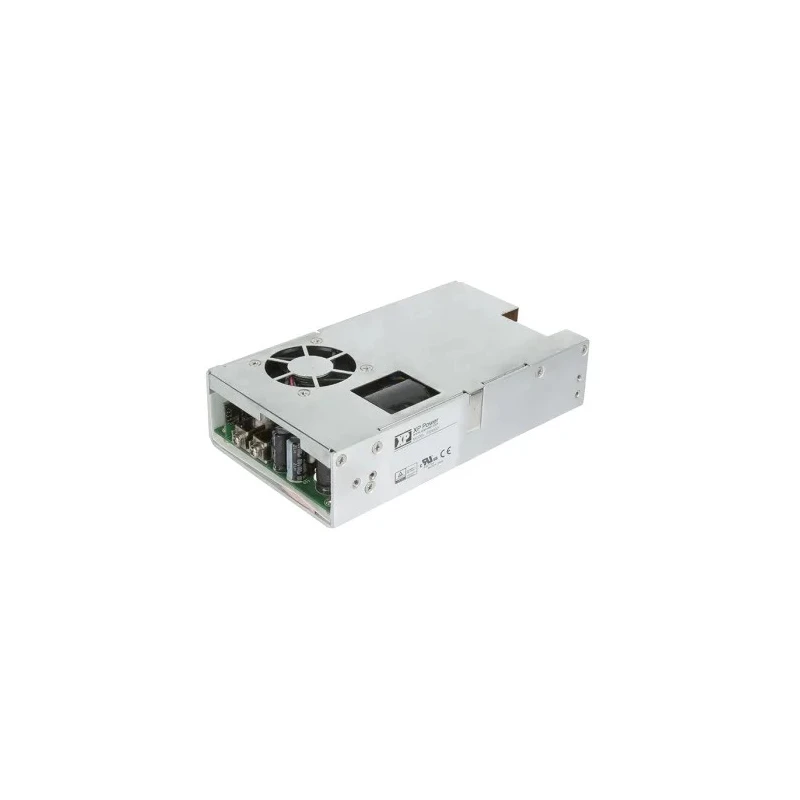

XP Power 24V dc 500W Chassis Mount Switching Power Supply PBR500PS24C

Free Delivery in India | Lowest Global Shipping Charges

XP Power 24V dc 500W Chassis Mount Switching Power Supply PBR500PS24C

Name: XP Power 24V dc 500W Chassis Mount Switching Power Supply PBR500PS24C
Brand: XP Power
SKU: 421258
Price: 20.22 USD
Availability: InStock



Category Electronic Components, Power & Connectors Brand XP Power Condition New

Specifications

Country of Origin	India
Brand	XP Power
Power	500W
Efficiency	90%
Length	177.8mm
Model	PBR500PS24C
Depth	43.2mm
Gross Weight	1.1kg
Width	101.6mm
Mount Type	Chassis
Series	PBR500
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-10°C
Number of outputs	1
Maximum Input Voltage	264V ac
Maximum Output Voltage	24V dc
SMPS Output Current	20.84A
Minimum Input Voltage	80V ac

Key Features

Supports a maximum input voltage of 264V AC with a minimum of 80V AC.
Output current rated at 20.84A ensuring stable power delivery.
Operates efficiently at 90% efficiency rating.
Designed to function within -10°C to 70°C operating temperature range.
Compact chassis design measuring 177.8mm length, 101.6mm width, and 43.2mm depth.
Weighing approximately 1.1 kg for easy installation.
Meets multiple safety and industrial standards including EN 62368-1, IEC 60601-1, and UL 62368-1.
Suitable for industrial, medical, and IT equipment applications.

Product Description

XP Power PBR500PS24C Switching Power Supply is a robust chassis mount unit providing 24V dc output power rated at 500W, designed for high-reliability industrial and medical environments. Its compact form factor of 177.8mm by 101.6mm by 43.2mm houses a high-efficiency power conversion with a 90% efficiency rating, ensuring minimal energy losses.

The power supply is engineered to operate across a wide temperature range of -10°C to 70°C and supports input voltages ranging from 80V ac to a maximum 264V ac, making it viable for diverse electrical installations. This unit delivers a stable output current of 20.84A and features chassis mounting for secure installation in equipment racks or systems.

Designed with a U-Channel mechanical support and heat sinking, the PBR500PS24C provides enhanced thermal management options including forced air cooling for full 500W output or convection cooling supporting 350-400W. It complies with stringent international safety standards such as EN 62368-1, IEC 60601-1, UL 62368-1, and CSA certifications, suitable for both IT equipment and BF rated medical applications.

The power supply includes additional functionalities like 5V standby output and 12V fan supply outputs, alongside status indicators such as AC OK, Inhibit, and Remote Sense, allowing integration into sophisticated systems.

Weighing 1.1 kg, this power supply balances compactness and durability with precise electrical performance. It is ideal for use in industrial automation, laboratory setups, medical devices, and information technology sectors requiring reliable and certified power sources.

Supports 450-500W continuous power with forced air cooling or 350-400W with convection cooling. Meets ITE and medical safety approvals including BF rated insulation. Compact U-Channel mechanical structure with heat sinking.

Includes protective features such as AC OK and inhibit control signals. Designed for operation at altitudes up to 5000 meters. Browse more high-quality switching power supplies from XP Power and other brands at EnvMart for reliable industrial and medical power solutions.
