XP Power Industrial Chassis Mount Switching Power Supply 12V DC 37.5A 177.8x101.6x43.2mm PBR500PS12C

Free Delivery in India | Lowest Global Shipping Charges

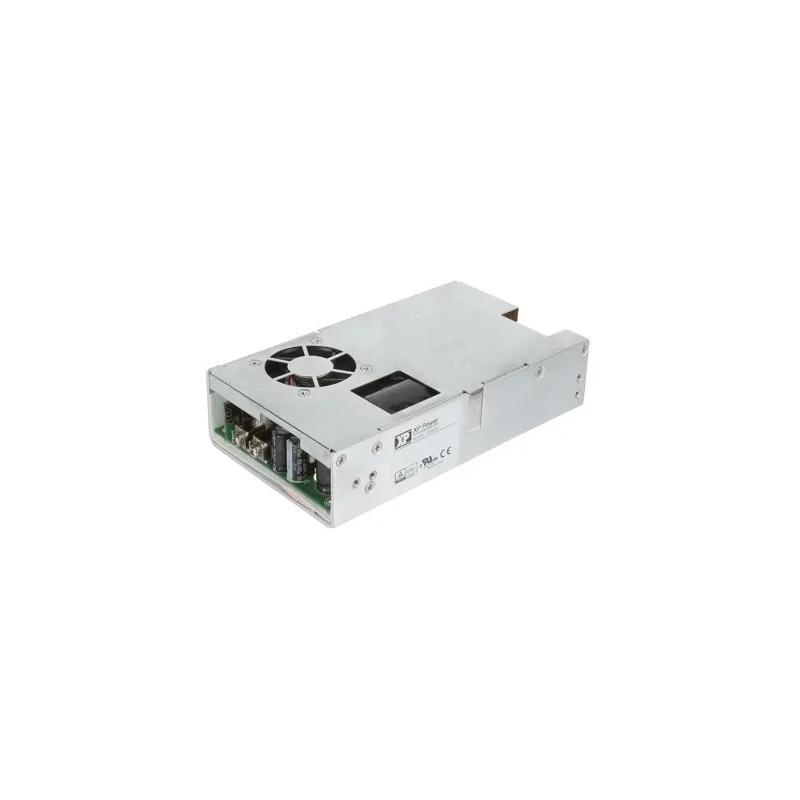

XP Power Industrial Chassis Mount Switching Power Supply 12V DC 37.5A 177.8x101.6x43.2mm PBR500PS12C

Name: XP Power Industrial Chassis Mount Switching Power Supply 12V DC 37.5A 177.8x101.6x43.2mm PBR500PS12C
Brand: XP Power
SKU: 421254
Price: 20.22 USD
Availability: InStock



Category Electronic Components, Power & Connectors Brand XP Power Condition New

Specifications

Country of Origin	India
Brand	XP Power
Efficiency	90%
Length	177.8mm
Model	PBR500PS12C
Depth	43.2mm
Gross Weight	1.1kg
Width	101.6mm
Mount Type	Chassis
Series	PBR500
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-10°C
Number of outputs	1
Maximum Input Voltage	264V ac
Maximum Output Voltage	12V dc
SMPS Output Current	37.5A
Minimum Input Voltage	80V ac

Key Features

Delivers 450-500W continuous power with forced air cooling.
Supports convection cooling with 350-400W continuous power output.
Designed for ITE, industrial, and medical BF rated insulation applications.
Operating temperature range from -10°C to 70°C ensures wide environmental adaptability.
Constructed on a U-Channel base for mechanical support and optimal heat sinking.
Includes 5V standby and 12V fan power supply features for system management.
Compliance with CSA, EN, IEC, UL standards for safety and emissions.
High efficiency of 90% reduces energy loss during operation.

Product Description

XP Power PBR500PS12C is a high-performance chassis mount switching power supply engineered for demanding industrial, medical, and information technology equipment applications. Offering a maximum output voltage of 12V DC at 37.5A, it supports continuous power outputs between 450 and 500 watts under forced air cooling conditions, and 350 to 400 watts with convection cooling. The compact U-Channel design (177.8 mm x 101.6 mm x 43.2 mm) provides robust mechanical support and effective heat dissipation for reliable operation.

Built to meet rigorous safety standards including CSA C22.2 No. 62368-1, EN 62368-1, IEC 60601-1, and UL 62368-1, this power supply ensures safe usage in both medical and industrial environments with BF rated insulation. It features a broad operating temperature range from -10°C to 70°C, enabling dependable function in harsh environments and altitudes up to 5000 meters.

The PBR500 series includes integrated 5V standby and 12V fan supplies, AC OK signal, inhibit control, and remote sense capabilities to meet advanced power management needs. Input voltage flexibility from 80V to 264V AC supports global power sources with 90% efficiency for energy savings.

Delivers up to 500 watts continuous power with forced air cooling. Supports 350 to 400 watts under convection cooling. Compact U-Channel chassis mount form factor. BF rated insulation for medical safety requirements. Wide input voltage range of 80 to 264 volts AC.

High operating temperature tolerance from -10°C to 70°C. Complies with multiple international safety standards. Equipped with remote sensing and fan power supplies. Compact dimensions suitable for limited space installations.

Suitable for industrial, laboratory, medical, and IT equipment use.

This power supply is ideal for applications requiring robust, efficient, and certified DC power delivery in compact form factors. Explore the XP Power product range on EnvMart for reliable power solutions tailored for industrial and medical systems.
