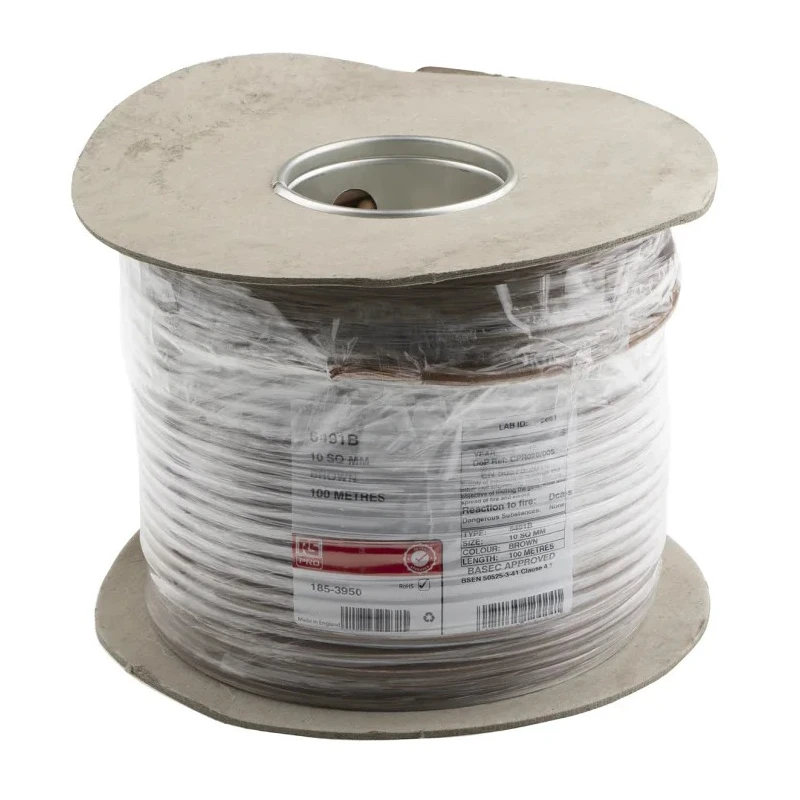

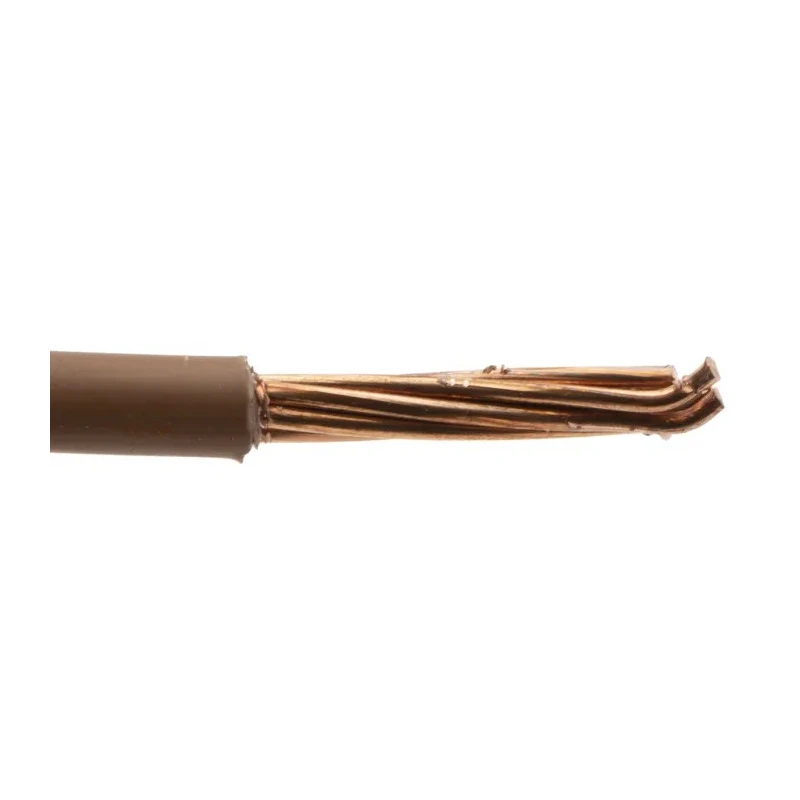

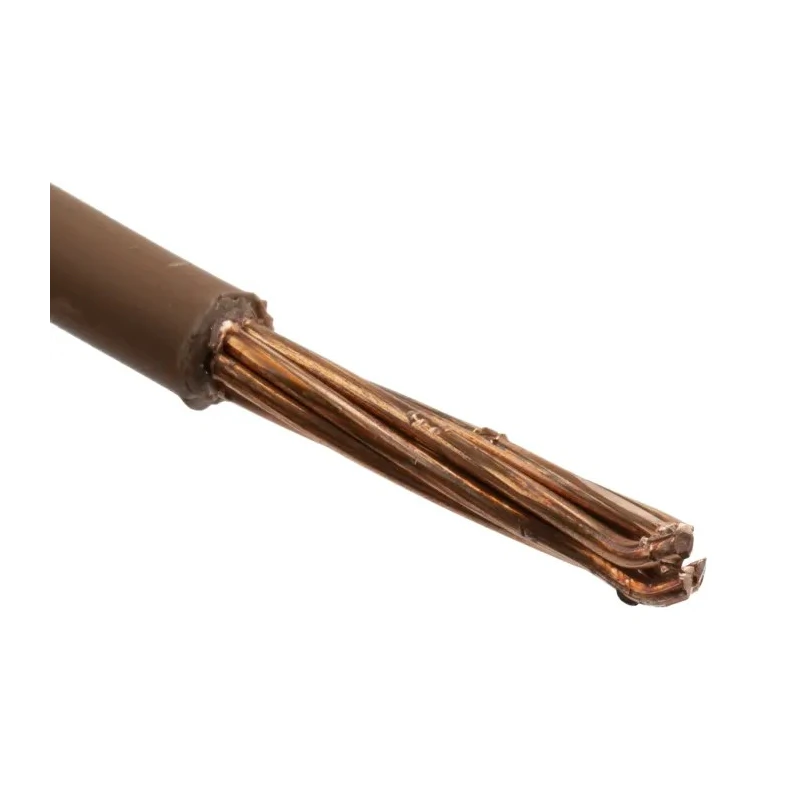

RS PRO 6491B Series Brown Hook Up Wire 7/1.35 mm Core Strands 100 m Low Smoke Non-Halogen 450V DC 750V AC 90°C 185-3950
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Voltage | 450, 750V dc |
| Brand | RS PRO |
| Model | 185-3950 |
| Cable Length | 100m |
| Series | 6491B |
| Outside diameter | 7mm |
| Maximum Operating Temperature | 90°C |
| Conductor Material | Copper |
| Cable Type | Conduit |
| Minimum Operating Temperature | -15°C |
| Jacket Material | Low Smoke Non-Halogen |
| Jacket Colour | Brown |
| Fire Behaviour | Thermosetting insulation, Low Smoke Non-Halogen (LSNH), Designed for Low Smoke and acid gas emission |
| Number of Strands | 7 |
| Core Strands | 7 x 1.35mm |
| Size of Strands | 1.35mm |
| Insulation Wall Thickness | 1mm |
| Standards/ApprovalsBS EN 50525-3-41 | 2011 Clause 4.1 |
| BS EN 50525-3-41 | 2011 |
Key Features
- Conductor material is high quality copper for excellent conductivity.
- Jacket colour is brown with low smoke non-halogen insulation for added safety.
- Suitable for voltage ratings of 450 V DC and 750 V AC.
- Maximum operating temperature of 90°C and minimum of -15°C for versatile use.
- 7 strands each of 1.35 mm size to provide flexibility and strength.
- Cable length of 100 meters suitable for extended installations.
- Designed for use in surface mounted or embedded conduits or similar closed systems.
- Thermosetting insulation improves fire resistance and minimises toxic emissions.
Product Description
RS PRO 185-3950 Brown Hook Up Wire is a single core conduit cable measuring 7 mm in outside diameter, with 7 strands of 1.35 mm copper conductor wire. This 100 meter length low smoke non-halogen insulated wire is rated for voltages up to 450 V DC and 750 V AC and operates safely in temperature ranges from -15°C to 90°C.
Equipped with thermosetting insulation, this LSNH cable is designed to reduce harmful smoke and acid gas emissions during fire incidents, providing enhanced safety in electrical installations.
The brown jacketed cable meets stringent BS EN 50525-3-41:2011 Clause 4.1 standards, assuring conformity with electrical safety and performance requirements.
This hook up wire is suitable for fixed wiring in surface mount or embedded conduits, particularly in applications requiring enhanced fire safety such as switchgear, control gear, and fixed protection installations.
This cable features a plain annealed copper conductor for effective electrical conductivity and mechanical strength. The insulation thickness of 1 mm further protects against environmental and mechanical damage.
Conductor material is copper ensuring reliable electrical performance. Jacket material is low smoke non-halogen thermosetting insulation improving fire safety. Operating temperature ranges from -15°C minimum to 90°C maximum.
Voltage rating is 450 V DC and 750 V AC suitable for various electrical installation requirements. Cable length is 100 meters allowing medium to large scale wiring projects. Outside diameter is 7 mm with 7 strands of 1.35 mm size for flexibility and strength.
Complies with BS EN 50525-3-41:2011 standards for electrical cable safety and quality. Ideal for surface mount and embedded conduit installations. Low smoke non-halogen cable reduces hazardous emissions in case of fire.
This RS PRO Hook Up Wire is manufactured in the United Kingdom and is supplied new, ensuring high quality and reliability for industrial, commercial, and residential electrical wiring applications.
Explore the Electronics & Electricals category on EnvMart for reliable cables and wires from trusted brands including RS PRO.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating of this model is 750V AC and 450V DC.
It operates safely within a temperature range of -15°C to 90°C.
This wire is 100 meters long, suitable for medium to large scale wiring projects.
The conductor is made of high-quality copper, ensuring effective electrical conductivity and mechanical strength.
It features low smoke non-halogen thermosetting insulation, which improves fire safety and reduces harmful emissions during fire incidents.
The outside diameter of this wire is 7 mm.
This wire consists of 7 strands, each measuring 1.35 mm in size.
It complies with the BS EN 50525-3-41:2011 standards, ensuring safety and performance requirements for electrical cables.
This model is suitable for fixed wiring in surface mount or embedded conduits, particularly in applications requiring enhanced fire safety.
The insulation wall thickness is 1 mm, providing protection against environmental and mechanical damage.
This wire is manufactured in the United Kingdom, ensuring high quality and reliability.
It is designed with thermosetting insulation for low smoke and acid gas emission, enhancing fire safety during electrical installations.
